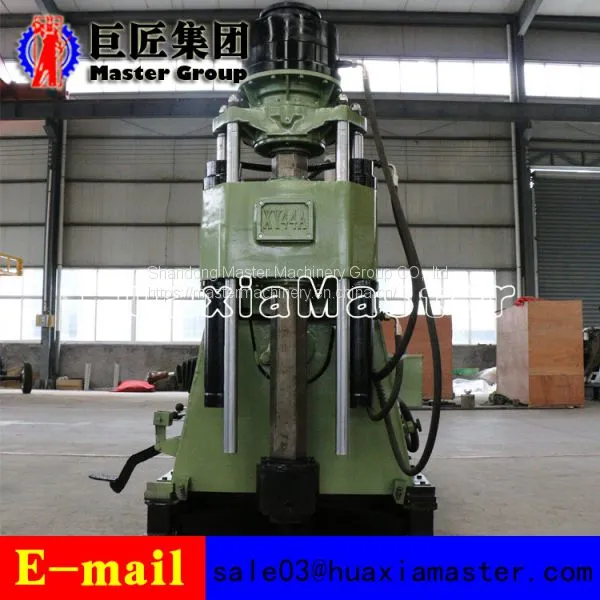

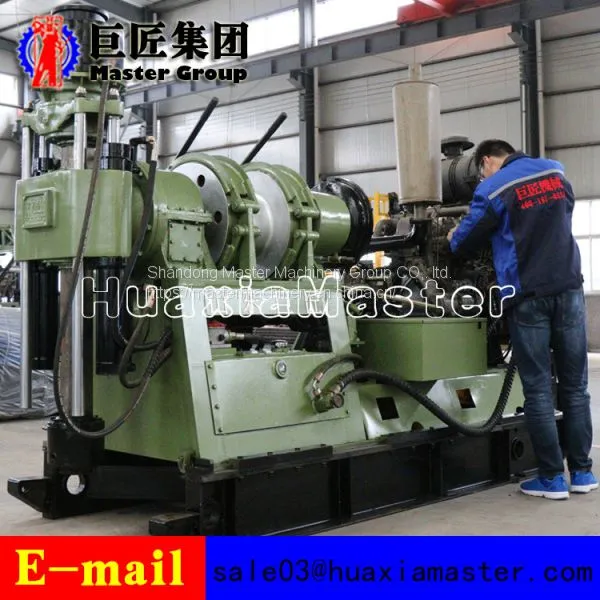

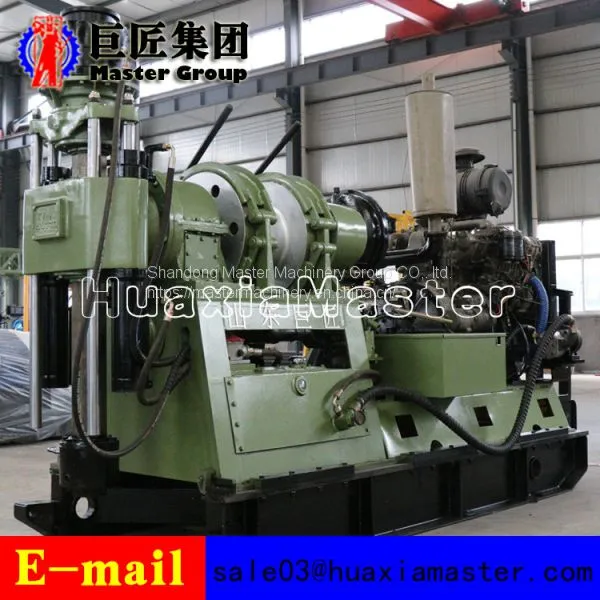

1.The brief introduction of XY-44Awell drilling rig
XY-44A water well drilling rig is a multi-purpose spindle diamond drilling rig suitable for high-speed medium and deep borehole drilling in complex rock formation. core drilling rigs covers all the main foundation and drilling technologies with a range of models whose characteristics, capability and performance find application in every operating condition.
Application: domestic water well,field irrigation well, engineering water well,precipitation well and so on; core Drilling, engineering geology exploration, hydrology as well as Large Diameter Foundation Piles Construction
1. The technical parameter of XY-44Awell drilling machine
XY-44Adrilling machine | |
Drilling depth |
600-1400m |
Max open hole caliber |
300mm |
End hole caliber |
75mm |
Drilling Rod diameter |
60mm |
Drilling angle |
90°~65° |
Drill rig moving stroke |
450mm |
Spindle | |
spindle speed ( Diesel Engine) |
Forward 60 97 169 187 276 301 284 487 521 847 1180 1490r/min |
Reverse 65 201r/min | |
spindle speed ( Electric Motor) |
Forward 50 81 141 155 230 251 320 406 434 706 984 1247r/min |
Reverse 54 167r/min | |
Spindle stroke |
600mm |
Spindle max. pressure force |
90KN |
Spindle inner diameter |
96mm |
Lifting capacity |
120KN |
Main Hoist | |
Max.Single line lifting capacity |
45KN |
Max.Single line lifting speed |
0-45m/s |
Wirerope caliber |
17.5-18.5mm |
Hoist capacity of wireline |
90-110m |
Roller Diameter |
140mm |
Wirerope Diameter |
6mm |
Wirerope length |
450m |
Mud pump | |
Type |
BW-250 |
Displacement |
250 L/min |
Work pressure |
80kg/cm² |
Water inlet pipe diameter |
75 mm |
Water outlet pipe diameter |
50 mm |
Power | |
Diesel engine |
YC4E135-1 100KW |
Electric motor |
Y225S-4 37KW |
