Help CenterQZ-2B Gasoline Engine Drilling Machine Portable Core Sampling Drill
Related Products
-
QTZ-3 High Efficiency Portable Soil Drilling Rig Drilling MachineUS$ 4000 - 6000MOQ: 1 Set -
1500W Small Portable Electric Drilling Rig Machine for SaleUS$ 4000 - 6000MOQ: 1 Set
-
China High Efficiency 4KW Electric Water Well Drilling Machine for SaleUS$ 4000 - 6000MOQ: 1 Set
-
Drilling Rig Machine for Water With Gasoline Engine for SaleUS$ 4000 - 6000MOQ: 1 Set
-
China High Quality XY-8 Hydraulic Coring Drilling Rig Large Diameter Well DrillUS$ 4000 - 6000MOQ: 1 Set

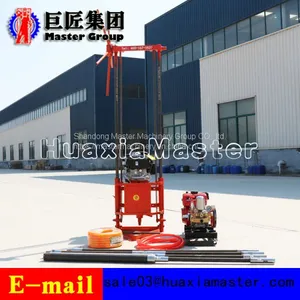

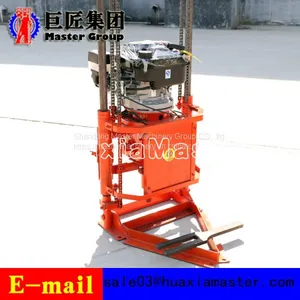

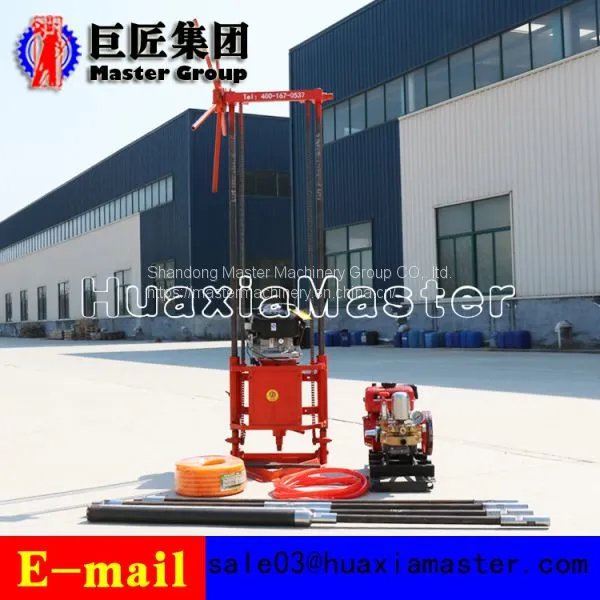

1.Brief introduction of portable sampling drill rig for QZ-2B gasoline engine
QZ-2B type gasoline engine portable sampling drill produced by Shandong Master Machinery Group Co.,Ltd suit for geological industrial and civil buildings, bridges, railway, highway, hydropower industry survey, geophysical exploration, advanced drilling and grouting hole drilling, embedded hole guiding, broken hole, hole, check out small household wells.
QZ-2B drilling rig feature: compact structure、small volume、light weight、two gears、easy move.
2.QZ-2B gasoline core drilling rig parameter
QZ-2B | ||
End hole caliber (mm) |
32-91 |
|
|
Drilling depth（m） |
soil φ91：10-15m tone φ91：5-10m stone φ75：10-15m stone φ60：15-20m stone φ46：20-25m |
|
Diameter of drill rod(mm) |
30 |
|
Rotating speed（r/min） |
200-570 |
|
Torque（n.m） |
110 |
|
Gasoline engine |
Soup(hp） |
5 (3.5kw) |
Displacement（cc） |
196 |
|
Dimension（l*w*h） |
600*450*1900 |
|
Weight（kg） |
90 |
|
3.The packing list of QZ-2B portable sampling drilling machine with gasoline engine
Name |
Model |
Unit |
Quantity |
Gasoline core drilling rig |
QZ-2B |
set |
1 |
Drill rod |
φ28*1500 |
root |
6 |
Drill rod |
φ28*800 |
root |
8 |
Pipe joint |
Φ35 |
pcs |
14 |
Core tube joint |
φ45/35 |
pcs |
1 |
Core tube |
φ45*800 |
root |
1 |

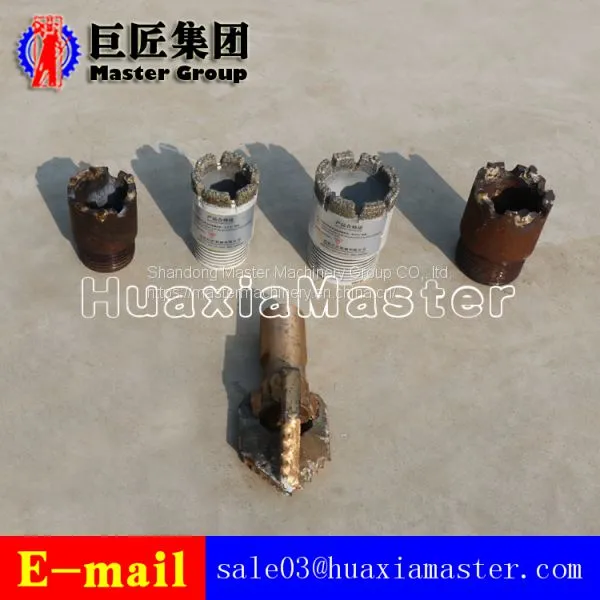

Alloy bit |
φ46 |
pcs |
1 |
Core tube joint |
φ58/35 |
pcs |
1 |
Core tube |
φ58*800 |
root |
1 |
Alloy bit |
φ60 |
pcs |
1 |
Soil bit |
Φ60 |
pcs |
1 |
Plate fork |
hold |
1 |
|
Water seal type |
30*50*10 |
pcs |
4 |
Oil seal |
30*50*10 |
||
Oil seal |
17*50*10 |
||
Steering wheel |
pcs |
1 |

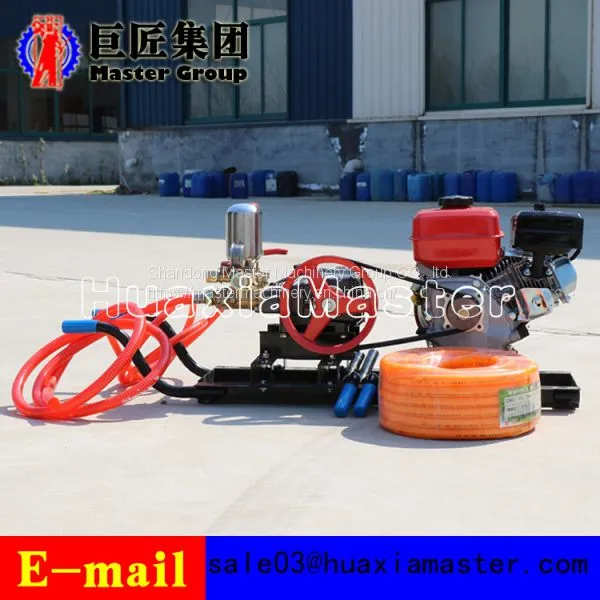

（If you need a wooden base, a high pressure pump, and a high pressure water pipe, please explain）
