superior quality wifi MT7620A poe access point ap 300Mbps 2.4GHz Hotel Enterprise Mount In Wall Wireless Access Wifi AP Router
What this product does?
The A10 Series product is the latest generation wall plate WI-FI access point (AP) which can be installed in any 86mm wall plate without breaking the existing decorations and is easily managed. It is well suited to university dormitories, hospitals wards, hotel rooms and other sites with densely divided rooms. It helps mitigate signal quality problems caused by traditional AP deployment in such sites, and greatly reduces capital expense and operation expenses in running these sites.
1, Connect it to the mains supply AC110~380V without any extra power adapters.
2, With a world top built-in antenna, it has super signals, wider coverage and stronger penetration.
3, With 5V 1500mA USB power output, it can provide fast charging for the vast majority of devices, like mobile phones and tablet PCs.
4, It supports LAN port output, optional for either wired or wireless networks.
5, It supports accessibility to 3G cards, compatible with major 3G cards.
6, Its USB port is available for plug-in of flash disks, mobile hard disks for data sharing.
7, The hardware design of a WPS/WIFI switch facilitates password protection and on-off of WIFI signals.
8, Its convenient relay function can extend the WIFI distance significantly and save a lot of network cables.
| Wireless Access Point | |
| Transmission standard | 802.11b/g /n |
| Frequency | 2.4GHz |
| Mode | 2T2R |
| Data rate | Up to 300Mbps PHY |
| Multiple BSSID | Up to 16 channel |
| Wi-Fi security | WEP64/128,TKIP,AES,WPA,WPA2,WAPI |
| WPS | Support(PBC,Pin) |
| WDS bridge | Support |
| Qos | WMM,WMM-PS |
| Voice enterprise | 802.11k+r |
| Network protocol | TCP/IP,UDP,HTTP,ARP,DHCP,ICMP,NAT,DNS,PPPoE,FTP |
| Wired Ethernet | |
| RJ45 Interface | WAN/LAN : 10/100 Mbps Ethernet switch |
| USB Battery charging | |
| Charge port | Up to 4 x USB charge |
| Charge current | Up to 3A total |
| Charge volt | 5V |
| Charge speed | Fast charging |
| Support device |
Universal charging to various devices : Support iPhone/iPad, Android phone, other smart mobile phone,and the other portable devices |
| Telephone line port | |
| RJ11 interface | Connect telephone line to RJ11 port |
| 3G | |
| 3G interface | Support 3G modul by usb2.0 interface |
| Storage | |
| SD card | Support SD/TF card storage up to 64GByte |
| USB storage | Support USB mass storage |
| General | |
| Power | AC 220V/110V/380V |
| Power consumption | 0~15W |
| Operating temperature | -20 to+60 ℃ |
| Storage temperature | -40 to+60 ℃ |
| Operating humidity | 20- 80%RH |
| Storage humidity | 20- 95%RH |
| Dimension | 86mm x 86mm x 42mm(L x W x H) |
Product features
Wall type WIFI router with the country's first telephone interface
The 11N 150M Wireless AP, transfer faster and more stable
Exempt hotel walls trouble playing online module
Wired and wireless integration
The most complete wireless encryption technology, with WEP, WPA-PSK, WPA2-PSK, WPA, WPA2, MAC address authentication, and other encryption / security settings to make wireless networks more secure
Support relay function, let your WIFI broader range of distances.

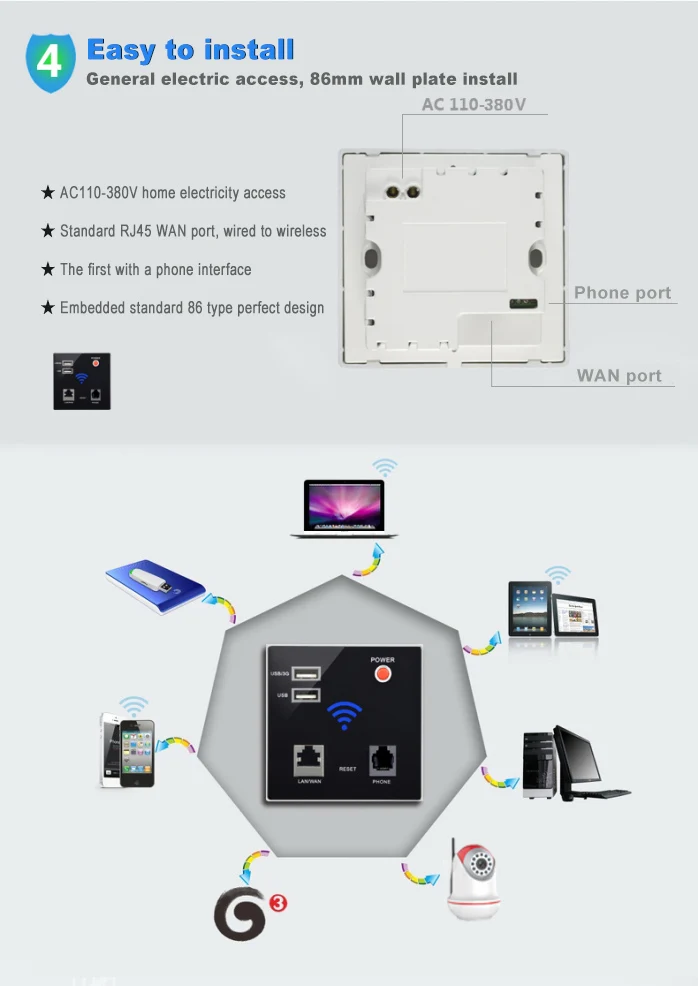

Remove the cover(Use a screwdriver to remove the cover from the panel surface)

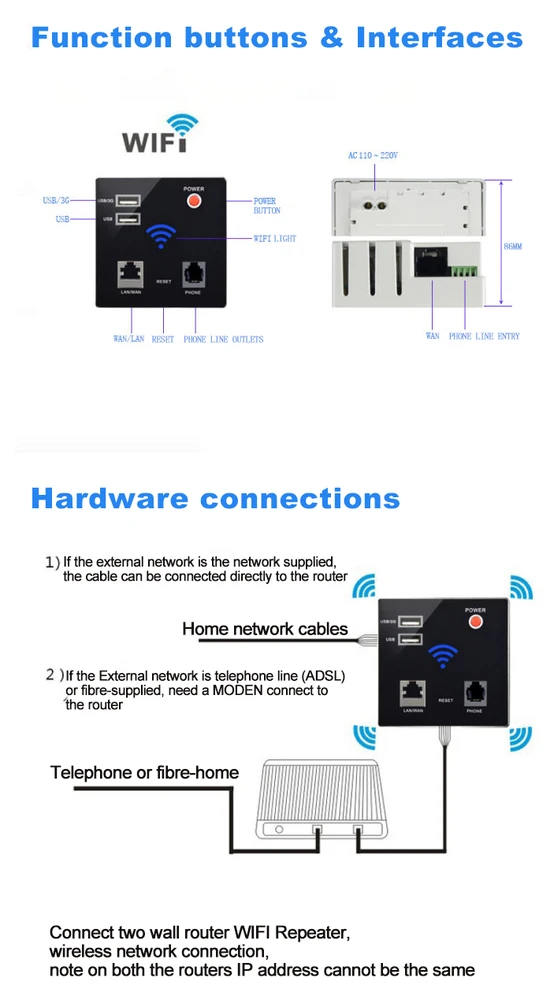

Connecting wire(The 220V wires, cables, telephone lines connected to the specified interface on the rear panel to ensure a firm connection,Connect the power off before connecting wires to connect 220V,Avoid electric shock).
Mounting screws(Remove the screws from the box, put the socket into the bottom box fixed rear panel, the panel surface cover to cover, the surface.In the bottom box to adjust the screws tighten the screw ratio.)
Install the cover(Cover snaps into the slot above the panel).
