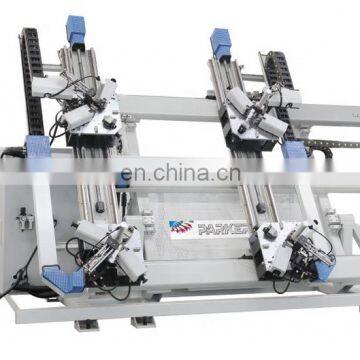

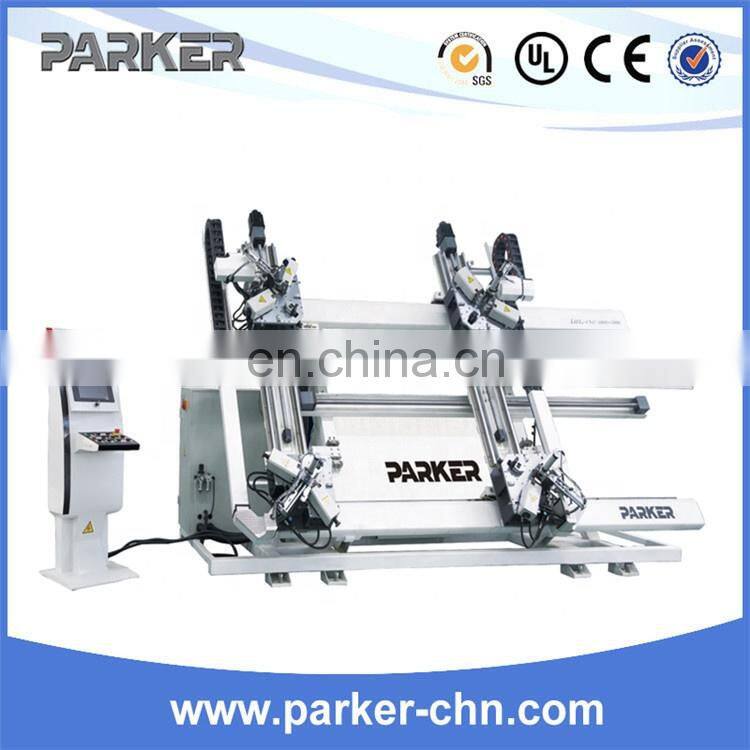

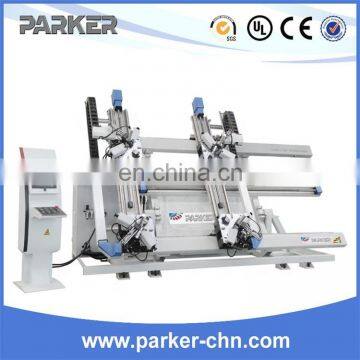

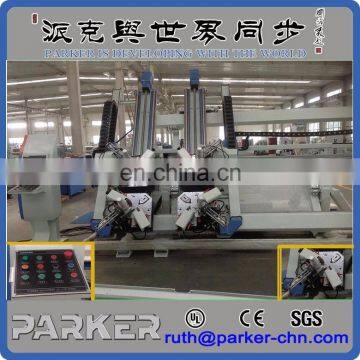

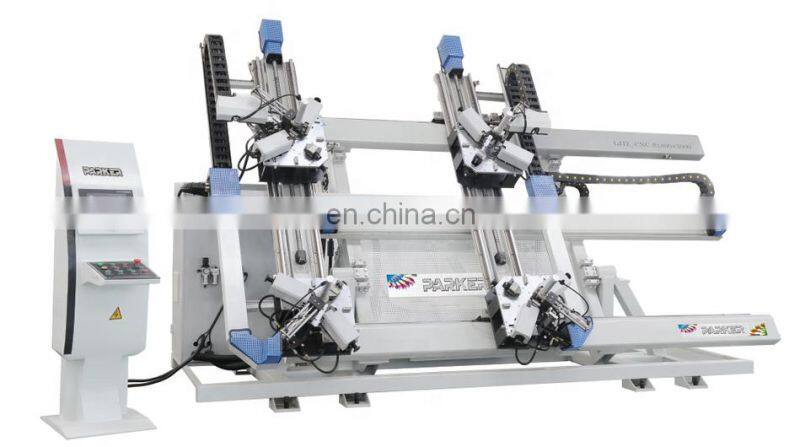

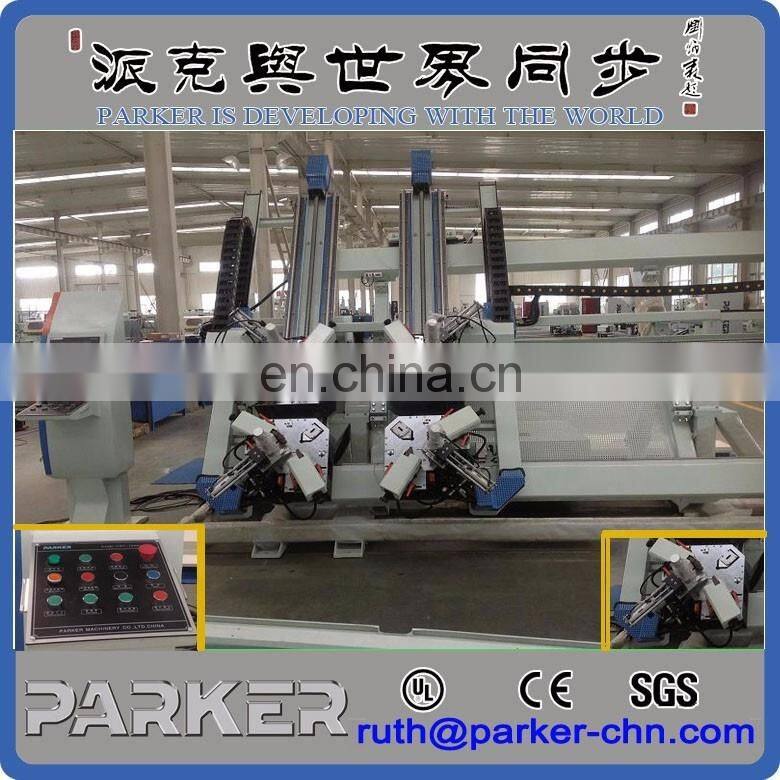

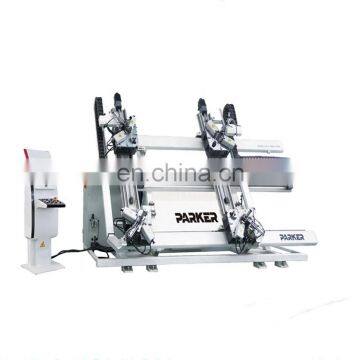

Alu-door-window Four Corner Automatic Crimping Machine

1.Fuselage of entire machine design scientific, reasonable and steadily. And it welds with square steel pipe with the thickness of 10mm and make products steady when combining the corner.

2.Adopt the plunger type large-scale hydraulic pressure station, the pressure stable, offered the pressure well and the noise is low.

3.The electrically controlled box independent laying independently. It is convenient, even more is advantageous for the crimping angle quality real-time monitoring. The transmission connection uses the aerospace special-purpose receptacle, safe and stable.

4.Adopt original installation import flat square guide rail, which can guarantee the precision of the heads when moves horizontally. Transmission adopts the original imported installation ball bearing master screw.

5.The precision is extremely high so it can guarantee group angle quality.

6.The servo controlling machines, servo motor, person-machine touching the contact surface are adopt the original imported installation of Japanese Mitsubishi system, and the increase assistance brake system. It is stable and efficiency.

7.The processing smallest scope is may reach 510x510mm, the manual mediation can realized to 500x500mm, it can suitable for all kinds of windows and doors that enterprise's processing to need.

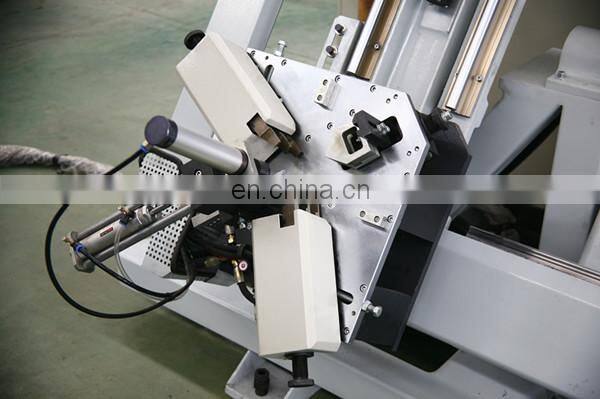

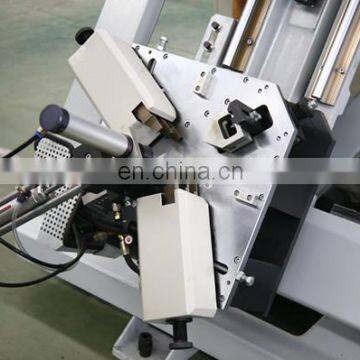

8.Used for corner punching and riveting combination of aluminum window and door four corner connecting at one time is available which greatly increased the production efficiency.

9.Clamping device can adjust forward and back, it is easy to operate.

10.Adopt CNC system can realize automatic and accurate locating thus can produce high accuracy windows.

11.Wide profile processing range due to convenient corner combining cylinder detting.

12.Suitable for various kinds high quality and high volume windows production.

One:PARKER Introduce

1.PARKER Machinery Co.,LTD was founded in 2003,since the entry into the window door curtain wall machinery manufacturing field,peck with the best team and most stringent manufacturing standards,has been committed to the global supply of machinery and the best service.Today,with more than 300 employees,PARKER Industrial Park covers an area of 70000 m^2,Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.

2.PARKER products include aluminium,PVC window and doors machinery,aluminium curtain wall processing machinery,industrial aluminium processing machinery and insulating glass series production line machinery.

3.PARKER machinery expotrs to the world more than 80 countries and regions,and has firstly established branches in USA,India,UAE,Brazil,has more than 15 patents.

4.PARKER machinery are all passed through high standard European CE certification,American UL certification and Canadian CSA certification.

5.PARKER manufacturing creates ecological management system of 9M that is unique and most proud of,and the human resources,raw materials,technology methods,environment,information etc. Have been ongoing ascension,and improves the overall quality and core competitiveness of parker.Customers around the world are actively popularize and apply it,benefit a lot from it.

6.PARKER machine core parts procurement achieved internationalization,and established a cooperative partnership with ABBA,OMRON,SCHNEIDER,OPTIMA.

7.PARKER people are always follow the core concept,it is "PARKER is developing with the world",it is PARKER peoples' strict implementation of ecological system of PAREKR and of "zero defect" stern pursuit,which makes the PARKER machine perfect implement unique global standard,achieves improvement value and sustainable innovation!

8.PARKER machinery,leads the era of intelligence,create the strategy of globalization!

9.PARKER machinery,contribution to the world culture of windows and doors!

Two:PARKER Core Concept

1,The core concept of PARKER: PARKER is developing with the world

2,Parker's mission: Making machines to be partners

3,Parker's spirit:High-quality being the aim, foresight win the world

4,Parker's strategy:Open intelligent era and create world famous brand

Three:PARKER Factory

Four:PARKER Factory Store Room

Five:PARKER Family

Six:PARKER Meeting Room

Seven:PARKER Cooperative Partner

Eight:PARKER CE Certification
