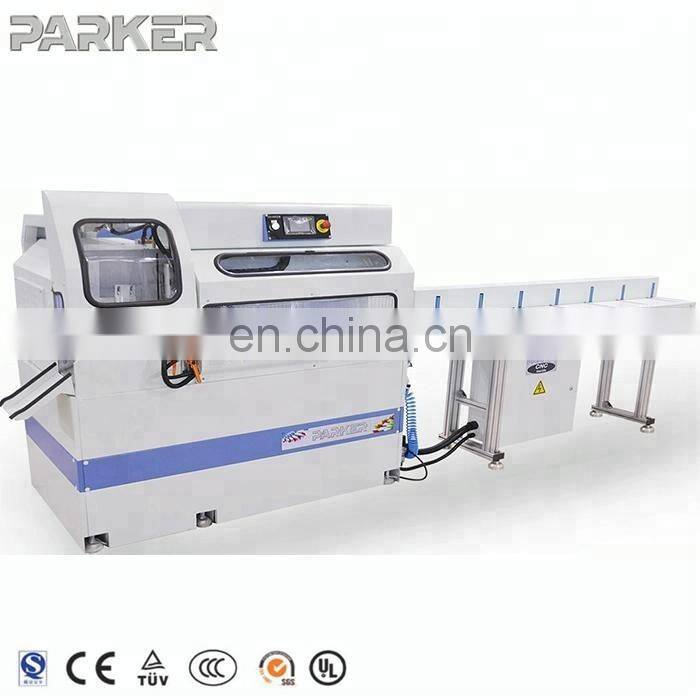

aluminum profile auto feeding corner key cutting saw
Model: LJMJ-CNC-500B
Features:
For aluminium corner key cutting.
High efficiency, high precision, for large scale produce.
Automatically cutting and counting.
When power is turned off suddenly, clamping devices keep fixing profiles to protect wokers and machine.
Safe guards get down during cutting, arise after cutting.
Automatically feeding by servo motor driving ball screw.
Imported high quality hard metal saw blade-WEMARO; servo motor and PLC-OMRON; touch screen-Eview; squar guide rail-HIWIN.
Parameters:
Model |
LJMJ-CNC-500B |
Power |
380V/50HZ/2.6Kw |
Rotary speed |
2840rpm/min |
Air pressure |
0.5-0.8MPa |
Air consumption |
10L/min |
Blade specification |
Φ500xΦ30x4.4 Z=120 |
Feeding length |
5-700mm |
Cutting width |
Max. 140mm |
Cutting height |
Max. 140mm |
Weight |
About 800Kg |
Overall dimension |
About 1500x1600x1600mm |

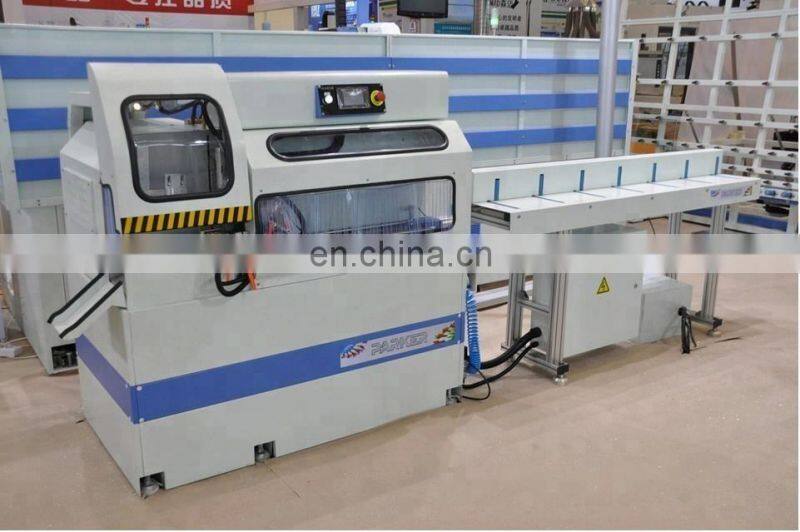

Corner key cutting machine in factory

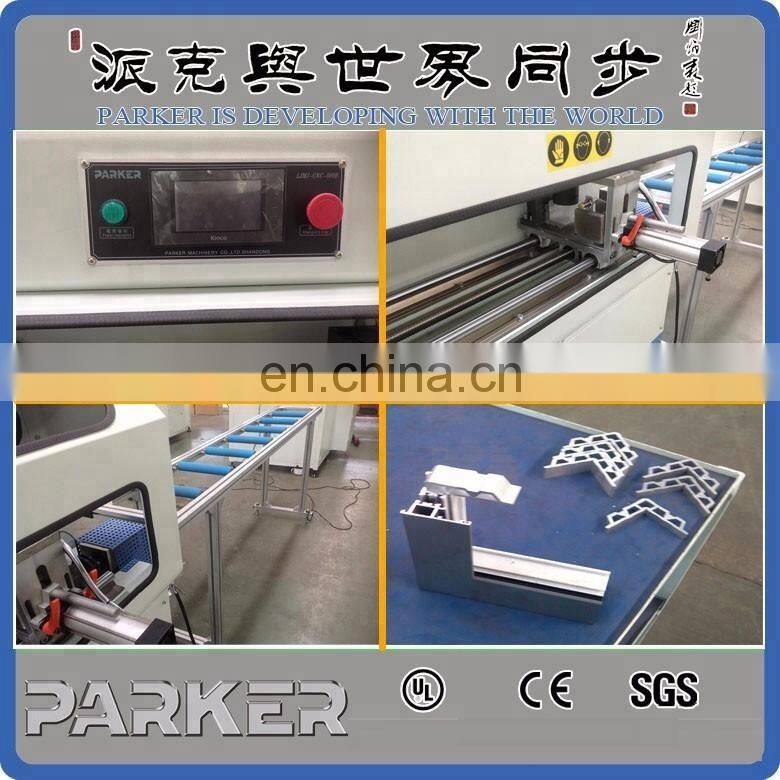

Cutting corner key
International partner
FAQ
1.Q:Are you a factory or trading company?
A:We are a factory.
2.Q:Where is your factory located?Can I visit there?
Our factory is located in Jinan City, Shandong Province, China, near to Jinan and Qingdao.You are warmly welcomed to visit us!
3.Q:How does your factory do regarding quality control?
We have strict control in testing of raw material, production process and final process.Only qualified products can be sent out.And we have passed ISO,CE certificate.
4.Q:What you can do if my machines have problems?
A.We can send you free components to you if your machines are in guarantee time.
B.We can send our engineers to repair your machines
5.Q:If OEM available?
Answer:Yes, as we usually do.
6.Q:What are your company normal payment Terms?
Answer:We accept T/T (50% T/T prepaid before production, 50% T/T prepaid before shipment)
