Home > Manufacturing & Processing Machinery > Building Material Making Machinery > Window & Door Making Machine > LJJZ4-CNC-S1800*3000 Alu-window-door Four Corner Automatic Crimping Machine

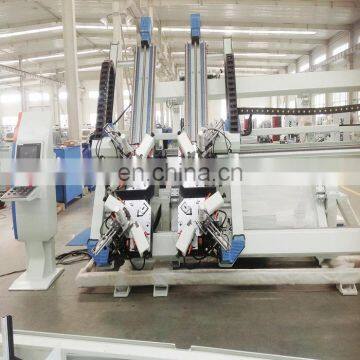

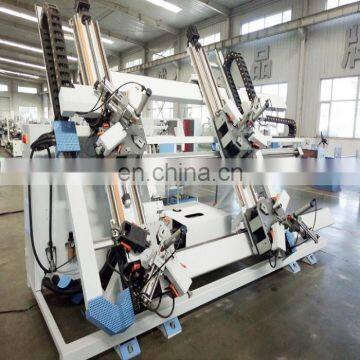

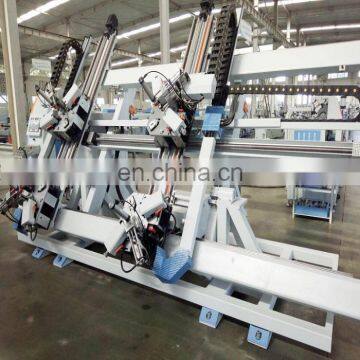

LJJZ4-CNC-S1800*3000 Alu-window-door Four Corner Automatic Crimping Machine
US$ 36,000 - 36,000
MOQ: 1 Unit
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Alu-door-window Four Corner Automatic Crimping MachineUS$ 35,000 - 35,000MOQ: 1 -
0.1mm Precise Aluminum Prrofile 3 Axis Double Head Saw for Window DoorUS$ 30,000 - 40,000MOQ: 1 Set
-
3 Axis Aluminum Profile Hole Drilling and Milling Machine Center on Hot SaleUS$ 25,000 - 35,000MOQ: 1 Set
-
LLZC-50 Aluminium Profile Variable Punching MachineUS$ 3,200 - 3,200MOQ: 1 Unit
-
LDX-250 Aluminium Profile Automatic End Milling MachineUS$ 5,700 - 5,700MOQ: 1 Unit
Brand Name
PARKER
Product Description

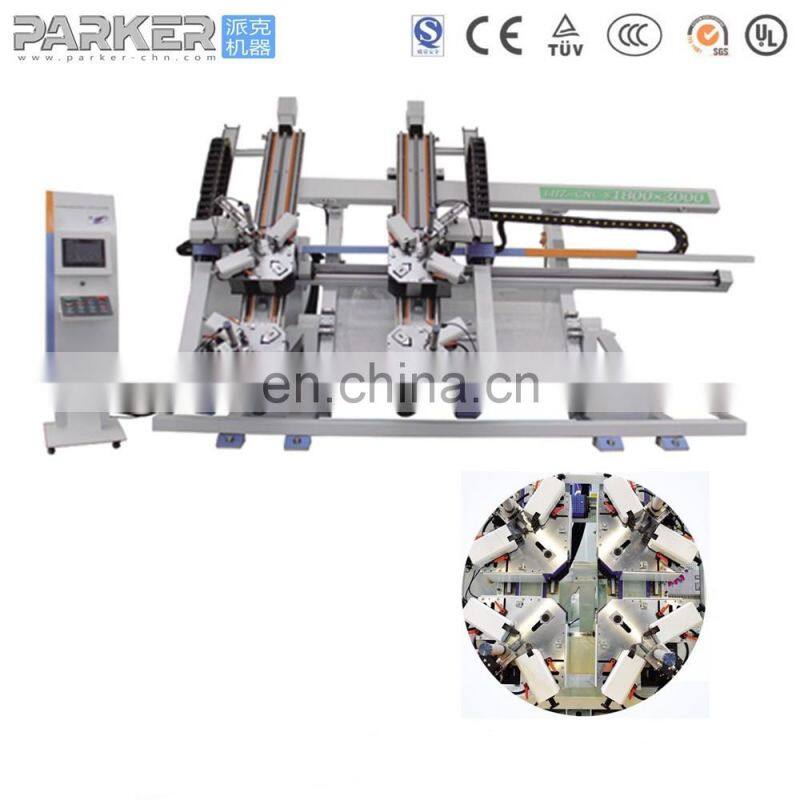

Alu-door-window Four Corner Automatic Crimping Machin
Model: LJJZ4-CNC-S1800×3000
Features:
1.Fuselage of entire machine design scientific, reasonable and steadily. And it welds with square steel pipe with the thickness of 10mm and make products steady when combining the corner.
2.Adopt the plunger type large-scale hydraulic pressure station, the pressure stable, offered the pressure well and the noise is low.
3.The electrically controlled box independent laying independently. It is convenient, even more is advantageous for the crimping angle quality real-time monitoring. The transmission connection uses the aerospace special-purpose receptacle, safe and stable.
4.Adopt original installation import flat square guide rail, which can guarantee the precision of the heads when moves horizontally. Transmission adopts the original imported installation ball bearing master screw. The precision is extremely high so it can guarantee crimping angle quality.
5.The servo controlling machines, servo motor, person-machine touching the contact surface are adopt the original imported installation of Japanese Mitsubishi system, and the increase assistance brake system. It is stable and efficiency.
6.The processing smallest scope is may reach 510x510mm, the manual mediation can realized to 500x500mm, it can suitable for all kinds of windows and doors that enterprise's processing to need.
7.Used for corner punching and riveting combination of aluminum window and door four corner connecting at one time is available which greatly increased the production efficiency.
8.Clamping device can adjust forward and back, it is easy to operate.
9.Adopt CNC system can realize automatic and accurate locating thus can produce high accuracy windows.
10.Wide profile processing range due to convenient corner combining cylinder setting.
11.Suitable for various kinds high quality and high volume windows production.
12.Can adjust the crimping position on the working table;
13.The inner positioning is changed to the adjustable lift type;
14.The above clamping device is equipped with second-displacement device;
15.The height and thickness of outside positioning device can be adjusted;
16.Add once again feeding adjustable pressure device;
17.The clamping cylinder can move backward so it's convenient to place the profiles;
18.It's convenient to change cutters with counters equipped.
19.Parker patent, unique design.
2.Adopt the plunger type large-scale hydraulic pressure station, the pressure stable, offered the pressure well and the noise is low.
3.The electrically controlled box independent laying independently. It is convenient, even more is advantageous for the crimping angle quality real-time monitoring. The transmission connection uses the aerospace special-purpose receptacle, safe and stable.
4.Adopt original installation import flat square guide rail, which can guarantee the precision of the heads when moves horizontally. Transmission adopts the original imported installation ball bearing master screw. The precision is extremely high so it can guarantee crimping angle quality.
5.The servo controlling machines, servo motor, person-machine touching the contact surface are adopt the original imported installation of Japanese Mitsubishi system, and the increase assistance brake system. It is stable and efficiency.
6.The processing smallest scope is may reach 510x510mm, the manual mediation can realized to 500x500mm, it can suitable for all kinds of windows and doors that enterprise's processing to need.
7.Used for corner punching and riveting combination of aluminum window and door four corner connecting at one time is available which greatly increased the production efficiency.
8.Clamping device can adjust forward and back, it is easy to operate.
9.Adopt CNC system can realize automatic and accurate locating thus can produce high accuracy windows.
10.Wide profile processing range due to convenient corner combining cylinder setting.
11.Suitable for various kinds high quality and high volume windows production.
12.Can adjust the crimping position on the working table;
13.The inner positioning is changed to the adjustable lift type;
14.The above clamping device is equipped with second-displacement device;
15.The height and thickness of outside positioning device can be adjusted;
16.Add once again feeding adjustable pressure device;
17.The clamping cylinder can move backward so it's convenient to place the profiles;
18.It's convenient to change cutters with counters equipped.
19.Parker patent, unique design.
Parameter:
Voltage: 380V 50HZ
Power: 7.5KW
Air pressure: 0.5-0.8MPa
Air consumption: 0.45L/time
Hydraulic system pressure: 15MPa
Oil tank capacity: 60L
Corner assemble: 0-50mm
Max. dimension of window: 1800x3000mm
Max. dimension of window: 550x550mm
Max. width of profile: 100mm
Seam of crimping error ≤0.15mm
Overall dimension: 5450mm×1900mm×2500mm
Power: 7.5KW
Air pressure: 0.5-0.8MPa
Air consumption: 0.45L/time
Hydraulic system pressure: 15MPa
Oil tank capacity: 60L
Corner assemble: 0-50mm
Max. dimension of window: 1800x3000mm
Max. dimension of window: 550x550mm
Max. width of profile: 100mm
Seam of crimping error ≤0.15mm
Overall dimension: 5450mm×1900mm×2500mm
