Parker Aluminum Window Door Cnc Four Head Corner Crimping Machine

Product Application

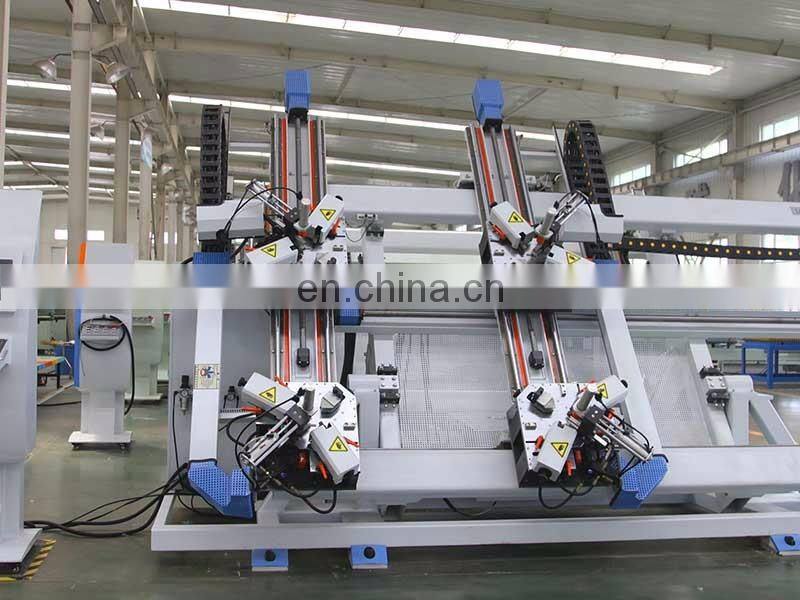

Parker aluminum window door cnc four head corner crimping machine

LJJZ4-CNC-1800×3000 CNC 4-head corner crimping machine is used for 90 degree corner joining of aluminum profiles. This CNC four head corner crimper is equipped with front or back movable clamping system and high quality hydraulic system. Place a corner connector into the cavity of the two profiles before corner crimping, and the hydraulic-driven crimping knives make permanent cold deformation on aluminum profile outer layers. With CNC control system, 4-head corner crimping machine can finish four-corner combining at one time. This CNC four head corner crimper is an ideal device for mass production of aluminum doors and windows.

Click here to watch video:

THE VIDEO LINK: /play/u/1724084374/p/1/e/6/t/1/53467336.mp4

Model LJJZ4-CNC-1800×3000

Type:   CNC Four Head Corner Crimper

Power Supply :  380V 50 Hz

Hydraulic System Pressure:   15 Mpa

Air Pressure:   0.5 to 0.8 Mpa

Oil Tank Capacity:   60 L

Air Consumption:   0.45 L/min

Corner-Assemble:   0 to 50 mm

Max. Dimension:   1800 mm × 3000 mm

Min. Dimension of Window:   510 mm × 510 mm

Dimension of Profile :  100 mm

Overall Dimension :  5000 mm × 2000 mm × 2600 mm

Weight :   3000 kg

Main Features

1. Adjustable head movement uses high precision ball screw ensuring accurate positioning and stable running.

2. Parker CNC 4-head corner crimping machine can adjust the size of aluminum doors and windows automatically, and finish the connection of four corners of a window frame or sash with high efficiency.

3. With hydraulic profile centering device, this CNC four head corner crimper can achieve centering of profile corner automatically.

4. With CNC control system and human-machine interface touch screen, this 4-head corner crimping machine is easy to operate.

5. Servo motors and precision ball screws control the movement of four crimping units, which guarantees the repeat positioning precision.

6. Clamping device of CNC four head corner crimper can move forward and backward automatically. It is easy to load and unload window frames.

7. Powerful hydraulic system provides strong and stable pressing force for 4-head corner crimping machine. This ensures big punching and riveting force and high strength of corner connection.

8. CNC four head corner crimper is installed with a reinforced clamping guide rod that can prevent malposition of aluminum profiles.

9. Height of crimping knives and depth of crimping can be adjusted to meet requirements of different aluminum profiles.

10. Profile clamping of our 4-head corner crimping machines is pneumatic and the feeding movement of crimping knives is hydraulic.

The crimping show:

Brand: PA control systerm
Original: Germany
Original German PA numerical control system. With standard data control process can choose graphics and enter the coordinates directly carry on the processing.

The Systerm can use the CADCAM software drawing and processing. It is very practicality.

Machine Parts

Name: Lubrication & Cooling Syterm
Brand: Accue-Lube & Sagely lubrication Systerm
Original: USA
The cutters adopt Accue-Lube which is semi-open type cooling system in America. This is EHS.

Main Parts

Main Parts

International partners:

PARKER IS DEVELOPING WITH THE WORLD.

Parker was founded in 2003, since the entry into the window door curtain wall machinery manufacturing field, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees, Parker Industrial Park covers an area of 70000㎡, Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.

Parker industrial show.

  Parker manufacturing creates ecological management system of 8M that is unique and most proud of , and the human resources, raw materials, technology methods, environment, information etc. have been ongoing ascension, and improves the overall quality and core competitiveness of parker. Customers around the world are actively popularize and apply it, benefit a lot from it.

Want to know more about us,

please click here     →

Q: How can I get the best machine for our business?

A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!

B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
     CNC machining center

     Aluminum window door/ curtain wall making machine

     UPVC window door making machine

     Insulating glass making machine

     You can send to my email directly : Carina(at)
