Parker aluminum window corner crimping machine with best price

Product Application

Parker aluminum window corner crimping machine with best price

LJJ-120 hydraulic corner crimping machine adopts new mechanical link structure to make corner assembling synchronously. Left and right punching heads feed synchronously to avoid deformation to make window corner connection more solid. Synchronous feeding structure makes the adjustment simple and easy. The blades can be adjusted up and down relatively by the threads. This single head crimping machine or hydraulic corner crimping machine can be equipped with single blade or multipoint blades, making more reliable corner forming, more efficient work, more precise manufacturing and more excellent quality.

Click here to watch video:

THE VIDEO LINK: /play/u/1724084374/p/1/e/6/t/1/53467803.mp4

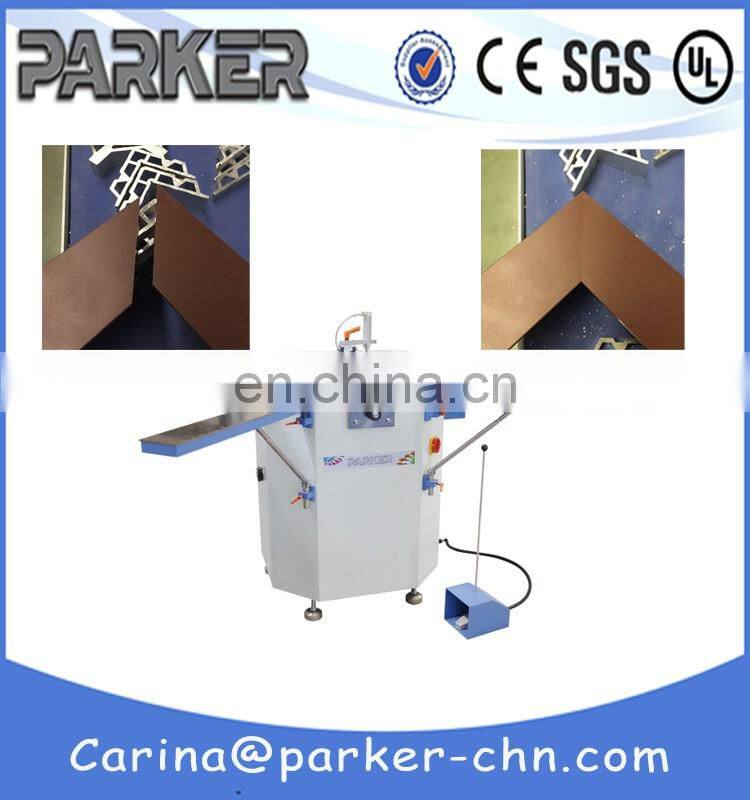

Model LJJ-120 Hydraulic Corner Crimping Machine

Joint Seam Error : ≤ 0.15 mm

Power Supply : 380V 50 Hz (Three Phase, Four Wire)

Input Power : 1.5 kW

Hydraulic System Pressure : 15 Mpa

Air Pressure : 0.5 to 0.8 Mpa

Air Consumption : 2 L/min

Oil Tank Capacity : 20 L

Width of Profile : 120 mm

Overall Dimension:  1000 mm × 1200 mm × 1200 mm

Weight:  360 kg

Main Features

1. This single head crimping machine realizes stable corner combining due to hydraulic power drive.

2. Hydraulic corner crimping machine features less processing error, easier operation and better processing quality.

3. Screw adjusts combining tool's distance, making the tool setting convenient.

4. Single head crimping machine can be equipped with multi-position combining tool available to process thermal bridge aluminum.

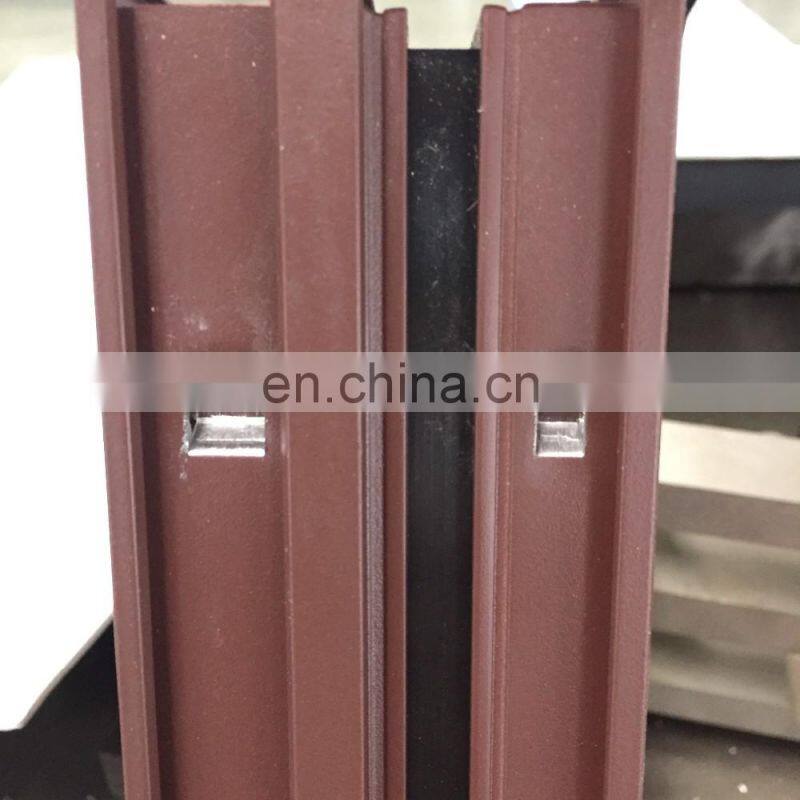

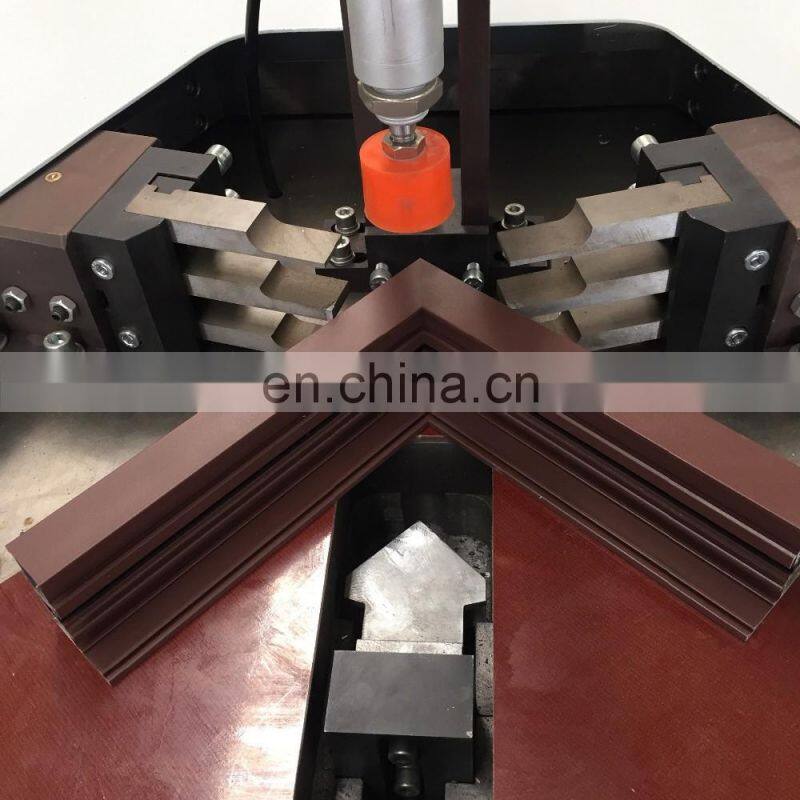

The crimping show:

PARKER IS DEVELOPING WITH THE WORLD.

Parker was founded in 2003, since the entry into the window door curtain wall machinery manufacturing field, peck with the best team and most stringent manufacturing standards, has been committed to the global supply of machinery and the best service. Today, with more than 300 employees, Parker Industrial Park covers an area of 70000㎡, Parker has become Chinese and even the world's window door curtain wall and insulating glass high-end machinery manufacturing base.

Parker industrial show.

  Parker manufacturing creates ecological management system of 8M that is unique and most proud of , and the human resources, raw materials, technology methods, environment, information etc. have been ongoing ascension, and improves the overall quality and core competitiveness of parker. Customers around the world are actively popularize and apply it, benefit a lot from it.

Want to know more about us,

please click here     →

Q: How can I get the best machine for our business?

A: Just let us know your cutting material, size, thickness, and working area needed, we will suggest the most suitable machine and professional solution.

Q: When can we arrange shipment?
We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

Q: This is my first time using this kind of machine, is it easy to operate?
A: Of course the machine is easy to operare. We will send you the English version user manual and install video which shows how to assamble and use the machine clearly, almost all the customers can operate the machine easily. No need to worry about this, after all, Parker will always be here to help!

Q: If the machine has problem in my place, how could I do?
A: Usually there won't be any problem under "normal use" as per the user manual. But in case you have any problem, our professional after-service team will provide you any support you need any time!

B.We can send you free components to you if your machines are in guarantee time.
C.We can send our engineers to repair your machines.

Q: This machine is not suitable for me, do you have more models available?
A: Sure, in order to meet different customers' different requirments, we reserched many other different machines.
     CNC machining center

     Aluminum window door/ curtain wall making machine

     UPVC window door making machine

     Insulating glass making machine

     You can send to my email directly : Carina(at)
