Aluminum Window Door Glazing Bead Cutting Machine
US$ 3,000 - 4,000
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Credit Card
You May Like
-
Aluminum Window Crimping Machine
-
Aluminum Pipe 4 Axis Linkage Machining Center
-
Automatic Aluminum Profile Window Door Crimping Machine
-
Aluminum Four Corner Crimping Machine
-
Aluminum Window Door Machines Crimping Machinery
-
Aluminium Window Door Frame Making Machine/aluminum 45 Degree Corner Crimping Machine
Product Details
| Brand Name | PARKER | Model Number | LYT-300A |
Product Description
Product Description

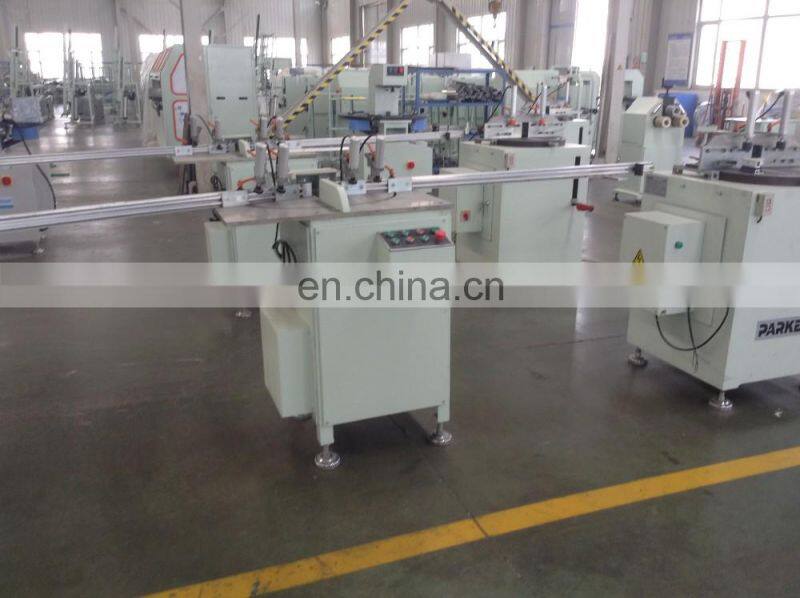

Aluminum Window Glazing Bead Cutting Saw
LYT-300A glazing bead cutting saw for aluminum door and window is suitable for all kinds of common layerages of window sash's angle cutting. The cutting angle can be adjusted. This glazing bead saw is mainly used for processing glazing beads. It adopts two groups of cutters for cutting and milling. It can finish two pieces of profiles 45° cutting and glazing bead milling at one time. The glazing bead cutting saw is equipped with location device and measuring device to ensure swift measuring. With measure rulers, it can measure the window inner frame's size. According to the needed size, users can process glazing bead. Besides, this glazing bead saw is installed with a tiny adjusting device, with which users can adjust the tightness degree as needed.
Feature
1. It can cut air-pressing materials and feed blades automatically.
2. Parker glazing bead saw is often used for cutting aluminum at 0° to 180°.
3. Clamping devices keep fixing profiles so as to protect workers and machines when power is off suddenly.
4. With the cutting location device, the glazing bead cutting saw realizes high-precision cutting.
5. This glazing bead saw features stable feeding, high efficiency and long using life.
6. Emergency stop is convenient to operate at bottom right corner.
2. Parker glazing bead saw is often used for cutting aluminum at 0° to 180°.
3. Clamping devices keep fixing profiles so as to protect workers and machines when power is off suddenly.
4. With the cutting location device, the glazing bead cutting saw realizes high-precision cutting.
5. This glazing bead saw features stable feeding, high efficiency and long using life.
6. Emergency stop is convenient to operate at bottom right corner.
Parameter
Repeating Fixed Length Precision ≤ 0.3 mm
Cutting Angle ± 5′
Cutting Plane ≤ 0.1 mm
Cutting Harshness Ra12.5 µ m
Power Supply 380V 50 Hz (Three Phase, Four Wire)
Motor Power 2 × 1.5 kW
Rotary Speed 2800 rpm
Trailer Speed 1400 rpm
Air Pressure 0.5 to 0.8 Mpa
Cutting Length Max. 120 mm Min. 60 mm
Cutting Width Max.120 mm
Cutting Height Max. 60 mm
Feeding Speed 0 to 3 m/min (Variable Speed)
Saw Blade Dimension Φ300 × 2.8 × Φ30 × Z100
Overall Dimension 820 mm × 1020 mm × 1020 mm
Weight of Glazing Bead Saw 120 kg
Detailed Images show
Cutting Saw video
Aluminum cutting saw machine video link
Parker Machinery Co.,ltd
/watch?v=hYwmgxfRge4
LJZ2-CNC-E500 CNC Double cutting machine
/watch?v=TN-E8b2g_DA
A8-500 Aluminum 3Axis Double Cutting Saw With CNC
/watch?v=ZPf0rh6d4pc
A9 Aluminum Profile Intelligent Cutting Center
/watch?v=Rrz37cu9qv8
LDJ-135 Single head any angle cutting machine
/watch?v=-kkaWFnVkQ8
LJMJ-CNC-500B Aluminum profile corner key cutting saw
/watch?v=lOG3FGOVrn0
LJZ2-500X4200 45 degree and 90 degree double head mitre saw
/watch?v=rBkr2evb35c
Parker Packing
Parker Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
