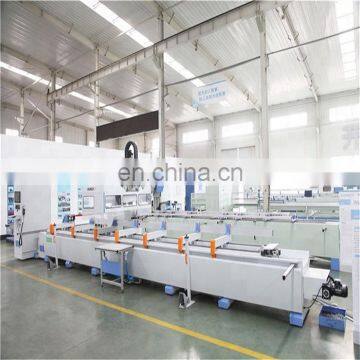

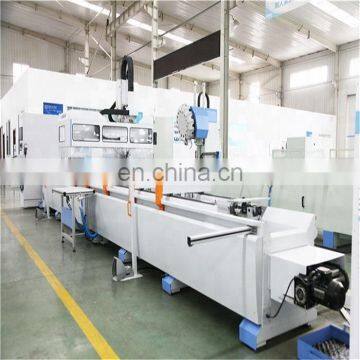

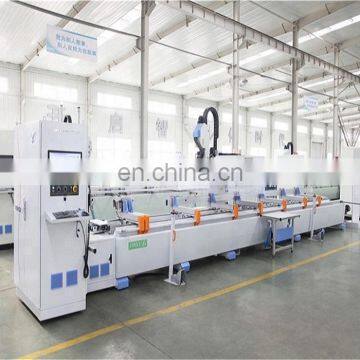

4 Axis CNC Control High Speed Drilling Milling Processing Machining Center for Aluminium Window Door and Curtain Wall
- Qingdao
- T/T Credit Card
You May Like
-
Aluminum PVC Window Door Double Head Mitre Saw
-
Parker Window Door Section CNC Cutting Machine
-
CNC Corner Combining Profile Saw Cutting Machine
-
China Supplier Automatic Aluminum Window 4 Heads Crimping Machine
-
Aluminum Widow Door Profile One Head Cutting Machine / One Saw For Cutting Aluminum Section
-
CNC Saw Cutting Machine
Product Details
| Place of Origin | Shandong, China | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
4 Axis CNC Control High Speed Drilling Milling Machining Center for Aluminium Window Door and Curtain Wall
DMCC6
Feature:
♦ The machine is designed for processing launder, taping, milling, and mounting hole, lock and other slots for diversified curtain walls and aluminum doors and windows.
♦ It adopts high-speed electric principal axis, which is imported from Italy. It is extremely efficient and can swing in±90°
♦ It adopts high-quality computer control system, which is used in industry area specially. The system has favorable user manipulate interface program in graphics mode and processing interface. This processing interface can show related dates directly.
♦ It adopts high-quality servo motor, roller linear guide pair to insure the machine runs with high precision.
♦ The cutter storage supply 12 cutters positions, the cutter can change quickly and automaticly
♦ The position of clamping device can put freely(option)
Parameter:
Voltage: | 380V 50HZ |
Total Power: | 13KW |
Cutter Max. length: | 165mm |
Saw blade diameter: | Φ80mm-Φ150mm |
Clamp station: | 6 |
Location error: | ±0.05mm |
Resetting error: | ±0.02mm |
Processing error: | ±0.1mm |
Surface roughness: | Ra12.5μm |
Overall dimension: | 10200mm x 2500mm x 6000mm |
