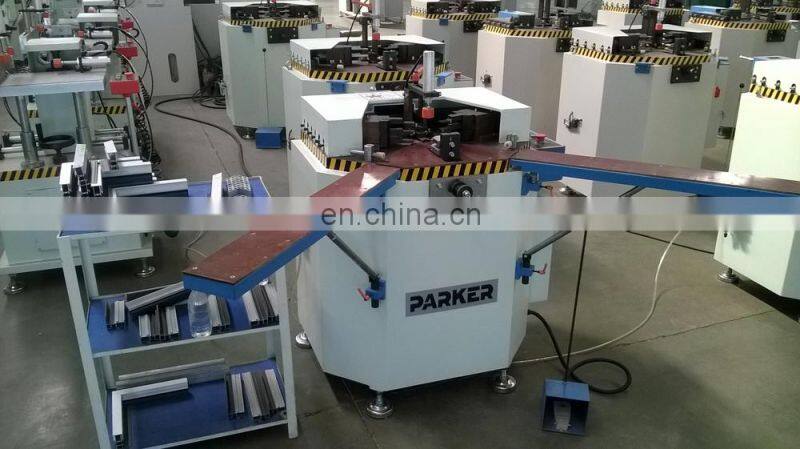

1.5KW Power Aluminum Door Window High Speed Corner Crimping Machine Price

  Aluminum Window Door Crimping Machine

Feature:

This machine is used for connection of 90°angle structure of aluminium doors and windows

The new linkage structure makes corner-assembling synchronous.

Left and right punching heads feed synchronous to avoid deforming in corner-assembling procedure to make window corner connection more solid.

Synchronously feeding structure makes the adjustment simple and easy.

The blades can be adjusted up and down relatively by the threads.

It can be equipped with single-blade multipoint blades, making the corner-forming more reliable, the work more efficient, the manufactures more precision and the quality more excellent.

Parameter:

Voltage: 380V   50HZ

Power: 1.5KW

Air pressure: 0.5-0.8MPa

Air consumption:60L/min

Hydraulic system pressure: 15MPa

Oil tank capacity: 20L

Max. width of profile: 120mm

Seam of crimping error: ≤0.15mm

Overall dimension: 1000mmx1200mmx1200mm

1. One year warranty time, we can repair and replace parts for free in one year.

2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.

3. Free maintenance service.

4. Free training course at our factory with professional engineers.
5. We provide the consumable parts at agent price when you need replacement.

6. Engineer available overseas.

1. When can we arrange shipment?

We usually arrange shipment in 15 days after getting deposit, but customized machines should be more than 25 days.

2. What to do if you get problems with the machine?

a. We will send you free spare parts if your machines are in guarantee time.

b. We can send our engineers to repair your machines.

   Parker Machinery is a manufacturer of high performance window door curtain wall processing machines and insulating glass producing equipment. Parker prides itself on manufacturing the high-qualified and advanced window door equipment in the world. Within over ten years development since 2003, their always primary goal is to create value for their customers, by continuously striving to achieve the highest combination of efficiency and accuracy, combined with cost-effectiveness. The other core concept of parker is to develop with the world. They follow and even lead the manufacturing trend from single machine auto-produce to intelligent production line. They are devoted to provide a series of projects and complete services for window-door solutions. On the basis of the perfect performance in domestic market, Parker also set the aim of a world famous window door processing equipment supplier. Now their equipments and services has been widely accepted by oversea customers from over 50 countries like Canada, Australia, India, Russia, Mongolia , Brazil, Vietnam, USA, England, South Africa and so on.
