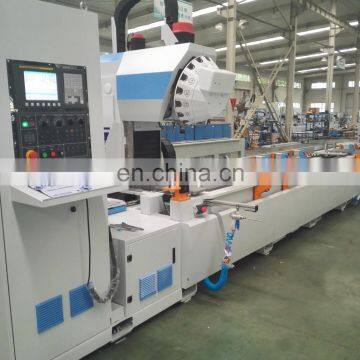

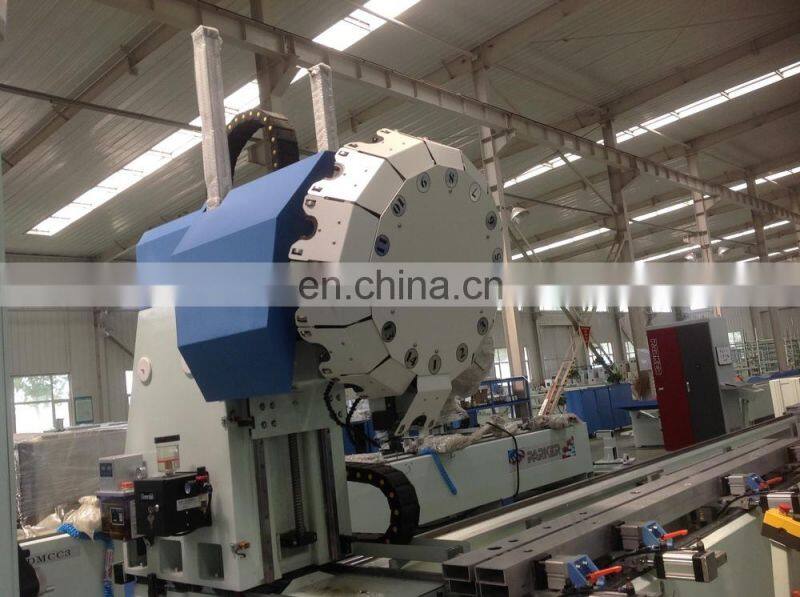

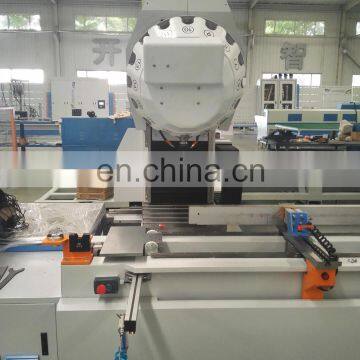

Parker 4 Axis CNC Machining Center for Aluminum Drilling Milling Threading

 Parker 4 Axis CNC Machining Center / Milling, Drilling andTaping Machine

Features

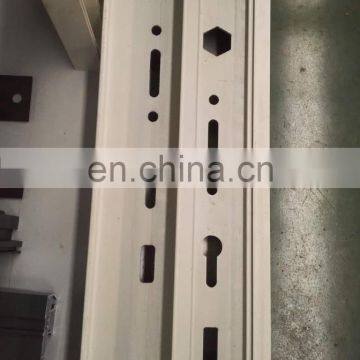

1-  It is used for window-door, curtain wall, aluminum profile, rail transportation, refrigeration components, bathroom hardware, ship building and ship repair, aluminum bronze accessories, industrial aluminum, nonferrous metal and light section steel structure and other processing for drilling, milling and other list of processing.

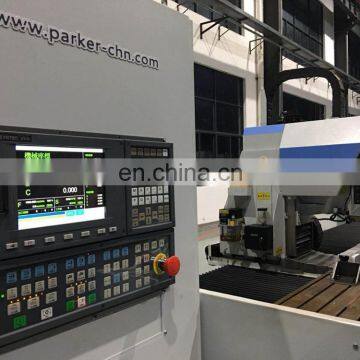

2- The full set is servo motor control system, and use OMRON brand, technique can make sure quality. Equipped with professional CAM Processing software and intuitive programming system enables easy visualization of complex processing.

3- Designed the moving work table for material, and moving box

4- The list of processing about drilling, milling, tapping into one clamping.

5- The body is welding by steel tube with high quality and be processed by scratch push, so it is stability and strong steel.

6- Power of continuing function, the machine can go on processing when the power is get through. Linked speed (processing, interpolation) can get to 1000mm/min.

Parameter:

Voltage:  ...............................................380V   50HZ

Total Power:  .......................................13KW

Location error:  ..................................±0.05mm

Resetting error:  ...............................±0.02mm

Processing error:  ..............................±0.1mm

Surface roughness: ............................Ra12.5μm

X axis:  ....................................................7070mm

X axis running speed:  .......................48m/min

Y axis:  ....................................................420mm

Y axis running speed:  .......................48m/min

Z axis:  .....................................................572mm

Z axis running speed:  ........................20m/min

Overall dimension:  ..............................10000mm x2300mm x 2800mm

 Parker Machinery Co., Ltd is a professional manufacturer of door and window equipment in China. Our products mainly cover insulating glass machine, PVC welding machine, cleaning corner machine, curtain wall equipment, and so on. We have been dedicated to producing pvc and aluminum door, window production lines for ten years. Our products are well appreciated for their advanced design, sophisticated manufacturing, excellent quality and full service. Parker machines are highly appraised by customers from over 60 countries and districts.
