Product Details
| Brand Name | Better | Model Number | LJG-500 |
Product Description

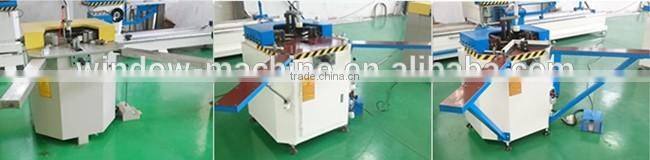

Aluminum Double Head 45 Angle Mitre Saw,model:LJG-500
This machine which is used for precise cutting profile of aluminum and pvc window and door,curtain wall and corner connector.Featured upward cutting blades.Imported carbide saw blade gives accurate processing and high efficiency. Imported linear guide rails.Pneumatic clamping cylinder.Adopts digital displayer to show the cutting length and the other parameters,ensuring high efficiency and accuracy.It has feature of easy operation,reliable performance,advanced technique and convenient maintenance.Two head can work together or single,one time can cut off the required length and angle.
Power supply | As required |
Cutting motor power | 2*3kw |
Operation air pressure | 0.4 - 0.6Mpa |
Blade rotational speed | 3100 r/min |
Saw blade specification | D=500mm d=30mm |
Cutting length | Min380mm Max4200mm |
Cutting angle | 90°,45° |
Contour dimension(L*W*H) | 5900*1700*1990mm |
Weight(about) | 1800kg |
Cutting machine---single head
End milling machine for mullion profile
Copy router milling machine,CNC milling machine
Corner connector cutting machine
Single corner combining (crimping) machine
