China Plastic UPVC PVC window processing machine for surface and corner welding seam cleaning
- 70 Set / Sets per Month
- Qingdao Shanghai Guangzhou
- T/T Credit Card
You May Like
-
New Plastic UPVC PVC window corner cleaning machine for welding seam cleaning
-
CNC full automatic Plastic PVC UPVC window door corner cleaning machine
-
CNC automatic PVC window assemble machine for corner and surface welding seam cleaning
-
CE approved high precision CNC automatic UPVC window making machine for UPVC window door welding seam cleaning
-
OEM factory Full automatic CNC PVC window fabrication machine for frame welding seam cleaning
-
Automatic CNC PVC UPVC window door machine for welded frame corner and surface cleaning
Product Details
Brand Name | Better | Model Number | SQJ01-120 |
Product Description
China Plastic UPVC PVC window processing machine for surface and corner welding seam cleaning
Common corner cleaning machine for PVC/UPVC/Plastic/Vinyl window door
(Model:SQJ01-120)
Brief description
This machine (model:SQJ01-120) is used for cleaning PVC/UPVC/Plastic/Vinyl doors and windows. It can clean the upper surface, lower surface and vertical surface sides of profiles. Through changing shaped cutters, it can clean welding seam of profiles with different sections.
Features

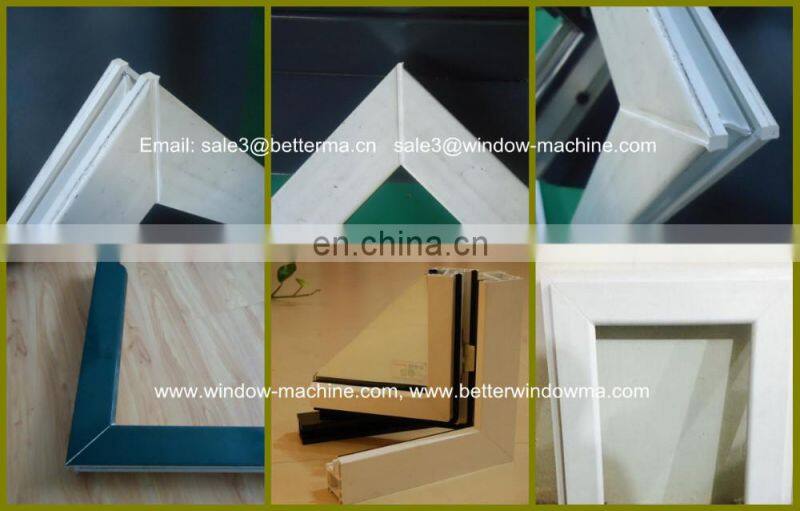

1).It can clean corner seam welding tumor on upper surface (or say top surface), lower surface (or say bottom surface) and vertical surface (or say external corner or outer corner).
2).Special cutter to clean the external corner, special cleaning cutter should be designed for each profile.
Need to change cutter to clean different kinds of profiles, it can complete the cleaning of different profiles’ section through verifying the fashioned milling cutter (or say cleaning cutter or milling saw).
3).It features program control, pneumatic drive, and floating modulated pressure pulling- cutter
devices and is suitable for different levels of profiles.
4).Program control and pneumatic driving systems are equipped to achieve the easy operation, high accuracy and high efficiency, it is necessary equipment for large scale door and window processing production.
Parameters | |
Model | SQJ01-120 |
Power supply | 380V/50Hz or as required |
Input power | 1.1kw |
Working air pressure | 0.5~0.8Mpa |
Air consumption | 100L/min |
Main milling cutter speed | 2800r/min |
Processing profile height | 20~120mm |
Processing profile width | 20~120mm |
Groove processing width | 3mm |
Groove processing depth | ≤0.3mm |
Overall dimensions (LxWxH) | 1650x1300x1450mm |
Net weight (about) | 270kg |
Main parts brand name | |
Electrical button and switcher | Schneider (France brand) |
AC contactor | Schneider (France brand) |
Circuit breaker | Schneider (France brand) |
Cylinder | Baidi (China Taiwan brand) |
Standard accessory | |
Certificate | 1 piece |
Complete tooling | 1 set |
Operation manual | 1 piece |

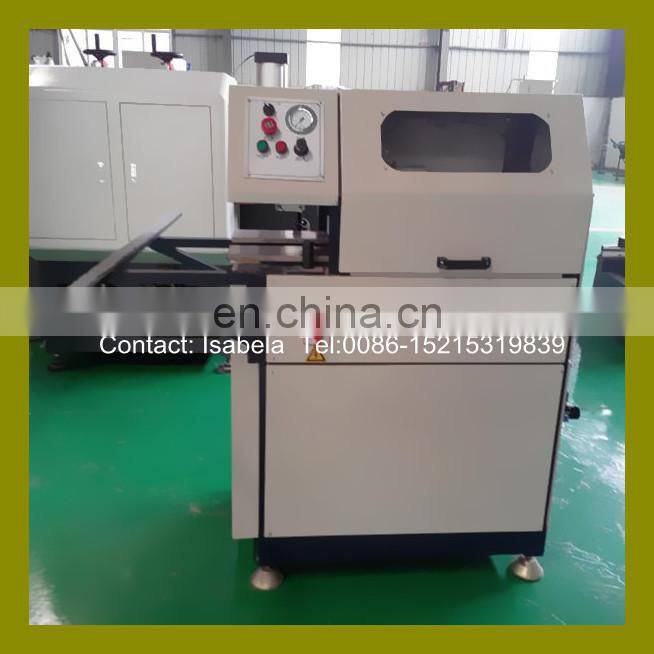

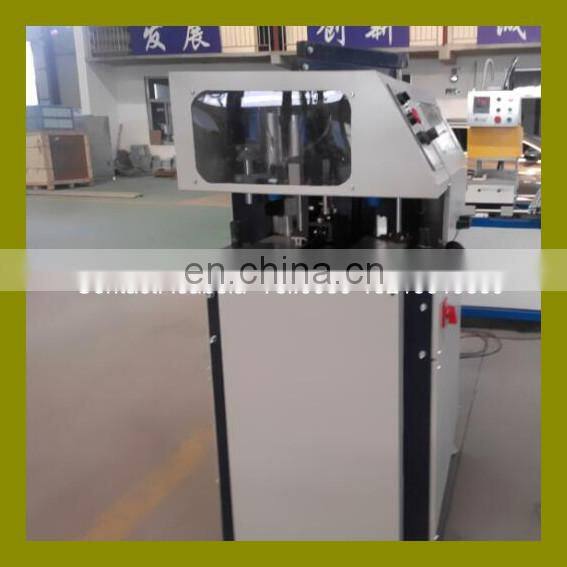

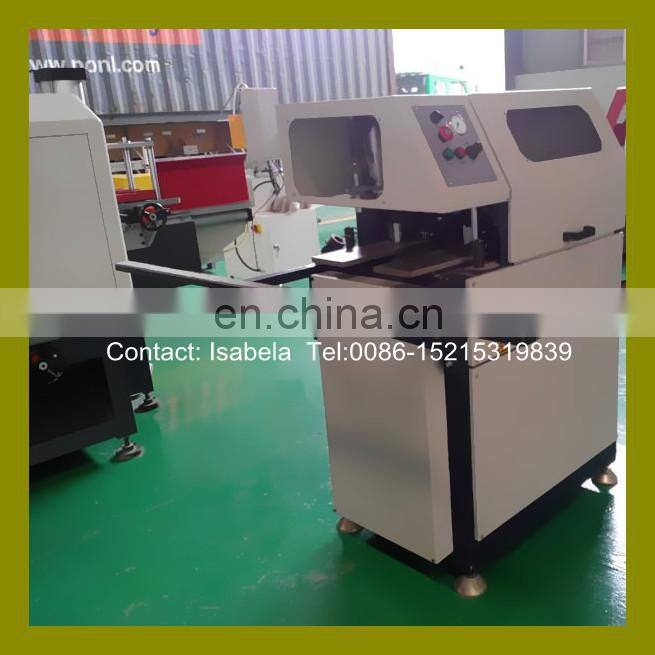

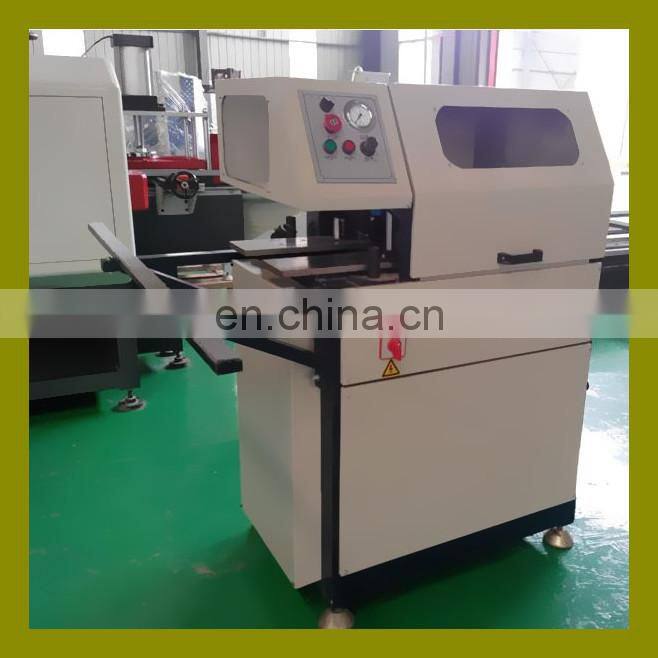

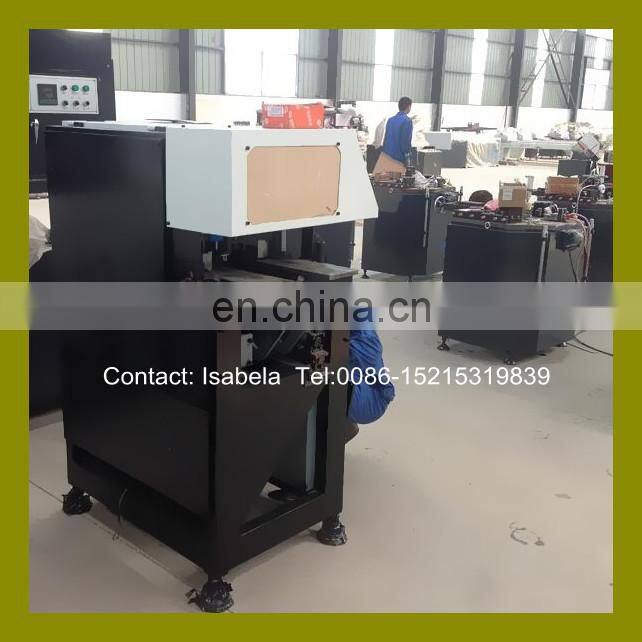

Model SQJ01-120 pictures

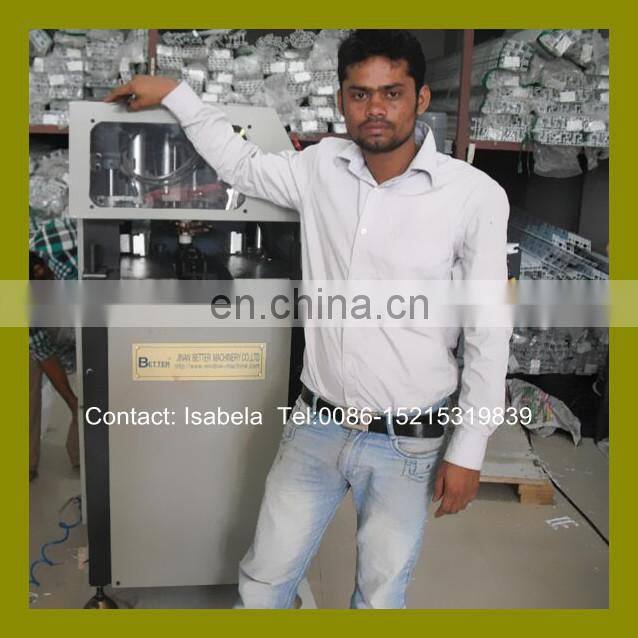

Model SQJ01-120 in our oversea customer workshop showing
Our company workshop and machines certificates

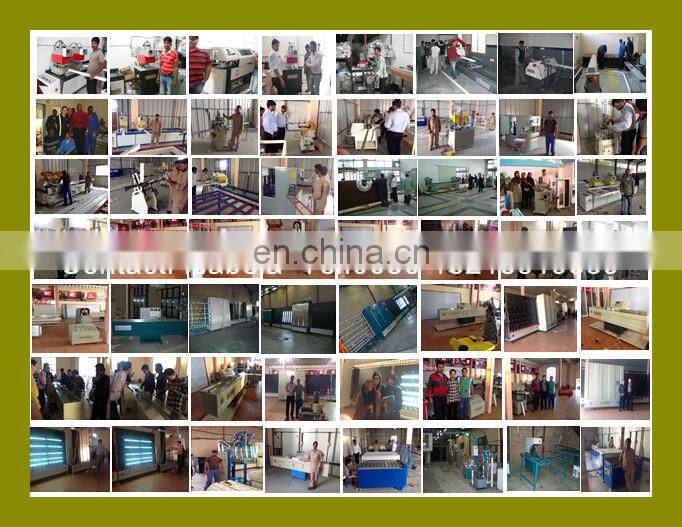

Our machines in foreign customer workshop pictures
WHY YOU CHOOSE US Question AND Answer
1.Question:Are your manufacture?
Answer:
We are manufacture of the PVC/UPVC/Plastic/Vinyl window door machine, Aluminum window door machines, Insulating glass machines.
2.Question:What’s the customer service?
Answer:
1).Reply within 12 hours.
2).One to one service.
3).24 hours for after-sale service.
4).More than 15 years experience in this field.
5).Fluent English, communication barrier free.
3.Question:What’s the guarantee?
Answer:
1).Our guarantee for 2 years.
2).24 hours technical support by email or calling.
3).English manual and video tutorial.
4).2 years quality guarranty for the machine (excluding the consumables).
5).We will provide the consumable parts at an agency price.
6).24 hours on line service each day, free technical support.
4.Question:If your price is higher than another company or factory?
Answer:
Please check, what is is the difference of the machine parts, service and guarantee, especially the machine inner electric parts, sometimes, if machines have breakdown, the most reason is the machine inner electric parts problem, we use the world famous brand parts to install to machines inner, so that can sure you can use the machines very long long years. We believe that you will choose the true quality long lifetime machine, not cheaper machine.
5.Question:How long is the delivery time?
Answer:
For standard machines, it will take 1-15 days. (Some machines, such as the lock hole milling machine, end milling machine or glass edge polishing machine or butyl extruder machine etc., these common models machines, if you buy separate machine, we can delivery within 1-7 days after get your deposit, it depends on different model; If your order machines are enough a container to load or you order the whole production line machines, we can delivery within 10-15 days.)
For non-standard machines and customized machines according to clients specific requirements, it will take 15 to 30 days. (If the machines that customer ordered are very special, we will take long time to make the machine specially, it will take 15-30 days, this point hope customer can understand, thanks!)
6.Question:How's the payment?
Answer:
1).Telegraphic Transfer. T/T: 30% T/T deposit, 70% rest balance before shipment or against the original BL scanning. (If customer want to pay little deposit in beginning, for example, some customer want to pay 10% deposit, it is also acceptable; If some customer visit our factory and confirm the order, want to pay some cash as deposit, it is also acceptable).
2).L/C.
3).If you want by Western Union or Trade Assurance, it is also OK.
7.Question:What is Jinan Better Company special advantage?
Answer:
We have skilled engineers in this field about 20 years, they can directly to give you any help on machines by calling or by video link or by email in short time. Before our machine reach your workshop, if you need we help you to design the drawing that list all machines should how to place in your workshop, we can help you to make the drawing to give suggestion in short time; And if you need we suggest how many squaremeters workshop is betterr, you can tell us your plan production, then we will suggest how many machines you need, and tell you how many squaremeters workshop is better.
8.If I want to use some certificates to pay less tax for importing your machines, can you help me?
Answer:
Our company can make the different Certification of Origin, it will make you to pay the less tax if you import our machines.
9.Question:What is your contact information if we want to start business with you?
Answer:
Contact Person:Ms.Isabela
Jinan Better Machinery Co.,Ltd.
Address:No.6 Lashan North Road,Jinan City,Shandong Province,China.
Tel:0086-531-85608516
Mobile No.:0086 15215319839
WhatsApp &Wechat:0086 15215319839
Fax:0086-531-61311202
Skype:isabela.liu
