Door and Window UPVC Aluminum Copy Router Machine
- Qingdao China
- T/T Credit Card
You May Like
-
Aluminum PVC Window Door Handle Hole Milling Machine
-
Copy Router Aluminum and PVC Window and Door Making Machine
-
Double Head Welding Machine / PVC Windows Manufacturing Machine Line
-
CNC Vertical 4 Corner Welding Machine / Upvc Window Making Machine
-
CNC Vertical Welding Machine / PVC Doors and Windows Making Machine
-
Vertical 4 Point Plastic Window Profile Machine for Welding
Product Details
| Brand Name | Better | Model Number | LZ3FX-235X100 |
Product Description
Door and Window UPVC Aluminum Copy Router Machine,Model:LZ3FX-235X100
It is a special machine used for processing holes and grooves for aluminum doors and windows.With features of compact structure ,triple drilling and single milling and small volume.available for processing various kinds holes,grooves and water-slots on windows and doors.long life use.

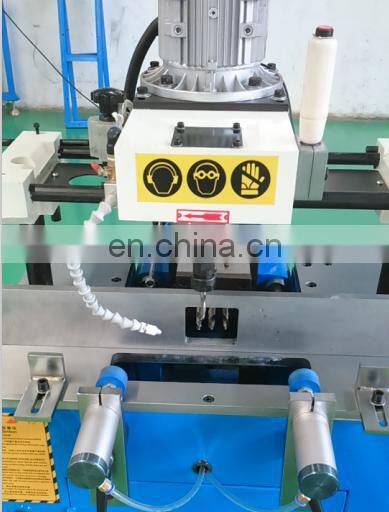

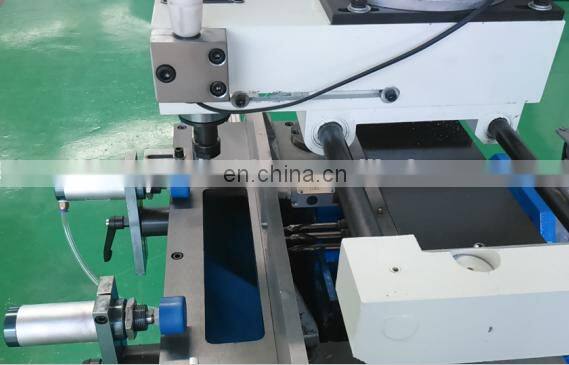

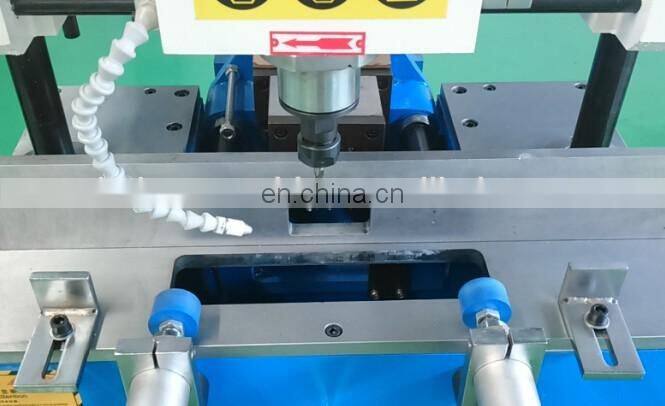

Hole drilling part.one motor drive triple drilling cutter by the gear box,from the feeding handle move forward to process the 3 lock holes.copy routing part.one motor drive single milling cutter by one belt, the groove is same in dimension and shape as the copy board.
Working Air Pressure | 0.4~0.6Mpa |
Air Consumption | 30L/min |
Power Supply | As required |
Input Power | 2.2kw(1.1kw,1.1kw) |
Milling cutter diameter | 5mm 8mm |
Copy-routing range | 290*90*100mm |
Outside Dimension | 1000*1130*1500mm |
Weight(about) | 350kg |
Seam(normal) welding machine---One / Two / Three / Four head
Seamless welding machine---One / Two Three / Four head
Double head / Single head
End milling machine,Lock hole and copy router milling machine
V cutting saw,Glazing bead cutting saw,water slot milling machine
