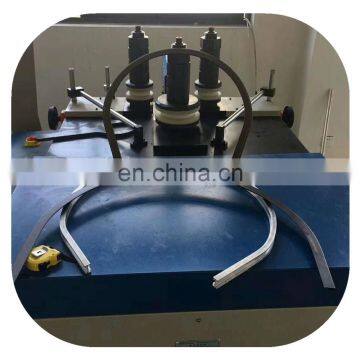

Fully Arc Bending Machine for Window and Door _newest Design
- T/T Credit Card
You May Like
-
Automatic Powder Coating Machine for Aluminium Profiles
-
Best Design Control Cabinet Automatic Powder Coating Line
-
Automatic Powder Coating Line With Conveyor for Aluminium Window and Door
-
Customized Powder Coating System for Small Hardware
-
Amachine Electrostatic Powder Coating Production Line With Conveyor
-
Automatic Powder Coating Line for Aluminium Profile
Product Details
| Brand Name | Amachine |
Product Description

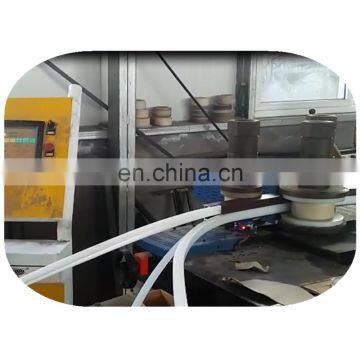

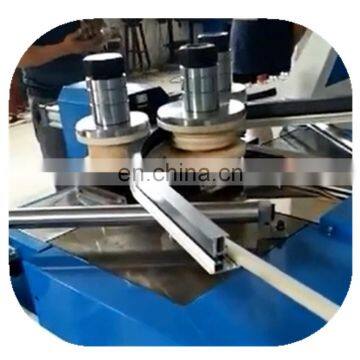

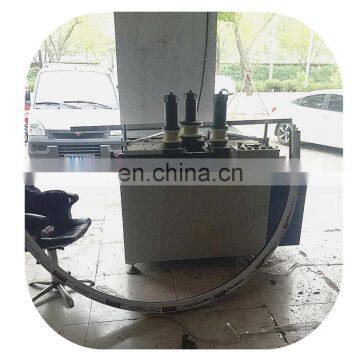

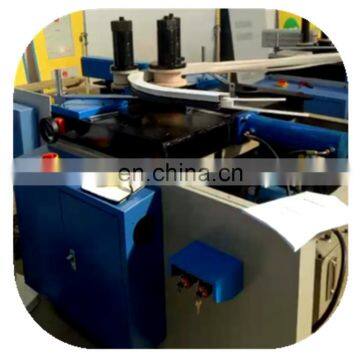

CNC profile bending machine for aluminium window and door arch
Applications:
This CNC bending machine is to bend the profile into a certain degree shape, so that the thermal break profile can be used for different purposes. Suitable for various aluminum profiles and rectangular steel tube.
CNC arc bender for window and door
Features:

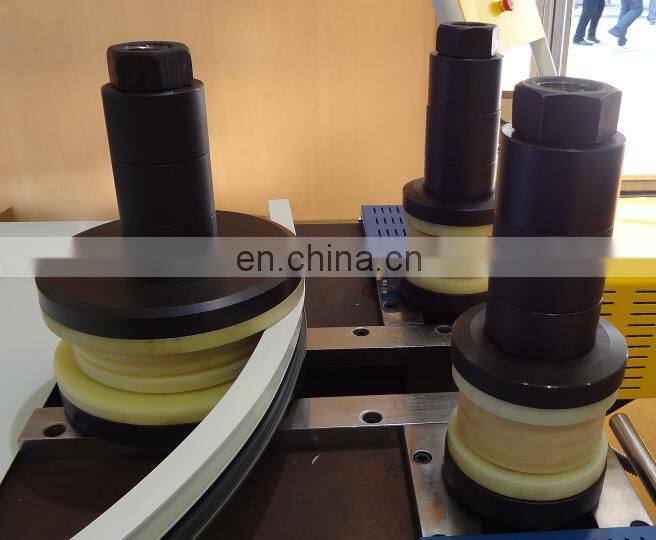

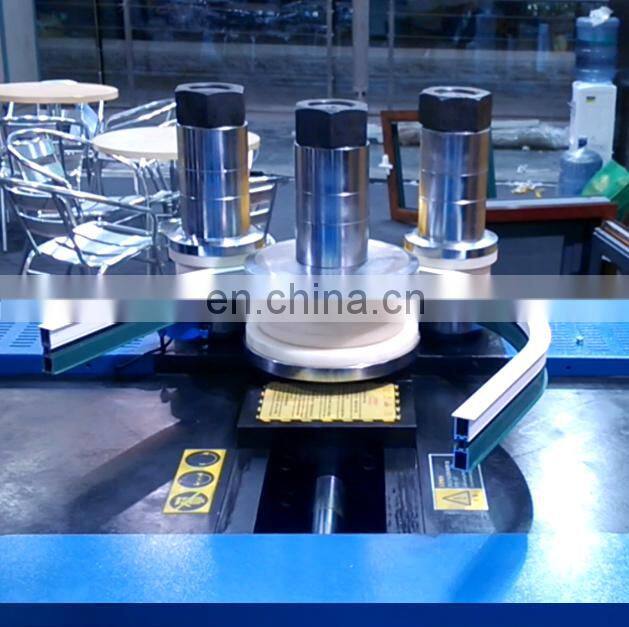

- Equipped with three separate driving rollers, which can avoid sliding during working.
- The max hydraulic pressure is 13MT, so as to bend profiles easily, and window and door frames as well (rectangular steel tube) .
- Rollers are controlled by CNC system to guarantee accurately(+/-0.02mm).
- Distance and position of driving rollers can be adjusted according to requirements.

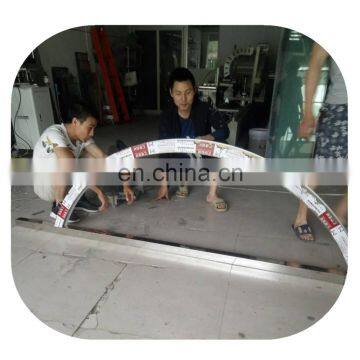

- Shape bended: “ C” , “U “ , ellipse.
- Self-compensating of rebound value, saving time and money.
- Data can be saved in order to recall next time .
- Controlling methods: automatical or manual .
- Working speed can be changed to meet manufacturing requirements.
- Aluminum with 250mm radius can be bended without causing deformation.
Technical data:
Model | WYJ-CNC-01 |
Minimum bending radius | 180mm |
Diameter of roller | 65mm |
Working mode | NC, hydraulic drive |
Center distance of rollers | 260mm |
Positioning precision of upper roller | 0.02mm |
Max.travel route of upper roller | 400mm |
Maximum width of profile | 260mm |
Power of oil pressure motor | 4.5kw |
Pressure of oil | 20T |
Working voltage | 380VAC/50HZ |
Dimension (L*W*H) | 1300*1100*1500mm |
Weight | 800kg |
Packaging | Wooden box |
Company introduction
1. Mainly engaged in Aluminium profiles processing machine , AL/PVC window and door machines , Insulation glass machines.
2. Machine quality ,delivery time , after-sale service ,etc can be definately guaranteed ,
3. Machine price is definatley much more competitive than other trading company .
4. Machine guarantee time is definatley longer than others.
5. Machines have been exported to almost 20 countries .
Our service
1. Provide free installation service.
2. Design according to your requiremnts for free.
3. Provede technical assistance and analysis for fee
4. Machine Accissories will be provided for free .
5. Customers can get in touch with us any time by email , phone , etc.
Packages & shipping
All machines are packed in safe standard exporting wood cases .
Frequently asked questions
1.Q: if machines can be customized according to requirements?
A: Yes , definately
2. Q: Lead time for a fully automatic powder coating production line?
A: 25-35 working days.
3.Q: What you can do if my machines have problems?
A: 1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
4.Q :Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
5. Q:If I make Aluminum window and door, how many basic machines required?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine

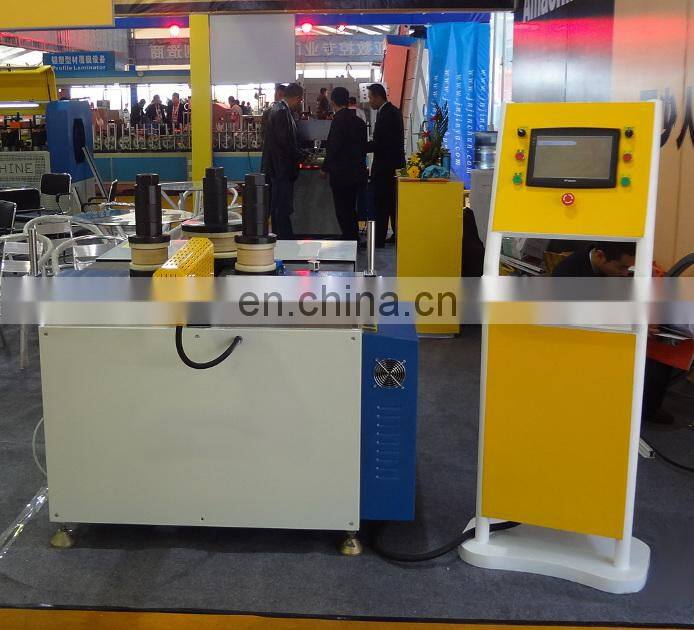

Parts of Exhibitions
