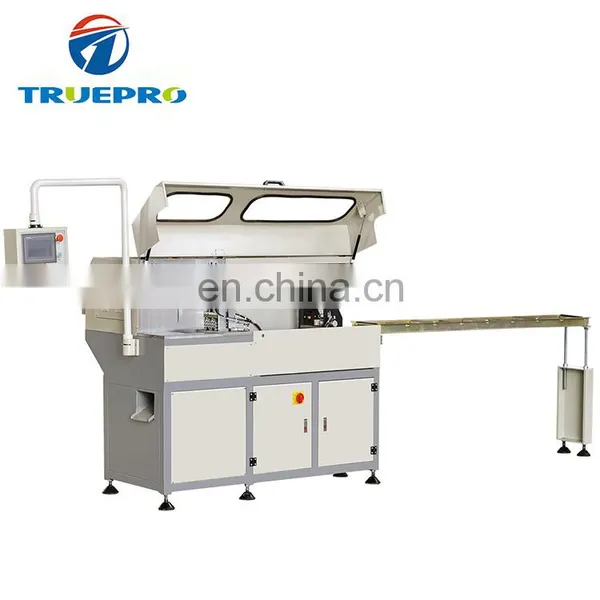

Window Corner Connector Cutting Machine/Aluminum Metal Saw Machinery
Machine Configuration:
♥The machine frame is more thicken than normal.
♥Used CE cable.

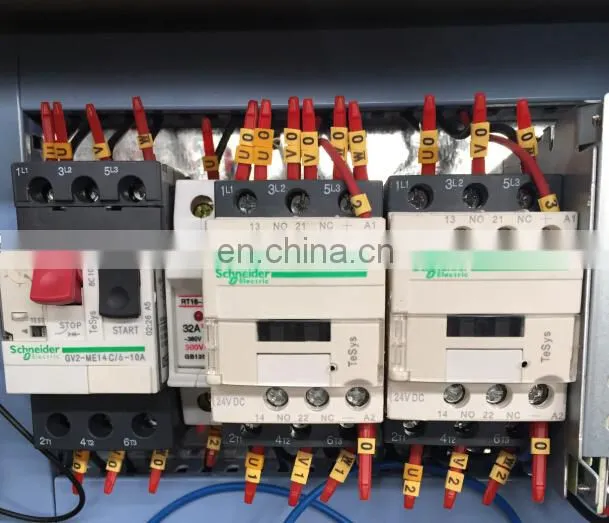

♥SNS trachea, Schneider low voltage electrical appliances.
♥STNC solenoid valve, CNC milling machine control system.
♥Standard five knife (plane up and down, up and down vertical milling and exterior Angle).
| Equipment Description |
Main Feature:
1.Used for aluminum corner connector cutting.
2.Only one time clamping,can achieve 6 meters corner section bar continuous cutting.
3.Feeding motion using linear motion bearing small movement resistance of high precision.
4.Feeding mechanism of automatic feeding system is stable and reliable with high efficiency.
Main Technical Parameter:
Brand |
TRUMP |
Model |
LJJA-CNC-500 |
Power Supply |
380V 50HZ |
Input Power |
3KW |
Air Pressure |
0.5~0.8MPa |
Motor Rotary Speed |
2800r/min |
Saw Blade Specification |
Φ500*Φ30 |
Feeding Length |
5~700mm |
Cutting Width*Height |
135*300mm |
Overall Dimension |
56700*1770*1840mm |
Weight |
About 750Kg |

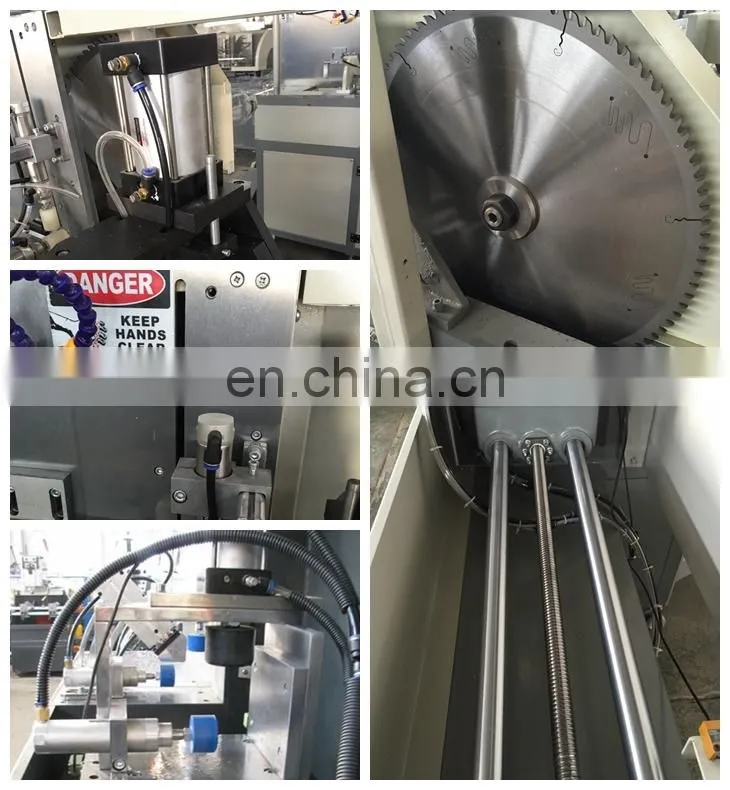

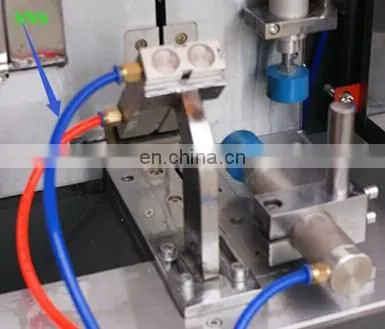

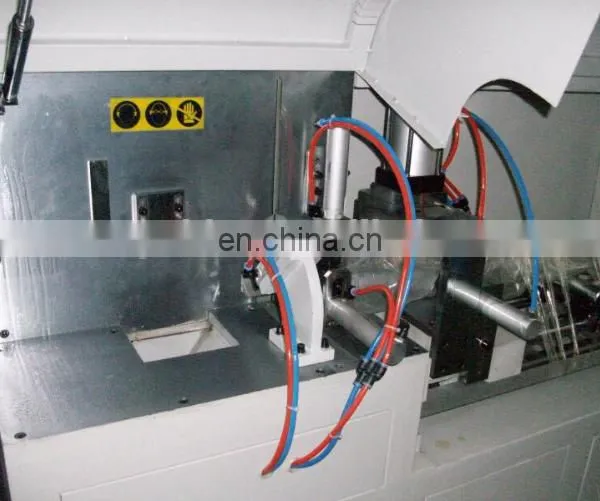

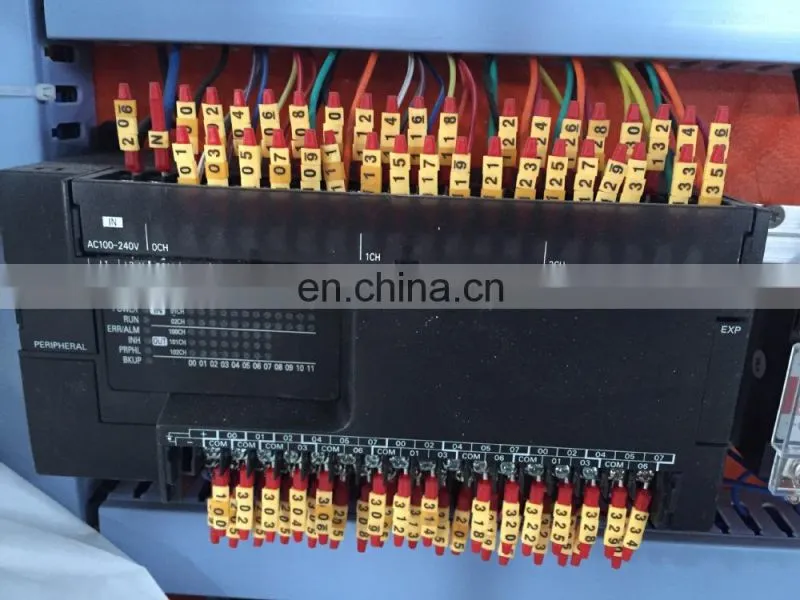

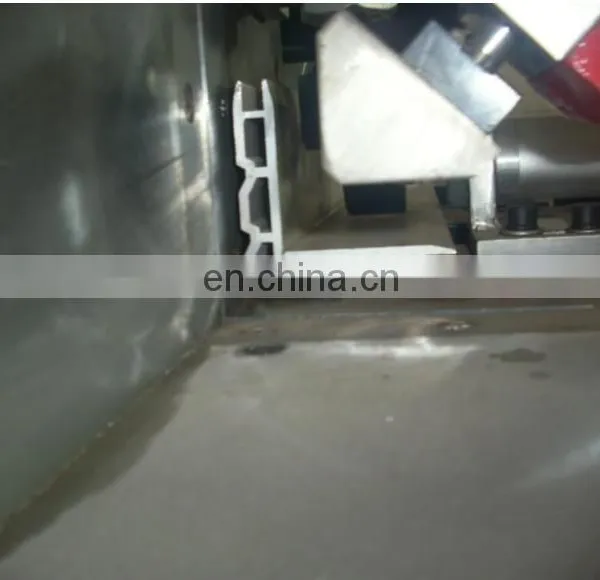

| Some Details Show |

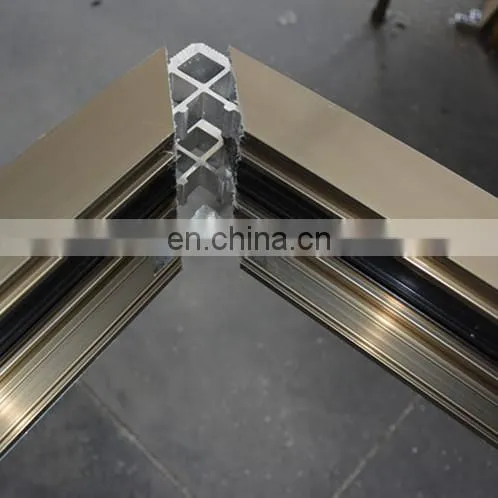

| Sample |
| Our Cooperative Parnters |
Package: Each PC In Wooden Cases.
Delivery Time: within 15 Days After Receiving the deposit.
Our engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, we ensure that customers can work smoothly,
safety in production.And then24 hours technical support by phone, email or skype (email or skype) . 12 Months warranty period
Free traning and friendly English verson manual and operation video CD disk.
