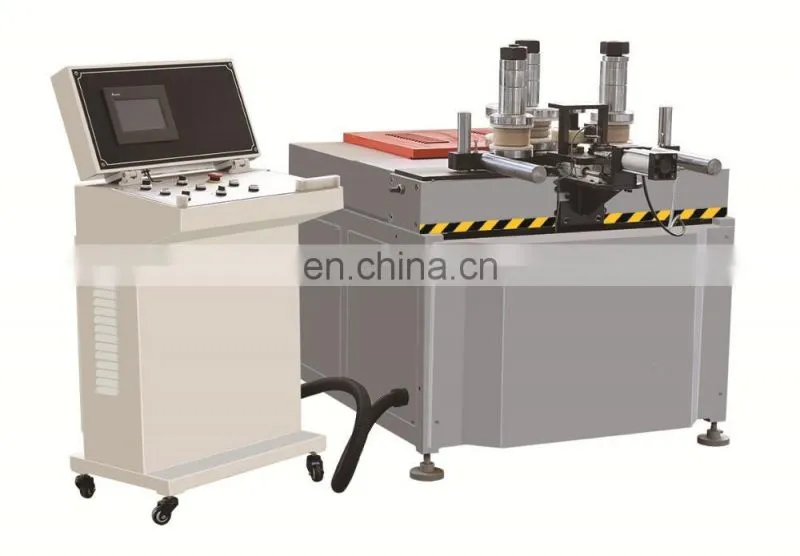

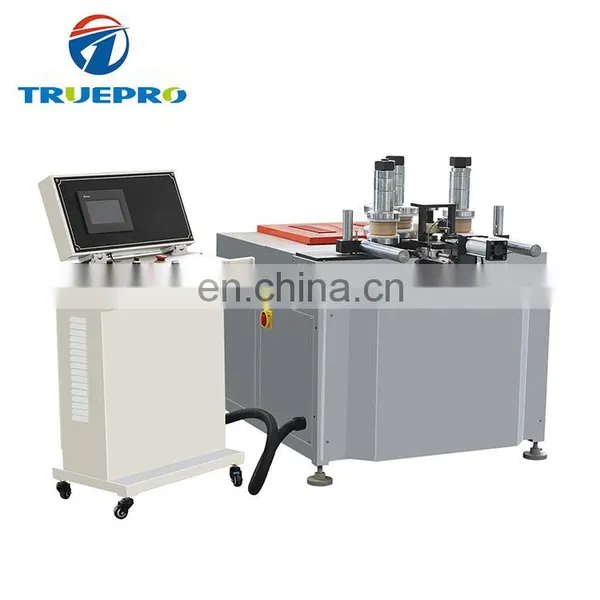

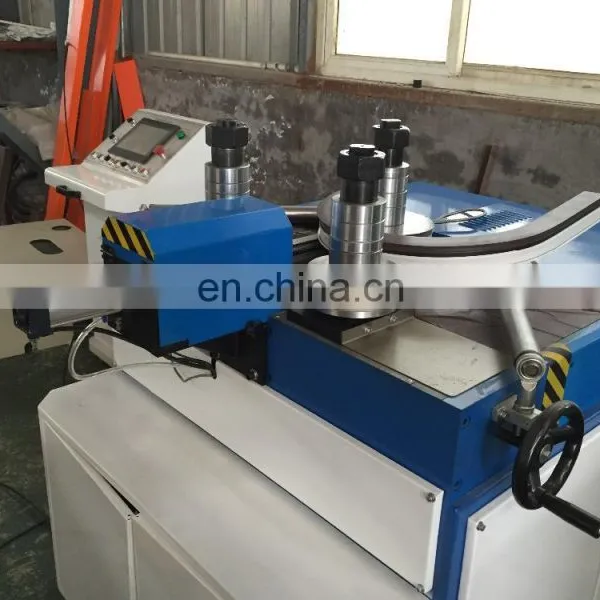

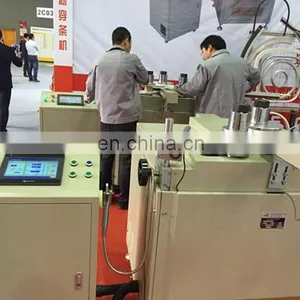

Hot sales aluminum profile/pipe bending machine with CNC control system
1. The machine is mainly used for bending for metal materials ,such as Iron,copper and aluminum and special-shaped material.
It is igeal equipment of curved process for furniture manufactures,wrought iron engineering manufacturers,aluminum alloy doors and windows manufacturers,decorative steel structure enterprise.

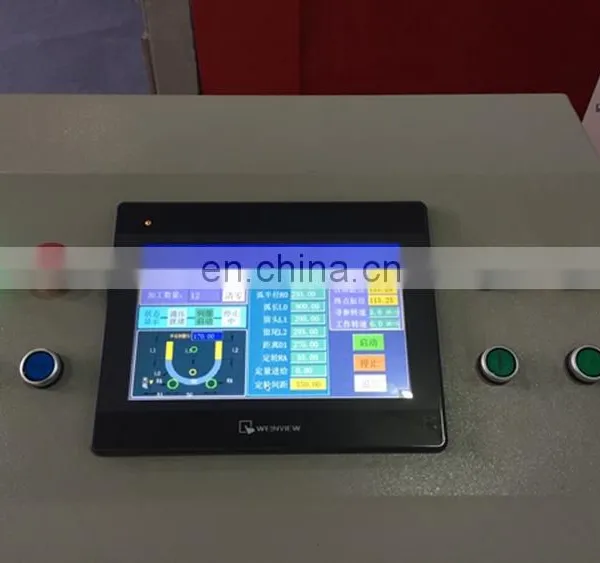

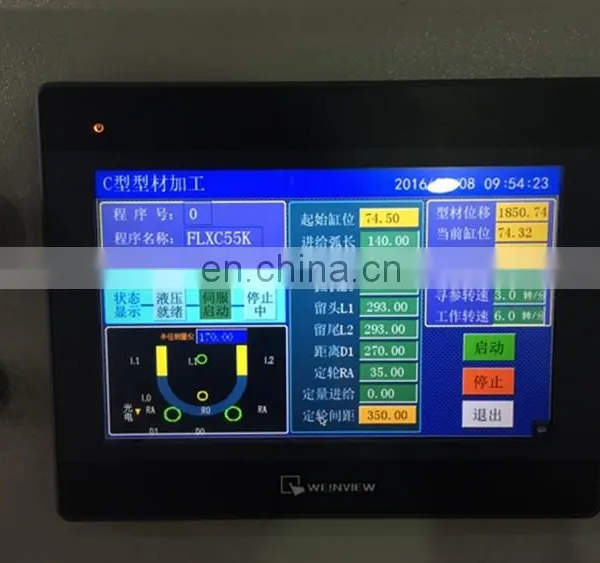

2. The machine adopts CNC controller,which make the machine features easy handling and high precision.
3. Using CNC software,make the bending operation very simple.

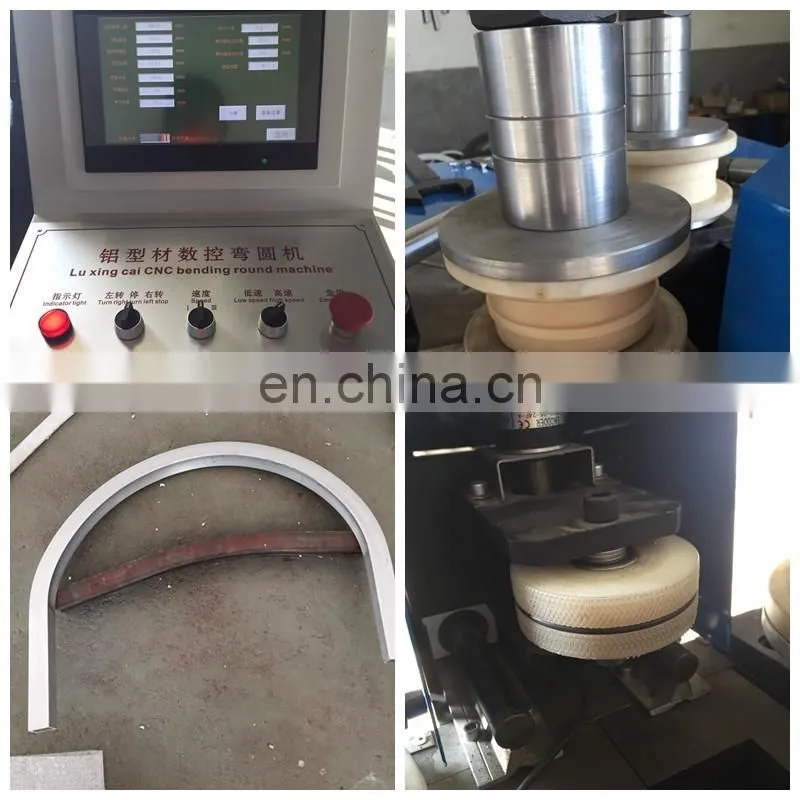

4. It can bend many shapes,such as C-shape,S-shape,U-shape,the whole circle and spring.
5.Capable of detecting material rebound data,eliminate rebound.
Model |
LGW-CNC-13T-1 |
Power supply |
380V 50Hz |
Input power |
4Kw |
Y axial hydraulic thrust |
13T (Max. 20T) |
Repeat positioning accuracy of axis hydraulic cylinder |
0.02mm/<0.01mm |
Max. torque of X axis |
2500N.M |
Three shaft speed |
1-15r/min |
Axial spacing |
320-600mm |
Min. bend radius |
R=150mm |
Spindle diameter |
50mm |
Machinable max. size |
W*H=120*150mm |
Host size |
L*W*H=1200*1100*1400mm |
Operation box demension |
500*300*1200mm |
Weight |
900Kg |
Before payment
Free contact for the most suitable machine
Free professional design for each customer especially.
After sale service
24 hours technical support by phone, email or skype (email or skype) .
1years warranty period
Our senior engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, to realise win-win cooperation.
Payment
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Our company is a manufacturer of window machine, insulating glass processing machine and curtain wall machine with well-equipped testing equipment and strong technical force. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in building trade and other industries. Hope we can cooperate with you.
1. When can we arrange shippment?
We usually arrange shippment within 15 days after getting deopsit,
but customized machines should be more than 25 days.
2.What you can do if my machines have problems?
1) We can send you free components to you if your machines are in guarantee time.
2) We can send our engineers to repair your machines
3.Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passport.
4. If I make Aluminum window and door, how many basic machines do i need?
1).double head cutting saw
2).Lock hole copy milling machine
3).End milling machine
4).Automatic Corner connector automatic cutting saw
5).Single head Corner combining machine
