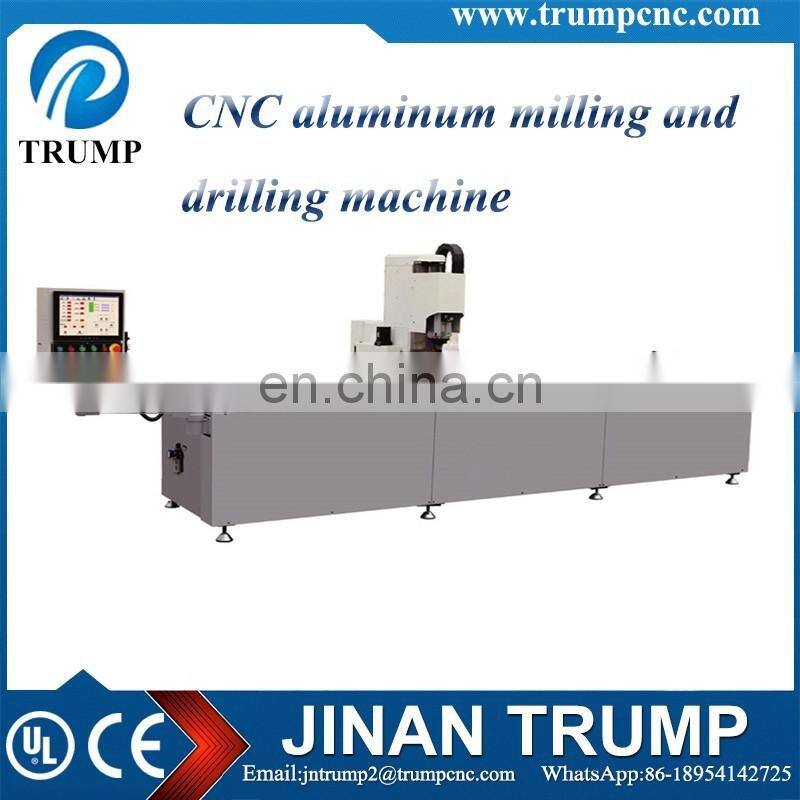

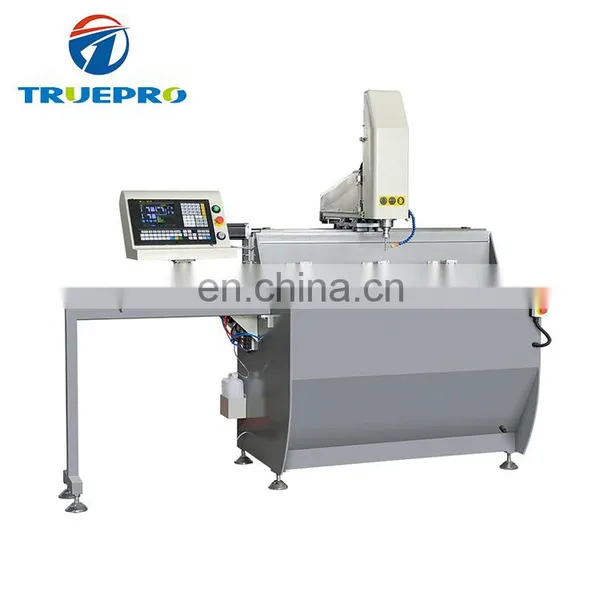

fabricated windows doors processing machinery cnc drilling and milling machine for aluminum profile
| Relative Products |

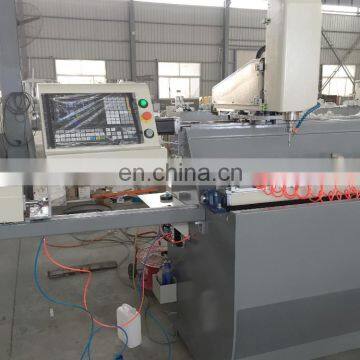

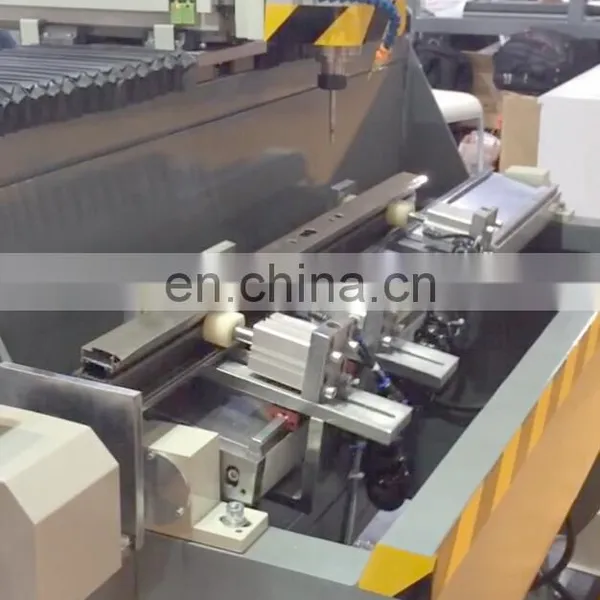

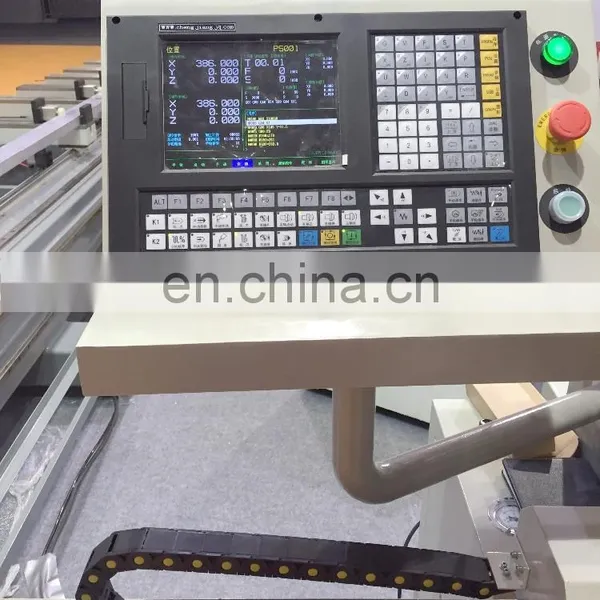

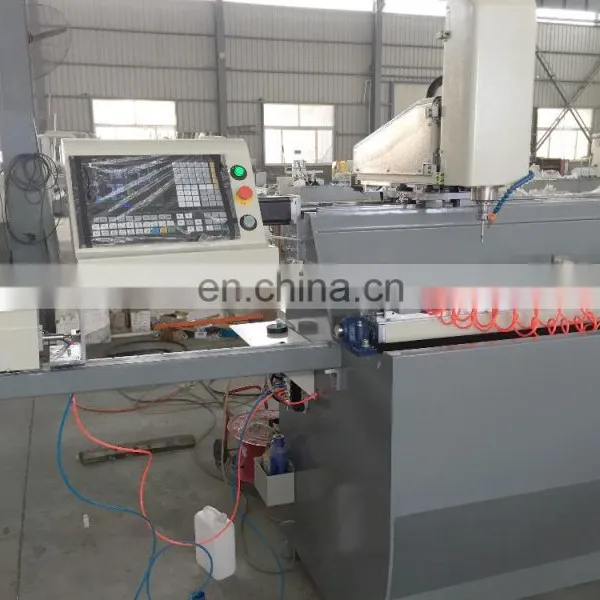

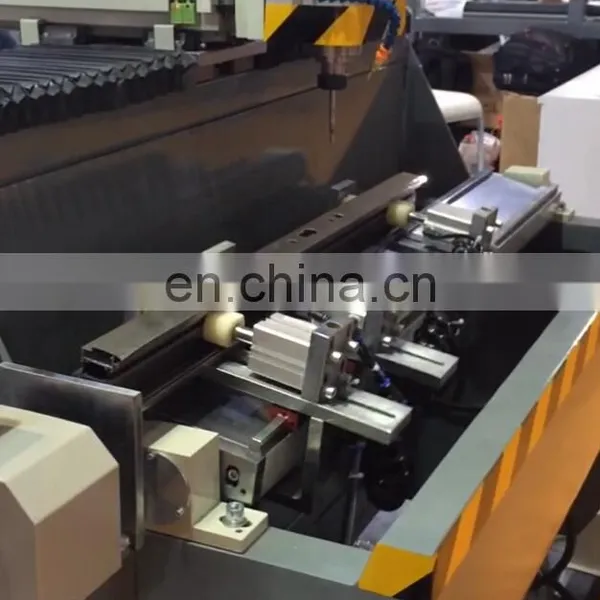

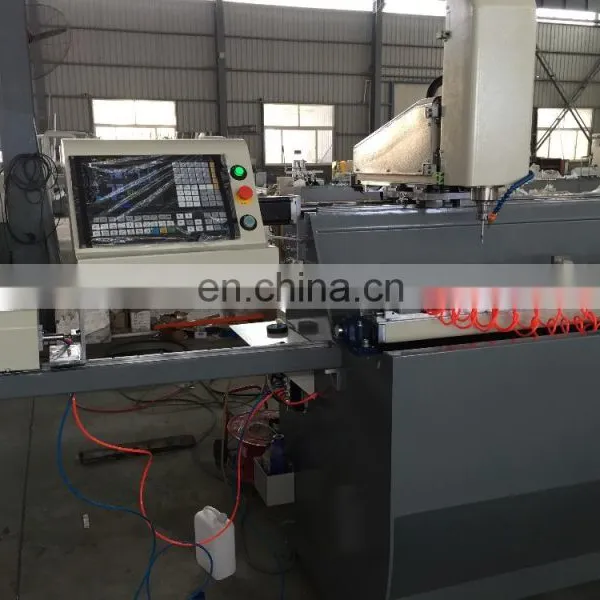

Some Details Show |
| Eqipment Advantages |
1. Used for Aluminumn profile &PVC profiles' shape holes,round holes ect. drilling &milling.
2. Adopts standard Triaxial System,easy operation.
3. Adopts electric spindle with high precision,good security,high stability.
4. X,Y and Z Axis adopts high precision ball bearing conveyor,runs stable.
5. ISO International Standard G code prodramming,easy to operate.
6. The Working table can automatic 0~90° titling,one time profiles loading two sides processing,which ensure the high precision&high efficiency.
| Technical Parameter |
Brand Name | Trump |
Model | CLXF-CNC-1200 |
Power supply | 380V 50Hz |
Input power | 3Kw |
Air pressure | 0.5~0.6MPa |
X-axis speed | 1200mm |
Y-axis speed | 250mm |
Z-axis speed | 250mm |
Processing range | 1000*100*200mm |
Handle type | ER25*Φ8 |
Overall dimension | 2500*1500*1900mm |
Weight | About 700Kg |
| Main Accessory |
PLC | SIEMENS, OMRON,Taiwan Delta |
Solenoid valve | Germany FESTO |
Electrical Button and Switcher | Schneider |
Temperature Controller | OMRON |
Motor | DEDONG Zhejiang |
AC Contactor and Circuit Breaker | Schneider |

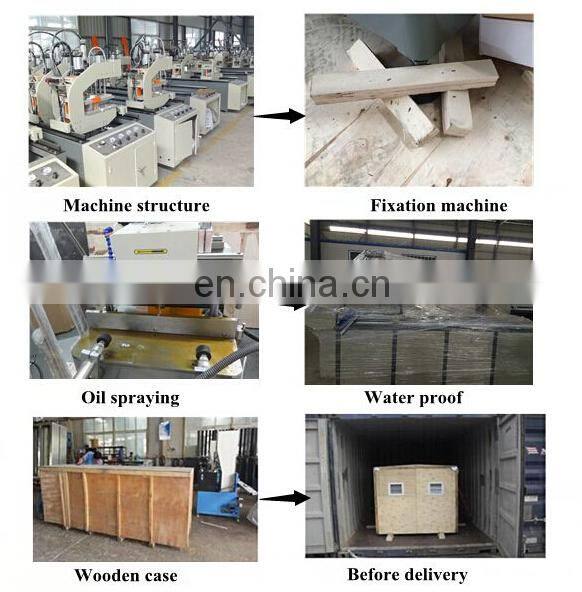

Machines will be packed with steel pallet and standard export wooden case,
to make sure customer will receive the machines they ordered Intact.
Our engineer is available to travel aboard, help the installation, maintenance and training staff.
By offering this support, we make sure the cutomer start the business smoothly, we ensure that customers can work smoothly, safety in production.And then24 hours technical support by phone, email or skype (email or skype) . 12 Months warranty period
Free traning and friendly English verson manual and operation video CD disk.
| Payment terms |
♦ L/C, 30% deposit by T/T,70% spare payment L/C.
♦ T/T, 30% deposit by T/T,70% spare payment before shipment.
♦ Western Union or Paypal.
Our main product:

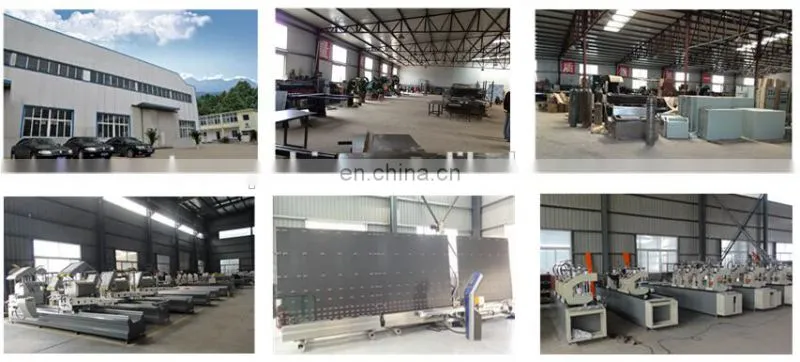

Trump is a manufacturer also trading company of
window machine, insulating glass processing machine and curtain wall machine
Our advantage:
Advance tech,high quality product,competitive price,CE Certification and best service.
| Our Cooperative Parnters |
1.If we have special requirements for your machines, can you make customized one for me?
Answer:We can make customized machine for different customers, for example, different voltage, color, authorized brand for some electrical components.
2. When can we arrange shippment?
Answer:We usually arrange shippment in 15 days after getting deopsit, but customized machines should be more than 25 days.
3.What you can do if my machines have problems?
Answer: a.We can send you free components to you if your machines are in guarantee time.
b.We can send our enineers to repair your machines
4.How many machines do i need to buy if i open a new factory?
Altogether there are five machines.
