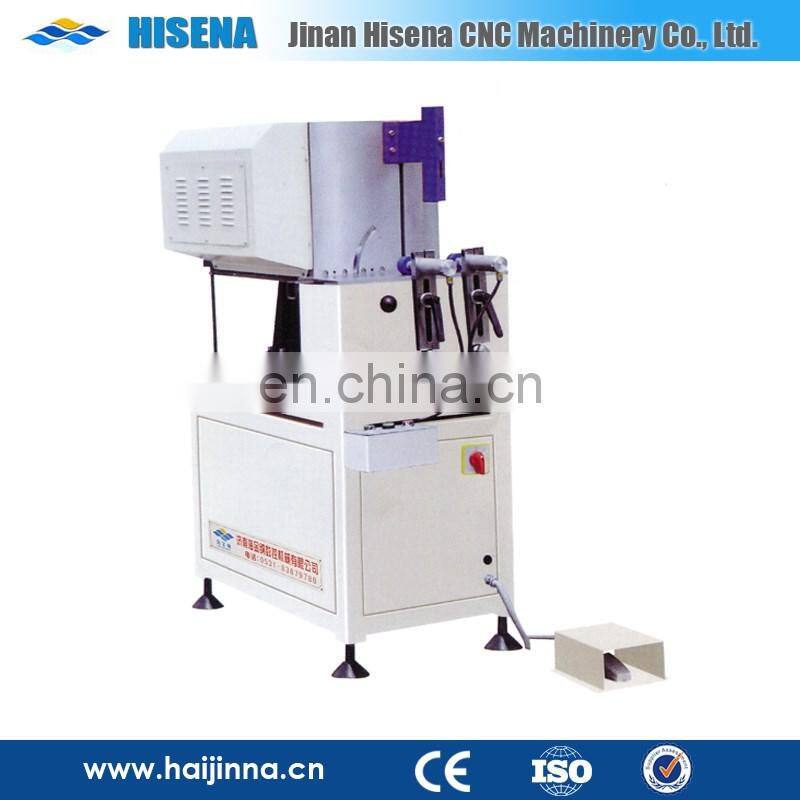

Easy Operation Single Head Cutting Machine for Window Door

Specification
1. LSJ-450 is Single head up Cutting saw with dia. 450mm saw blade

2. with Roller support and Stop Gauge system

   a. Mainly used for cut off the wide Aluminum Profiles

   b. The TCT saw blade for the diameter as big as dia.500mm as well as high speed and high cutting   precision.

   c. The saw blade can swing to required angle between 90° and 45 °.

 Technical Parameter

Saw cutting (width*height)             240*150mm in 90 ° /240*130mm in 45 °

Main motor power                            2.2KW

Main motor rotation speed               2840r/min

Saw blade dimension                       Ø 450*Ø30*Ø120T

Saw blade swing angle                    90° - 45°

Saw blade feeding speed                 0-3m/min

Air pressure                                   0.6~0.8Mpa

Working voltage                               3phases 380volts and 50hz.

Over all dimension (L*W*H)           5000 (include the roller support)*1300*1500mm

Weight                                             600kg

Each product will be carefully packed with plastic film package,to make sure it will be arrived safety.

If choose wooden package,After inspection the goods are packed in plastic film package and then carefully packed in wooden cartons.

Jinan Hisena CNC Machinery Co., Ltd.has developed the assembly line equipment for door-window, curtain walls and Insulating glasses process. The operation of high precision, advancement and specialty makes the enterprise well-known. She sets an example for her pure quality and excellent service. So she becomes the reliable cooperative partner of the door-window enterprise for her responsibility.

1). We will provide all spare parts needed for maintenance of the equipments.

 2). During the period of guarantee, within 1 years (12 months), the seller we will be responsible for the damage due to the defects in designing and manufacturing.

 3).If you need installation, please inform us, we can send engineer to your factory to install and test machines for you.
