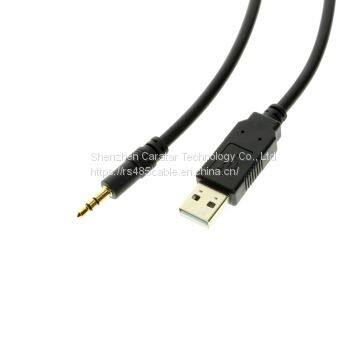

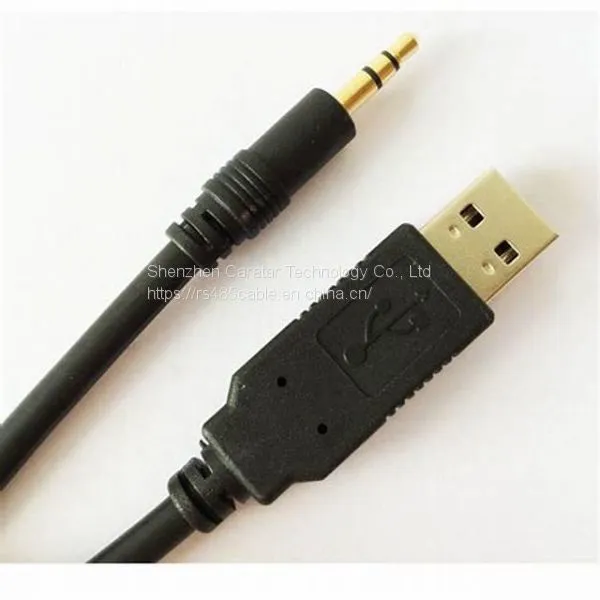

USB Interface Type and Other Type FTDI USB to TTL 3.3V 3.5mm Audio Jack Serial Cable
1.FTDI FT232R Chipset
2.3.5mm audio jack output
3.RoHS & CE approved
4.Own factory,6 year experience of making cables
| Type | USB to Serial TTL Cable (OEM FTDI Cable) |
| Connector 1 | USB C Male or USB A Male |
| Connector 2 | 6Pin connector,6 open wires,DC3.5MM Plug optional |
| Chipset Used | FT232/CP2102/PL2303 optional |
| Cable | 3 core, 4 core, 6 core available |
| Pinout | VCC, TXD, RTS, RXD, CTS, GND |
| Support | WINDOWS7/8/98/ME/2000/XP,Vista32,Mac8.6 or later,LINUX O.S,etc |
FTDI USB to TTL Serial Cable TTL-232R-3V3-AJ
FTDI based USB to TTL Serial Cable are designed using the standard FT232RL chipset. The cables provide a fast, simple way to connect devices with a TTL level serial interface to USB.
Our circuits include regulatoin and short circuit protection unlike many other imported cables.
Please feel free to contact us for high volume sales or custom development.
The cables are available with a DC3.5mm audio jack and are also available at TTL levels of +5v.
Simple and Easy way to give USB support to your designs
Connects directly to microcontroller UART or I/O pins
PC communicates as a standard serial device
All circuitry integrated into sleek, moulded USB plug
Compatible with legacy software.
Based on FTDI FT232RL
DC3.5mm audio jack TIP, RING ,SLEEVE (GND, TX, RX)
Supports data rates up to 3 Mbaud allowing a significant performance increase over a standard serial port.
Allows devices to be powered from the USB port.
All I/O are protected from shorts and ESD.
Drivers Supplied by FTDI
Supports customised end connector designs.
Cable Length 1.80m (6 ft)
