1. Application
This production line works to produce pure aluminum rod or alloy aluminum rod（Al-Ti-B） in diameter ofφ9.5mm orφ12mm by means of continuous casting and rolling.
2. Composition

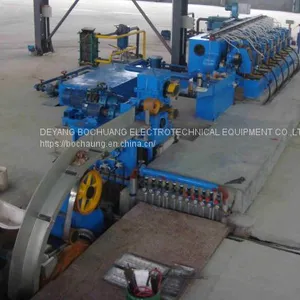

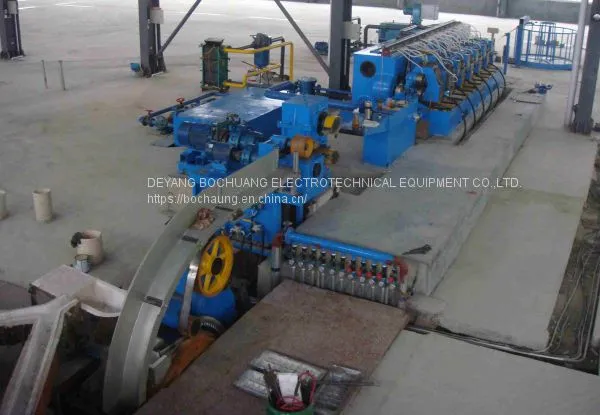

This production line is composed of melting furnace and holding furnace (prepared by user) 4-wheel casting machine and pouring ladle, roller shears, cast bar feed-in device, rolling mill, alloy rod cooling systems, coiler, electrical control system, rolling mill lubrication system and emulsion system, etc.
3. Main Technical Data
3.1.Diameter of casting wheel: φ1400 mm
3.2. Cast bar delivery speed: 2.72~7.35.mpm
3.3. Cross sectional area of cast bar: 1490 mm2
3.4. Motor of casting machine: 4kW, AC, 1000rpm
3.5. Motor of rolling mill: 220kw, 1000rpm
3.6. Final rolling speed: 2.5~3.6m/sec.
3.7. Output: approx. 2.0~2.5 t/h
3.8. Outlet rod diameter: φ9.5mm, Φ12mm
3.9. Number of stands: 12 (1 stand with horizontal roll, 1 stand with
vertical roll, 5 stands with Y-shaped rolls of
upper driving, 5 stands with Y-shaped rolls of lower driving)
3.10. Pass system: Ellipse - circle+ arc triangle – circle
4.11. Nominal diameter of roll: Φ255mm
3.12. Diameter of coil: Φ2000mm
3.13. Weight of coil: approx. 1.5~2 tons/basket
3.14. Total installed power: 350kw（not include the power fo furnace）
