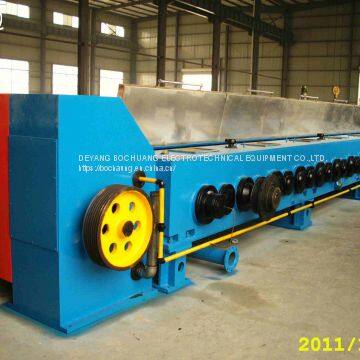

Copper Rod Breakdown Machine With Continuous Annealer

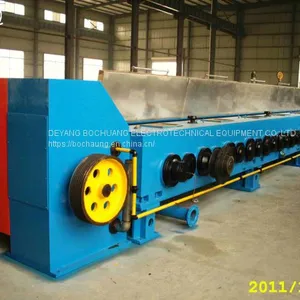

Copper Rod Breakdown Machine With Continuous Annealer thumbnail-1
Copper Rod Breakdown Machine With Continuous Annealer thumbnail-2

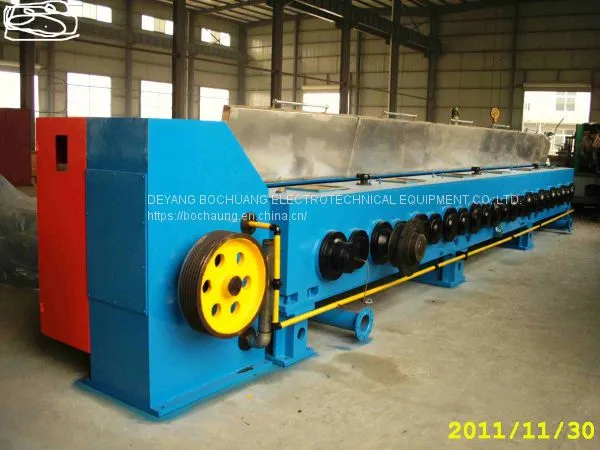

Copper Rod Breakdown Machine With Continuous Annealer photo-1

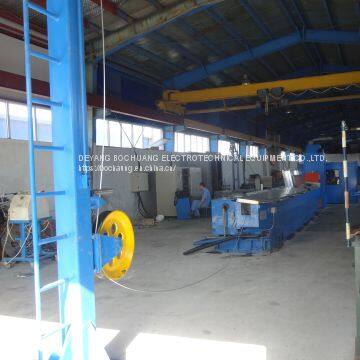

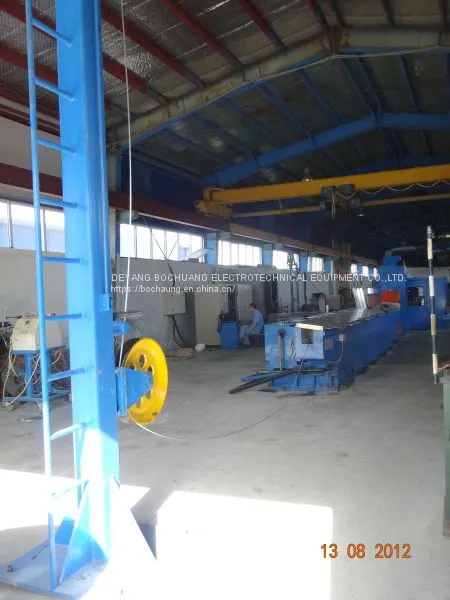

Copper Rod Breakdown Machine With Continuous Annealer photo-2
US$ 150000 - 200000 MOQ: 5 Sets
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2005
Annual Export Value:
US$2.5 Million - US$5 Million
Contact Supplier Request Quote Chat Now
Deyang Bochuang Electrotechnical Equipment Co.,ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Chongqing port
Delivery Detail:
100 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us

This machine works to draw Φ8mm copper rod into copper wire ranging from Φ2.5~ 4.0mm and further softens the wire by direct annealing, and then the wire is taken up into Φ630 or Φ500 bobbin by dual spooler or coiler by Φ800 coiler. The product conforms to the the requirements of the Chinese National Standard GB3953.



1.      Main Technical Data

1.1. Input diameter:                   Φ8mm cold-rolled copper rod

1.2. Output diameter:                  Φ2.5~4.0mm

1.3. No. of drawing dies:               9

1.4. Diameter of capstan:               Φ450mm

1.5. Max. delivery speed:               16m/sec.

1.6. Take-up motor                    2x22kw (DC)

1.7. Mode of annealing                 DC annealing

1.8. Main motor                       160kw (DC)

1.9. Motor of final capstan              75kw (DC)

1.10. Coiling motor                    22kw

1.11. Max. annealing power             240kva



2.      Composition

2.1. Pay-off stand                      1 set

2.2. Drawing machine proper             1 set

2.3. Horizontal annealer                 1 set

2.4. Tensioner for accumulator            1 set

2.5. Dual spooler forΦ630 orΦ500 bobbin   1 set

2.6. Φ800 coiler                       1 set

2.7. Pointing & threading unit            1 set

2.8. Electrical control system             1 set

2.9. Steam generator                    1 set

2.10. Gearbox lubrication system          1 set


Product Tags: copper wire making machine , high speed drawing machine , soft copper wire making machine
