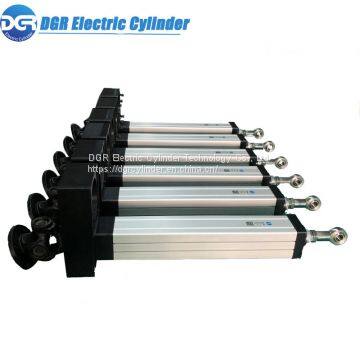

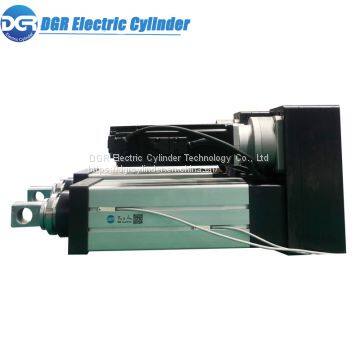

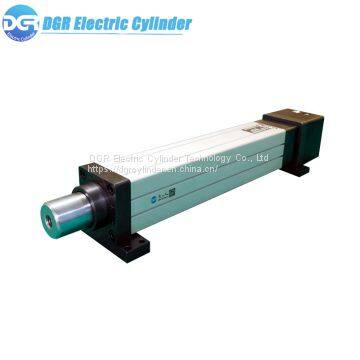

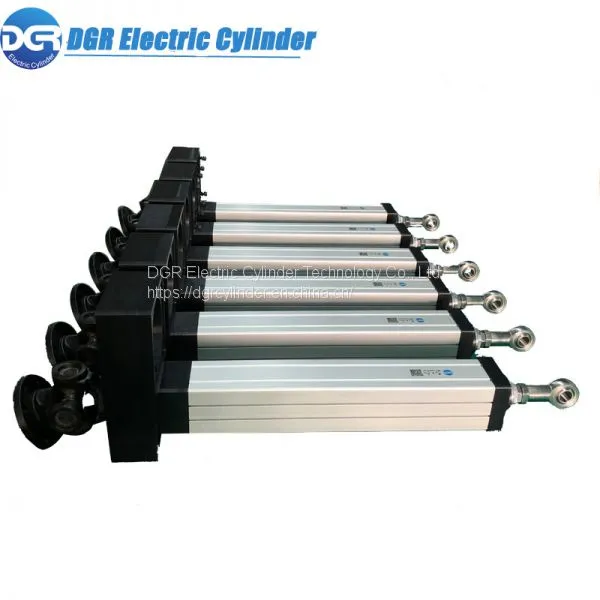

High Speed Rod Tubular Electric Cylinder For Motion Theater
- Shenzhen
- T/T L/C PayPal Other
- 15 days
You May Like
-
High Quality Precision Control Programmable Long Life Recommendation Servo Linear Actuator
-
Multi-mounting Method Fast Servo Electric Linear Actuator For Six-degree-of-freedom Motion Platform
-
Inline Heavy Duty Telescopic Large Load Circular Stainless Steel Electric Cylinder For Packaging Machinery
-
Simple Mounting Stepper Motor Continuous Working Push-pull Linear Actuator
-
Long Stroke Precision Control Waterproof Linear Actuator
-
Low Price Ball Screw Linear Actuator For Push Pull Lifting
Product Details
| Brand Name | Superworker | Place of Origin | China | |
| Model Number | DGR-61-I | Power | Other, Electric | |
| Standard or Nonstandard | Other, Standard or Nonstandard | Structure | Rotary Cylinder | |
| Maximum Stroke | 1000mm | Body Material | Aluminum |
Product Description
DGR-61-I Sleek Rod Tubular Electric Linear Actuators is of high speed, compact design and competitive price, DGR electric cylinder technology supplies electric linear actuators with superior performance, the service life is more than 10000km, with one year warranty and lifetime maintenance services.
Model number indications:
1. DGR-Electric cylinder series
2. 61-Cylinder bore
3. T5-Screw Lead , T5=5mm , T10=10mm
4. 300-Stroke length In mm
5. I-Motor mount, Inline-I, Parallel-U
6. SM86-Motor Brand/Power, Stepper motor: SM42/57/60/86/110, Panasonic 100=100W, Mitsubishi 400=400W, YASKAWA 500=500W, DELTA ........
7. i1-Reduction ratio, i1=1:1, i1.5=1.5:1, i2=2:1, i2=2:1,……, i100=100:1
Parameters:
1. Motor power/ Motor rated torque:
Motor power/ Motor rated torque: 400W / 1.3N.m
Motor power/ Motor rated torque: 750W / 2.4N.m
2. Drive Type: Grinding ball screw
3. Position repeatability: ±0.02mm
4. Screw lead/ Max.Speed
Screw lead/ Max.Speed: 5mm / 250mm/s
Screw lead/ Max.Speed: 10mm / 500mm/s
5. Max.Thrust: 400kg
6. Effective stroke length: 20-1000mm
7. Basic weight 0 stroke inline installation: 3.4kg
8. Basic weight 0 stroke parallel installation: 4kg
9. Weight per 100mm stroke: 0.8kg
The weight of the electric cylinder is an estimated value and it is for reference only
10. Magnetic sensor switch: Three-wire NPN/PNP Magnetic Switch x 3, Length: 2m
Features of Sleek Rod Tubular Linear Actuators
1. Sleek tubular design, compact structure
2. High-speed, high-precision positioning features;
3. High service life: over 10000Km, one year warranty;
4. Heavy duty load capacity
5. Self-locking
6. Can be installed in all directions
7. Can choose a variety of AC servo motor or stepper motor drive: such as Delta, Mitsubishi, Panasonic, Yaskawa, and other brands;
8. Delivery for standard products: within 7-10 working days
