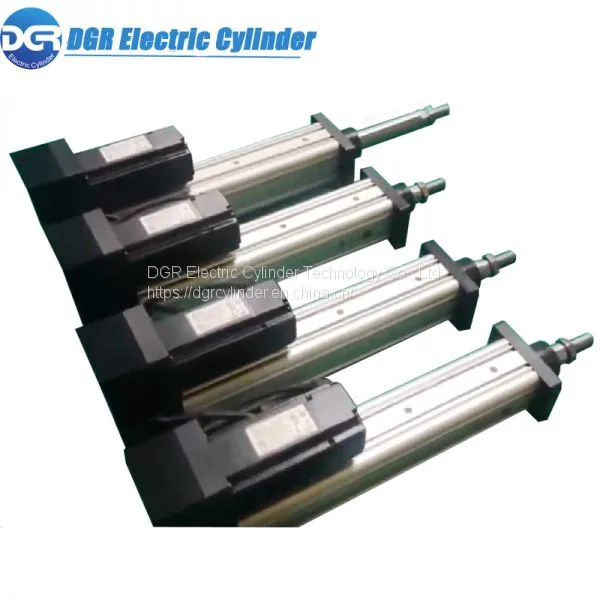

Multi-mounting Method Fast Servo Electric Linear Actuator For Six-degree-of-freedom Motion Platform

DGR-LT-64 Multi-mounting Method Electric linear actuator Model number indications:

DGRLT64 Fast Servo Electric Linear Actuator Technical Data

Note:

1. If you need to know the ball screw life, please contact customer service for detailed consultation;

2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.

3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

DGRLT64 Electric Linear Actuator For Six-degree-of-freedom Motion Platform Motor Selection List

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;

3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

Features of DGRELT64 Fast Servo Electric Linear Actuator

High Accuracy

The servo motor is used as the drive mechanism, and the servo control system is very high, which can achieve precise positioning of about 0.01mm.

High Reliability

Highly reliable

Long Life

Use high-precision transmission parts such as ball screws to reduce friction and increase the service life of electric cylinders

Wide Thrust Range

Select famous branded roller ball screws, ball screws and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.

Careful Material Selection

1.  Adopting the Dayton Aluminum Alloy 6431 standard square tube as the cylinder material,

2. Select sensor components of internationally famous brands .

3. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure

4. Select high-quality grease to minimize friction, which enables the drive efficiency to reach up to 90%.

Refined Design and Processing

1. The connection between the screw nut and the piston rod is rigid

2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

3. All screw threads are coated with screw locking adhesive after commissioning to ensure the equipment is stable and trouble-free.

4. Use domestic ball screw and bearing products, light load output, high cost performance

Duty Cycle

Long-term work and high-strength, high-speed, high-precision positioning

Complete Testing

Professional factory inspection: including appearance, speed, noise decibels, etc.

Excellent Service

1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)

2. DGR Electric cylinder can be custom engineered for customer’s particular application.

3.5 years’ experience in electric cylinder production.

Wide Selection of Motors

A variety of AC servo motors or stepper motors for option
