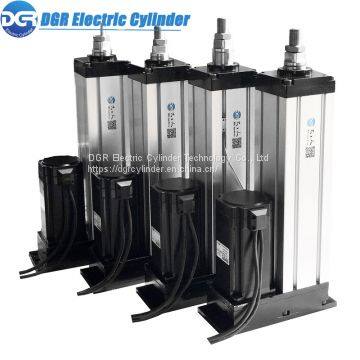

Rotary High precision servo Linear Lctuator For Recliner Chair

DGR-LT-93 High precision servo Linear Actuator Model number indications:

DGRLT	93	T5	L2000	S160
Light Duty Electric Cylinder	Bore/size	Lead T5=5mm  T10=10mm	Stroke L2000=2000mm/s	Rated speed S160=160mm/s
	F5	I/U	P2000	i1
	Rated load F5=5KN	Motor mounting Inline mounting ：I Parallel mounting：U	Power P2000=2000W	Gear Ratio i1=1:1 i1.5=1.5:1 …… i100=100:1

DGRLT93 High precision servo Linear Actuator Technical Data

Product Series	DGRLT93
Screw lead / pitch (mm)	5	10	25	50
Max. Power of Motor (W)	2000
Max. Rated Thrust (N)	8000	8000	8000	5000
Max. Speed (mm/s)	167	250	600	1000
Rated Driving Torque (N.m)	7	16	35	75
Max. Ball Screw Diameter (mm)	25	25	25	25
Rated Dynamic Load of Ball Screw (kgf)	1724	2954	2074	976
Max. stroke (mm)	2000
Axial Backlash (mm)	0.02-0.04
Lead Error Every 300mm (mm)	0.023
Repeatability Accuracy (mm)	0.02

Note:

1. If you need to know the ball screw life, please contact customer service for detailed consultation;

2. The max. thrust and the max. speed can not be reached at the same time. Different motor and gear boxes will be used.

3. If the Max. stroke exceeds 500mm, it is recommended to add a guiding device;

Note: If you require beyond the specification chart above, please contact us directly, we can able to customize according to customers’ requirements on the load (up to 20 ton), speed(up to 2000mm/s) and stroke (up to 2800mm).

 DGR-K-LT-93 Rotary linear actuator Motor Selection List

Product Series	DGRLT93
Flange Size of Optional Servo Motor Series (mm)	100/ 110
Flange Size of Optional Stepper Motor Series (mm)	110
Flange Size of Optional Gear Box Series (mm)	120

Note:

1.DGR electric cylinder servo motor brands include Panasonic, Mitsubishi, Yaskawa, Delta, Syntron, Motec, and Tuoda;

2. DGR electric cylinder stepper motor brands include Japan Samsr, Leadshine, MOONS', etc;

3. The DGR electric cylinder gear box brands include Nidec-Shimpo, Taiwan KunTai, Taiwan Li Ming, and Shanghai Jinmo;

4. The cylinder can be equiped with a motor or gear box, and the motor brands and gear box brands can be designated by the customers, please kindly contact our sales for more detailed information;

Features of DGRELT93 Rotary linear actuator



High Accuracy

High precision, the processing of key parts is completed by CNC machining, and the machining accuracy is within 0.02mm.

High Reliability

Highly reliable, safety factor>2 ( PS: safety factor for key parts > 4), which is in compliance with metallurgical standard.

Long Life

Run over a distance of 100,000km

Wide Thrust Range

Select famous branded roller ball screws, ball screws and lead screws which are made of high-quality materials for our electric cylinders in order to reach double the theoretical rated push-pull force.

Careful Material Selection

1. Adopting the Dayton Aluminum Alloy 6431 standard square tube as the cylinder material, the appearance is exquisite

2. Key components are made of high quality materials and processed with vacuum heat treatment or surface treatment (including: coating, azotizing, oxidation)

3. Select branded bearings and gears to achieve the best mechanical performance in mechanical structure

4.The ball screw is used as the transmission member to realize the linear reciprocating motion, reducing the motion friction and the transmission efficiency is over 90%.

Refined Design and Processing

1. The connection between the screw nut and the piston rod is rigid

2. Snap fastener will be required to locate the part in its fixed position to avoid assembly errors that affect mechanical properties.

   3.Adopt domestic ball screw and bearing products, light load output, high cost performance

Duty Cycle

Ball screws are used for frequent operation of electric cylinders, the duty cycle is ensured to be greater than 50% or continuous operation.

Complete Testing

Professional factory inspection: including appearance, mechanical properties, stability, noise decibels, etc.

Excellent Service

1. Each DGR electric cylinder is backed by a lifelong tracking service to ensure it can be used normally over its life cycle. (including: handling product failure, providing spare parts and technical support)

2. DGR Electric cylinder can be custom engineered for customer’s particular application.

4.All customer requirements will be responded within 12 hours

Wide Selection of Motors

1. A variety of AC servo motors or stepper motors for option: such as Delta, Mitsubishi, Panasonic, Yaskawa and other brands

2. Motor comes with brake to ensure secure operation.
