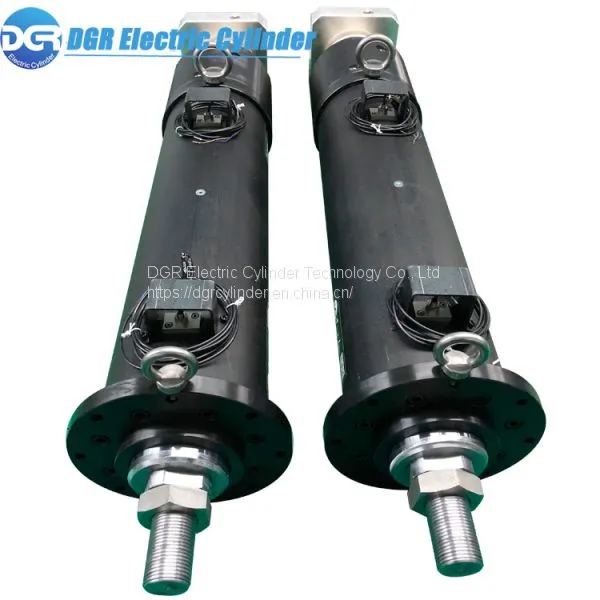

The Cylinder bore of DGR-100 I Electric Cylinder model is 100, can load heavy duty, can be driven by AC motor, DC motor, servo motor, stepper motor, etc. Precise positioner, ideal pneumatic cylinder and hydraulic cylinder replacement.
Model designations:
1. DGR-Electric cylinder series
2. 100-Cylinder bore
3. T5-Screw Lead , T5=5mm , T10=10mm
4. 300-Stroke length In mm
5. I-Motor mount, Inline-I, Parallel-U
6. SM86-Motor Brand/Power, Stepper motor: SM42/57/60/86/110, Panasonic 100=100W, Mitsubishi 400=400W, YASKAWA 500=500W, DELTA ........,
7. i1-Reduction ratio, i1=1:1, i1.5=1.5:1, i2=2:1, i2=2:1, i100=100:1
Parameters:
1. Motor power / Motor rated torque:
Motor power/ Motor rated torque: 1000W / 4.7N.m
Motor power/ Motor rated torque: 1500W / 7.1N.m
2. Drive Type: Ball screw
3. Position repeatability: ±0.02mm
4. Screw lead/ Max.Speed
Screw lead/ Max.Speed: 5mm / 80mm/s
Screw lead/ Max.Speed: 10mm /150mm/s
5. Max.Thrust : 1000kg
6. Effective stroke length: 50-1500mm
7. Basic weight 0 stroke inline installation: 9kg
8. Basic weight 0 stroke parallel installation: 12kg
9. Weight per 100mm stroke: 2.5kg
The weight of the electric cylinder is an estimated value and it is for reference only
10. Magnetic sensor switch: Three-wire NPN/PNP Magnetic Switch x 3, Wire Length: 2m
Features:
1. High mechanical efficiency, typically 90%
2. Parallel or in-line motor mounting options retained
3. Highly dynamic, precise positioning with high repeat accuracy.
4. High speed driving is possible whether the load is light or heavy
5. High service life: over 10000Km, one year warranty;
6. Can choose a variety of AC servo motor or AC/DC stepper motor drive: such as Delta, Mitsubishi, Panasonic, Yaskawa, and other brands;
7. Delivery time for standard electric cylinders: within 10 working days
