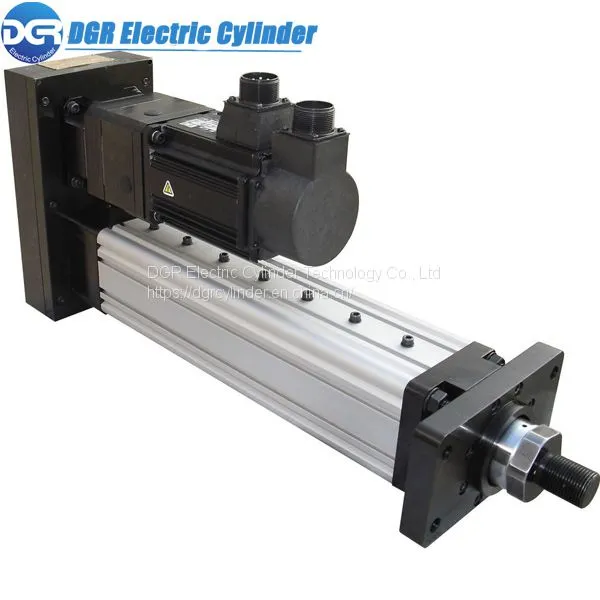

DGR-100-U High Force Electric Linear Actuators supplied by our factory are self-locking. So they do not need energy when they stand still. This makes the electric cylinders to be an interesting alternative to pneumatic and hydraulic actuators when it comes to safety.
Model designations:
1. DGR-Electric cylinder series
2. 100-Cylinder bore
3. T5-Screw Lead , T5=5mm , T10=10mm
4. 300-Stroke length In mm
5. U-Motor mount, Inline-I, Parallel-U
6. SM86-Motor Brand/Power, Stepper motor: SM42/57/60/86/110, Panasonic 100=100W, Mitsubishi 400=400W, YASKAWA 500=500W, DELTA ........,
7. i1-Reduction ratio, i1=1:1, i1.5=1.5:1, i2=2:1, i2=2:1, i100=100:1
Parameters:
1. Motor power / Motor rated torque:
Motor power/ Motor rated torque: 1000/4.7 W/N.m
Motor power/ Motor rated torque: 1500/7.1 W/N.m
2. Drive Type: Ball screw
3. Position repeatability: ±0.02mm
4. Screw lead/ Max.Speed
Screw lead/ Max.Speed: 5/80 mm/mm-s
Screw lead/ Max.Speed: 10/150 mm/mm-s
5. Max.Thrust : 1000 kg
6. Effective stroke length: 50-1500 mm
7. Basic weight 0 stroke inline installation: 9 kg
8. Basic weight 0 stroke parallel installation: 12 kg
9. Weight per 100mm stroke : 2.5 kg
The weight of the electric cylinder is an estimated value and it is for reference only
10. Magnetic sensor switch: Three-wire NPN/PNP Magnetic Switch x 3, Wire Length: 2m
Features:
1. The cast aluminum body is a compact and light weight
2. Providing mounting in vertical or horizontal position
3. Precision ball screw ensures exceptional thrust and speed capability
4. High service life: over 10000Km, one year warranty;
5. Can choose a variety of AC servo motor or AC/DC stepper motor drive: such as Delta, Mitsubishi, Panasonic, Yaskawa, and other brands;
6. Delivery time for standard electric cylinders: within 7-10 working days
