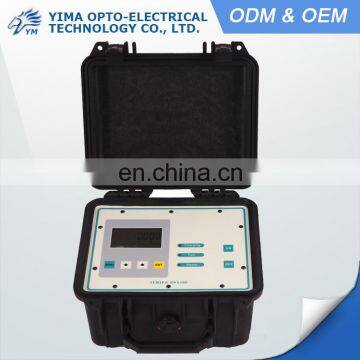

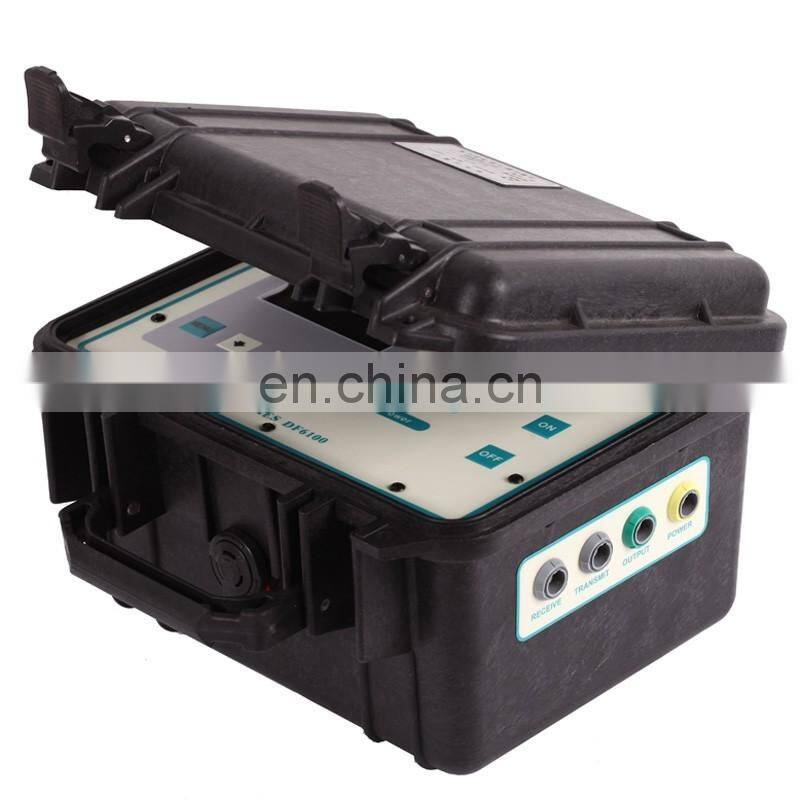

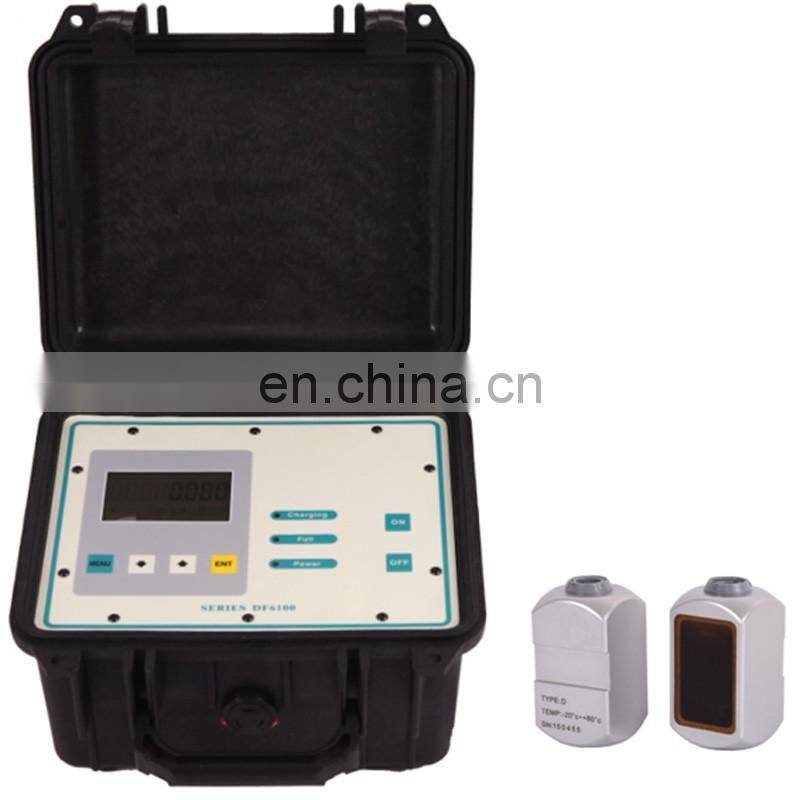

DF6100-EP Doppler Portable Ultrasonic Flow Meter

DF6100-EP Doppler Portable Ultrasonic Flow Meter

Series DF6100-EP Doppler Portable Ultrasonic Flow Meter is designed to measure volumetric flow of within closed conduit, the pipe line must be full of liquids, and there must be a certain amount of air bubbles or suspended solids in liquid.

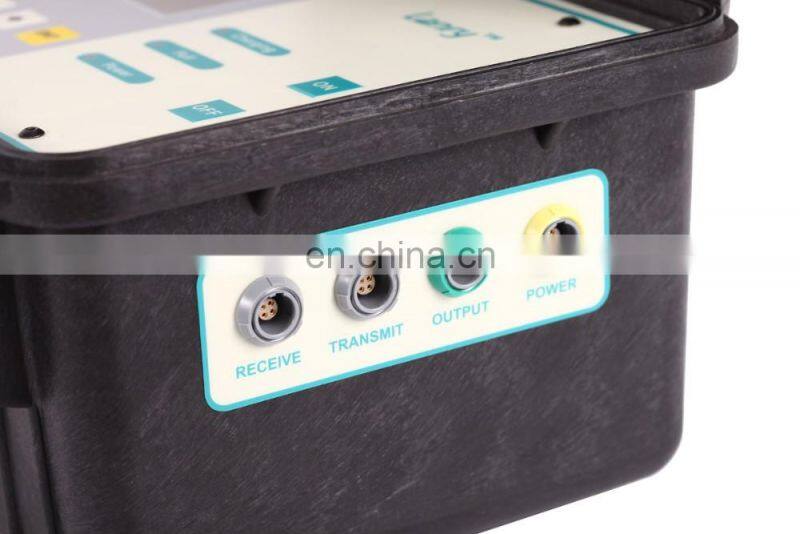

The Doppler ultrasonic flow meter can display flow rate and flow totalizer, etc., and is configured with 4-20mA, OCT outputs

Features:

 It is suitable for pipe sizes ranging from 40 to 4000mm
 For dirty liquids, a certain amount of air bubbles or suspended solids shall be contained
 Excellent low flow rate measurement ability, low to 0.05m/s
 A wide range of flow measurement, high flow rate can reach 12m/s

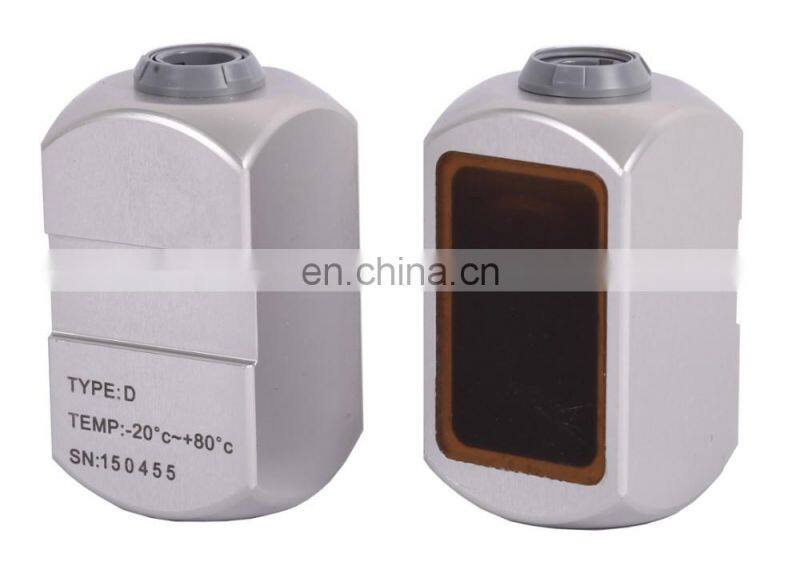

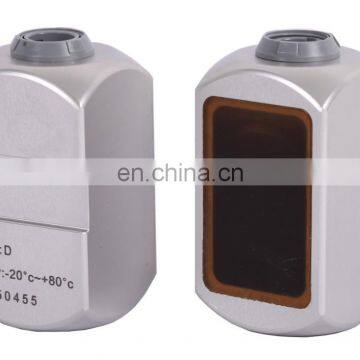

 High-temperature transducer is suitable to liquids of -35℃ ~ 200℃

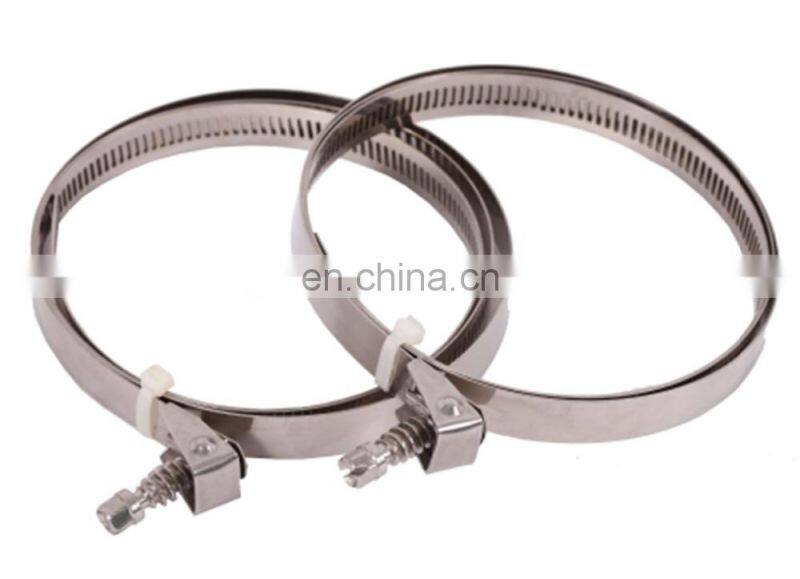

 Do not need to shut down the pipe flow when installing the transducers
 User-friendly configuration

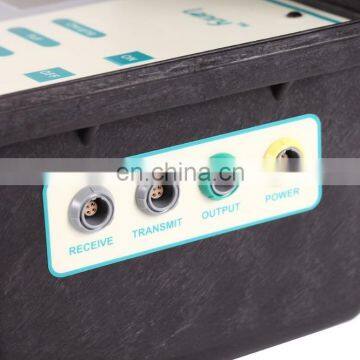

 4-20mA, OCT outputs
 Accuracy: 2.0% Calibrated span
 Rechargeable battery can work up to 50 hours

Applications:

 Raw sewage
 Activated sludge
 Ground water
 Pulp and paper slurries
 Chemical slurries
 Drainage
 Mining recirculation

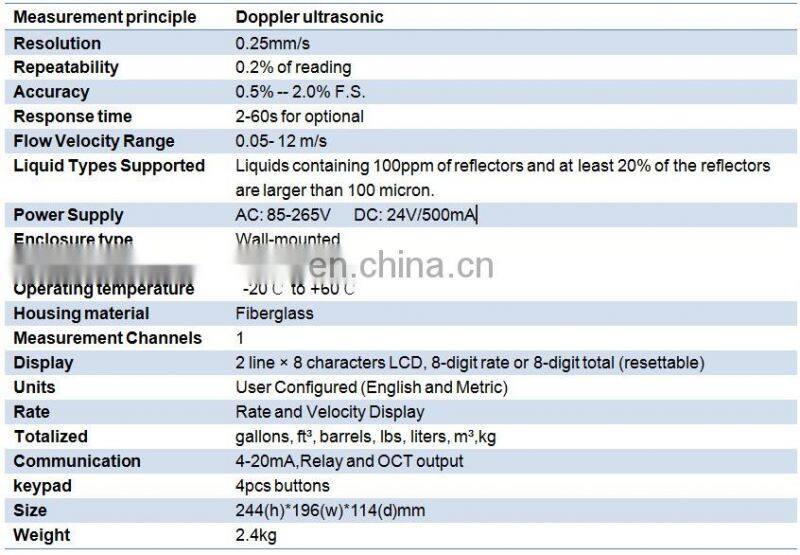

Technical Parameters:

Specifications: Transmitter

Transmitter
