Water Spray/leak Irrigagtion Controller

Name: Water Spray/leak Irrigagtion Controller
Brand: Mingrui
SKU: 139056455
Availability: InStock

US$ 5 - 5 MOQ: 50 Units

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

Mingrui

Model Number:

custom

Ningbo Mingrui Sensors Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name Mingrui

Model Number custom

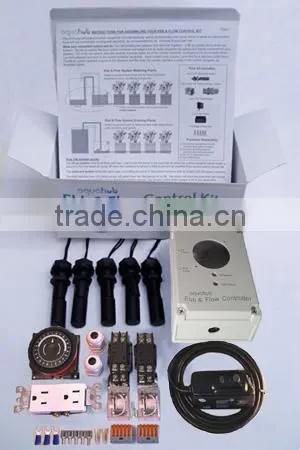

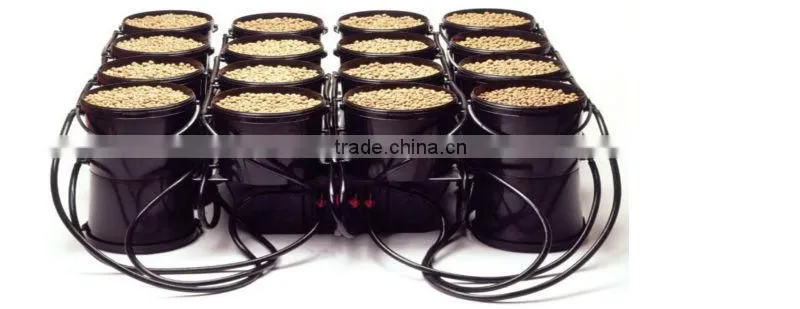

Tidal irrigation controller

is specially designed for small and mediumsized area irrigation system of resisdential districts, parks,

modern farm and so on. This system is able to achieve irrigation in cycles and automatical control function;

Tidal irrigation controller is consist of timer, control cabinet and level switch which can control water level

automatically. Timing unit of timer is every small space 15 minutes and it can set multipleunit of time to

control irrigation cycle effectively; control cabinet is consist of cabient, voltage output socket and control circuit.

Reasonable circuit layout and superior quality electron component with level switch ensure reliable operation

of whole control system effeciently.

Graphic illustration

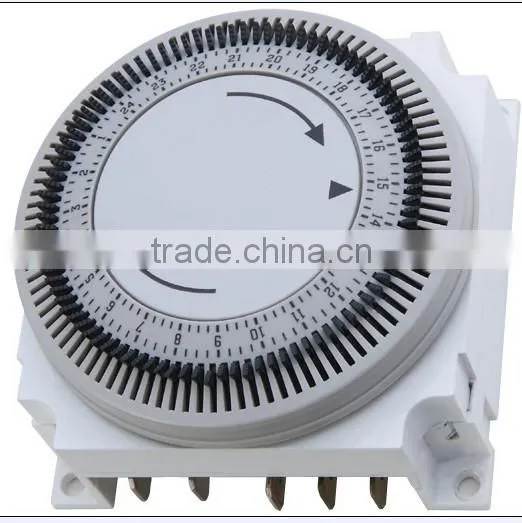

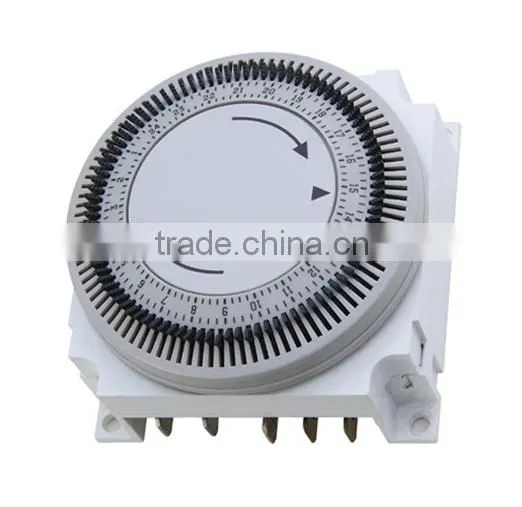

Timer settings

1.Check current moment:rotate the dial clockwise, pointer point to current time.

2.Toggle dial numbers to set time:Timing unit of timer is every small space 15 minutes and it can set multiple-unit

of time(totally 96 dial numbers, it can be set max. 48 units)

3.it starts working just by turning on power supply.

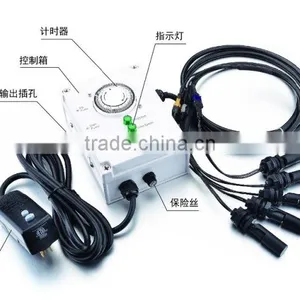

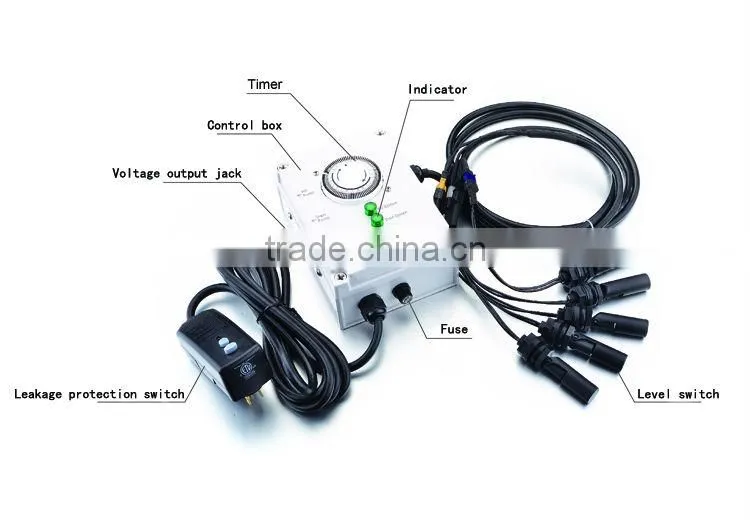

Function of control cabinet specify

Name	Function specify
Timer	Allowed to set irrigation time freely for user.
Indicator light	Indicates current status, when floats straight out, FillSystem lights, when floats hanging down, Drain System lights.
Leakage protection switch	When machine is leakage over set value , it will cut off power supply automatically to protect users’and property safety. But all switches must be tested before using to ensure if they can be operated smoothly. First test switch socket, plug pin of lamp. It will light, then press “TEST” button. At this time, “RESET” button will popup and light goes out. If “RESET” button doesn’t popup, there are some problems with the switch, it should be changed. If the switch is ok, after light goes out, press “RESET” button, it can restor power supply..
Voltage output socket	Conventional output: 110V, 220V, also can be customized according to actual requirements.
Control cabinet	An intellegent processor with protective circuit, fuse, level switch signal processing

Level switch	Functional status	Terminal color	Level switch functional specify	Remarks
	Floats straight out	Red terminals	Backup Fill Shutoff Switch	Closed when no water
		Black terminals	Fill Shutoff Switch	Closed when no water
		Blue terminal	Fill Turn-On Switch	Closed when no water
	Floats hanging down	Yellow terminal	Drain Turn-On Switch	Closed when there is water
		White terminal	Drain Turn-Off Switch	Closed when there is water
Remark:Input voltage: 110VAC, Output voltage: 110VAC, Current less than 10AMPs; Don’t connect rod when charged.
