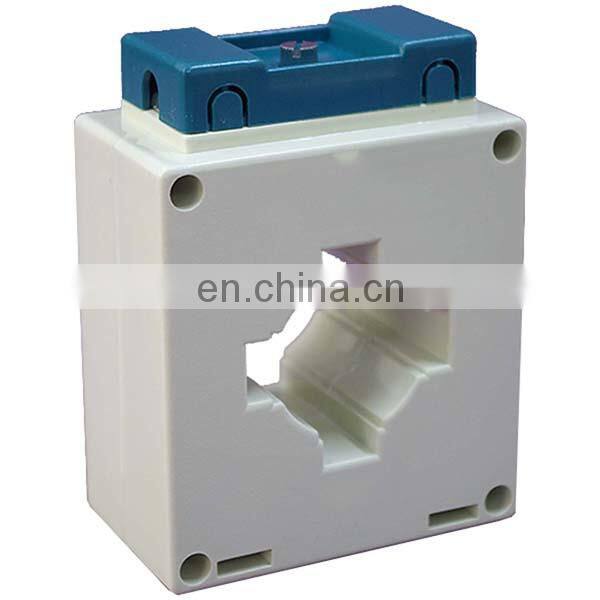

AKH-0.66 Current Transformer

AKH-0.66 Current Transformer

Product description:

AKH-0.66 series current transformer, the outer shell adopt polycarbonate material injection forming  with flame retardant, 140 °C heat resistance ability.

The iron core adopt cold rolling silicon steel belt coiling manufactured.

The secondary wiring apply high strength electromagnetism enamelled wire.

Fit for standard GB1208-2006, which is same as IEC60044-1:2003.

Technical parameters:

1. Measuring CT primary current 5-6300A,  secondary current 5A,1A,0.1A,0.05A;

2. Protection CT primary current 5-6300A,secondary current 5A,1A,0.1A,0.05A;

3. Duplex winding CT primary current 5-6300A,  secondary current  5A,20mA,1A,20mA;

4. Duplex winding sensor primary current 5-6300A, secondary current AC5A, DC4-20mA,AC1A,DC4-20mA;

5. After current CT primary current 0-5a, secondary output current 5mA,2mA or voltage 1V;

6. Three-phase current transformer primary current 5-200A,secondary current 5A,1A,50mA,20mA;

7. Micro current transformer primary current 5-100A,secondary current 5A,1A,50mA,20mA;

8. Metering CT primary current 5-2000A, secondary current 5A,1A;

9. Open type CT primary current 20-6300A,secondary current  5A,1A;

10. Rated working voltage AC 0.66kV (equivalent AC0.69kV,GB156-2003)

11. Rated frequency: 50~60Hz

12. Environment temperature: -30°C~70°C, high temperature resistance 120°C

13. Altitude ≤3000m

14. Power frequency withstand voltage

15. 3000V/1min 50Hz

16. Applied in no rain, thunder direct strick, and no serious pollution and violent vibration site.

Model Selection
