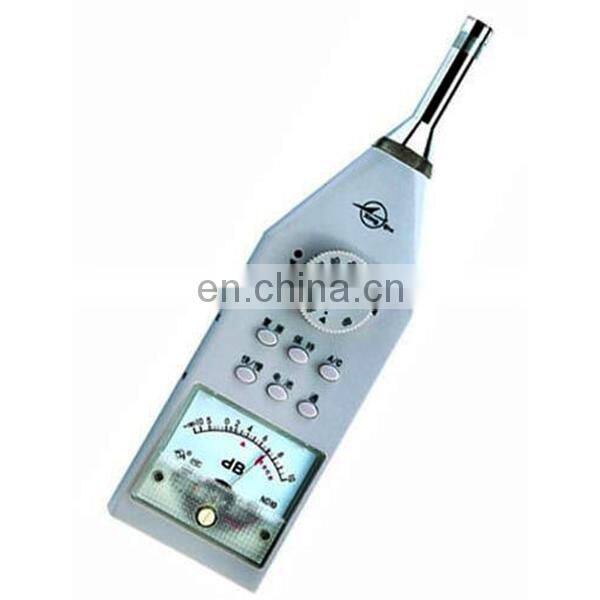

ND10 -type Sound Level Tester Noise Meter

Brief introduction

ND10 -type sound level tester is a pocket for acoustic measurement instruments for environmental noise , machine noise , vehicle noise , electrical noise, measurements can also be used for architectural acoustics , electro-acoustic and other measurements. Instrument performance is stable , easy to use , inexpensive, and easy to carry .

Technical parameters

1.Measuring range: ( in 2 × 10-5Pa as reference)
    1) A sound level : 40dB ~ 130dB;
     2) C Sound level : 55dB ~ 130dB.
2.Frequency range : 31.5Hz ~ 8kHz;
3 . Frequency weighting : A, C frequency weighting network ;
4 . Range attenuator sub-file error : ≤ 0.5dB;
5 . Meter scale : 0dB +10 dB: error ≤ 0.5dB-5dB ~ 0dB, error ≤ 1dB;
6 . Amplifier Output : Output voltage ( meter full the degrees ) 2V rms ;
7 . Output impedance: approximately 600Ω;
8 . Minimum load impedance : 10kΩ;
9 . Detector Features: Approximate RMS ;
10 . Time weighting : "F fast" and "S slow" ;

11 . Retention characteristics : attenuation per minute less than 2dB;
12 . Polarization voltage : 28V;
13 . Correction: sound level correction ; electrical calibration ;
14 . Conditions of Use: Operating temperature : -10 °C ~ +50 °C;
15 . Relative humidity : not more than 80% (+40 °C when ) ;
16 . Power supply : 9V battery 1 .
