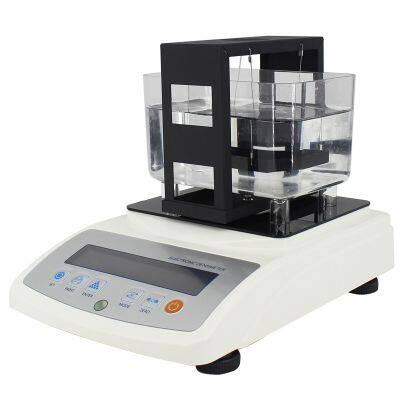

XF-120S High-precision Electronic Solid Density Meter

The high-precision electronic solid density meter XF-120S is suitable for measuring the density of all solid materials, and has the characteristics of multifunctionality, high accuracy, easy operation, and excellent performance. The solid density meter adopts the German HBM high-precision weighing sensor, which does not require bundling with the product's water measurement device; It can instantly measure density values and has various measurement methods such as saturation measurement, surface coverage waterproofing treatment, and high viscosity medium liquid method; Our density meter has high measurement accuracy and reliable data. We have simplified the operation steps and methods, upgraded the software application functions, and have unparalleled reliability compared to similar products, making the application customer base more extensive.

Suitable for: rubber, plastic, powder metallurgy, wire and cable PVC、 Hard alloy, knife grinding products, manufacturing, automotive parts, tungsten alloy parts, diamond, new material research laboratory. Suitable for applications in areas such as basic material density research, high-density product density testing, micro product density testing, quality and cost management control, new material formula research and development, etc. Covering all solid material fields including water absorption and non water absorption.

The XF-120S has a density accuracy of one ten thousandth, equipped with a Free Flip cover integrated aluminum alloy measuring table and a transparent water tank, providing higher accuracy, easier operation, faster speed, and more user-friendly features. basis: ASTM D792、 ASTM D297、 GB/T1033、GB/T2951、 GB/T3850、 GB/T533、 HG4-1468、 JIS K6268、 ISO 2781、ISO 1183、GB/T208、GB/T5163、GB/T 1933、GB/T4196、GB/T4123、GB/T5586、JB/T7780… Only two steps are needed to display density values based on standard specifications

Technical parameters:

1. Model: XF-120S

2. Maximum weight: 120g

3. Density analysis: 0.0001 g/cm3

4. Minimum weight: 0.001g

5. Measurement range: 0.0001-99.9999g/cm3

6. Measurement type: Any solid block, particle, or float with a density greater than 1 or less than 1

8. Test time: 6 seconds

Product features:

O No lifting cover operation method, easier and faster operation, more in line with the operating standards of the new materials laboratory

German sensor measurement * *, efficient and stable

Suitable for density testing of small and high-density products

O It has actual water temperature setting, measurement medium density setting, and waterproof treatment medium density setting

O Has density upper and lower limit setting function

O Can automatically determine whether the sample is qualified or not, and provide alarm prompts

Fully automatic zero point tracking, buzzer alarm, overload alarm function

O Equipped with a dedicated windproof and dustproof cover, easy to combine and sturdy

Equipped with RS-232C communication interface, it is convenient to connect PC and printer, and XF-68 printer can be selected to print measurement data

Adopting an integrated large capacity water tank that is corrosion-resistant, drop resistant, and burst resistant, with dimensions of 15.3 cm in length, 10.7 cm in width, and 8.0cm in height

Built in battery, equipped with windproof cover, more suitable for on-site testing

Measurement steps:

① Place the product on the measuring table, measure the weight in the air, and press the ENTER key to memorize.

② Place the product in water to measure its weight, press the ENTER key to memorize, and display the density value.
