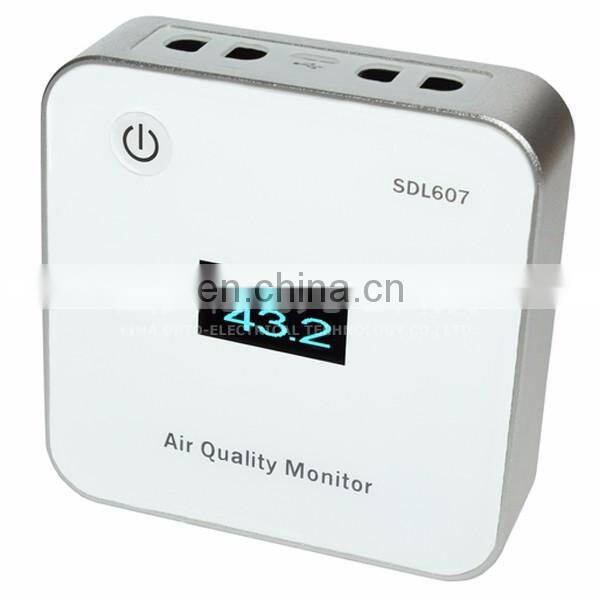

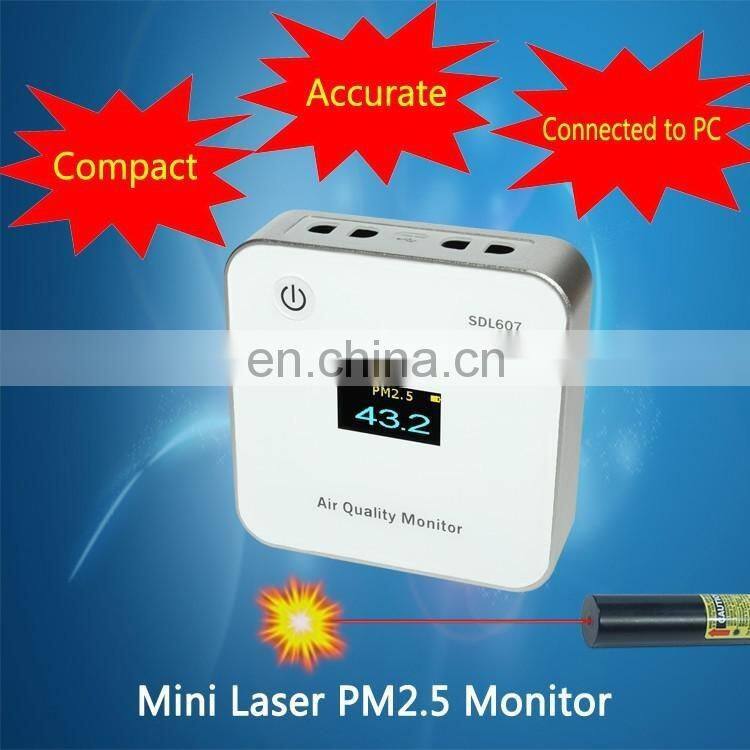

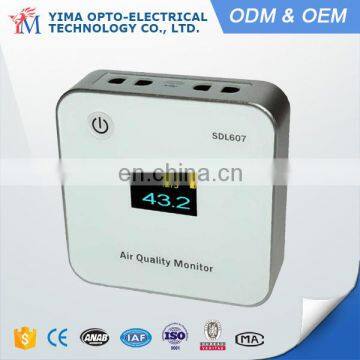

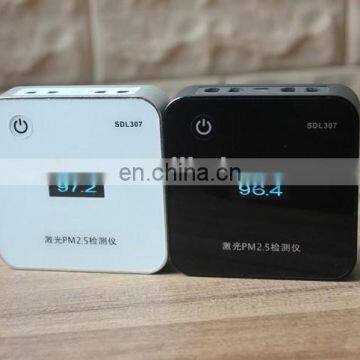

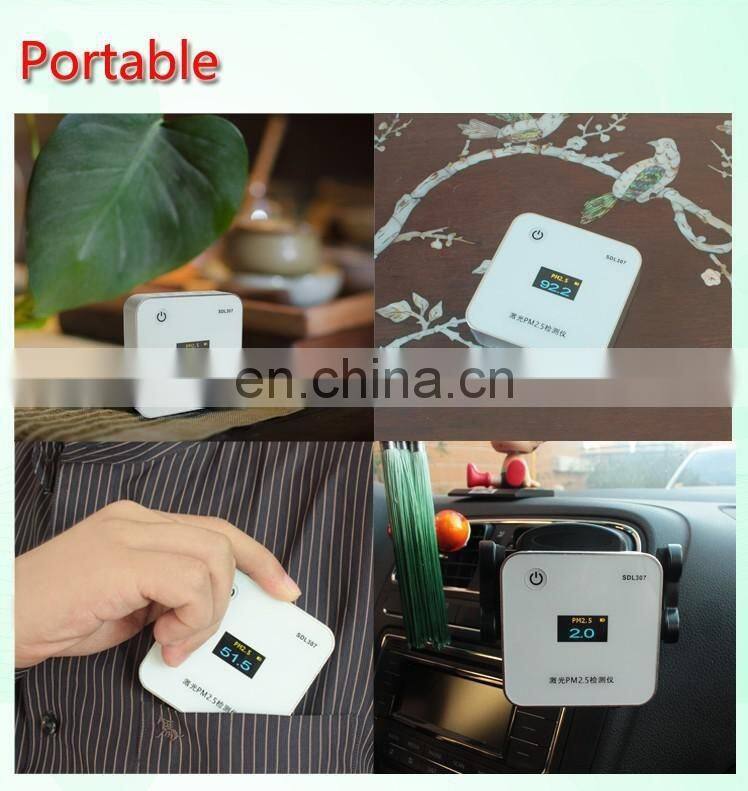

SDL607 Mini Laser Scattering High Precision PM2.5 PM10 Monitor

SDL607  Mini Laser PM2.5 monitors

Product size

Machine size:73*20*73 mm

Package size:200*150*60mm

weight

machine weight: 0.12 kg

total weight:   0.42 kg

power supply

input voltage:  5V

battery capacity:  1500mAh

power:      0.5W

charging current:  0.5A

charging time:  2.5 hours

battery working time:30 hours

measurement parameter

Measurement principle: laser measurement

PM2.5 detect range:0-999.9 μg/m³

PM2.5 resolution: 0.1  μg/m³

PM10 detect range:0-999.9  μg/m³

PM10 resolution: 0.1  μg/m³

Detect particle mimimum diameter:0.3 μm

environment

working environment:5—45^oC

store environment:-20—70^oC

Product working principle

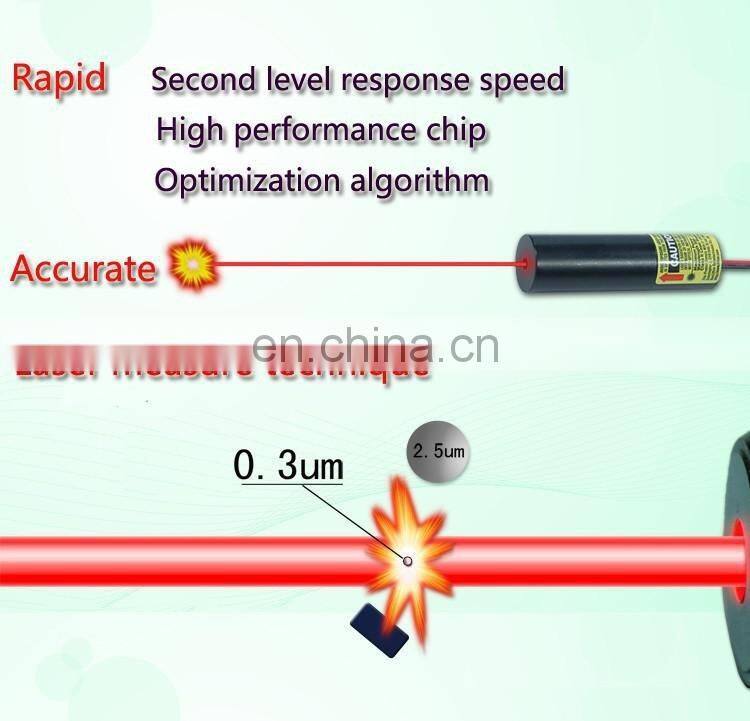

SDL307 laser PM2.5 detector using laser detection principle to work: produced a dedicated bunch specific laser through module laser, when particles pass, the signal will be super sensitive digital circuit module detected signal data through intelligent recognition analysis to obtain particle counting and particle size, according to professional calibration technology is the particle size distribution and mass concentration conversion formula, and ultimately get the official unit with uniform concentration;

SDL307 laser PM2.5 detector using independent laser sensor,built-in fan, high sensitivity, fast response, stable performance, long life, can be used continuously.

Product performance

Dear customer,

We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .

Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.

Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.

If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba

We firmly believe that science and technology is no boundaries

Our mission is to make every effort to contribute to all humanity.
