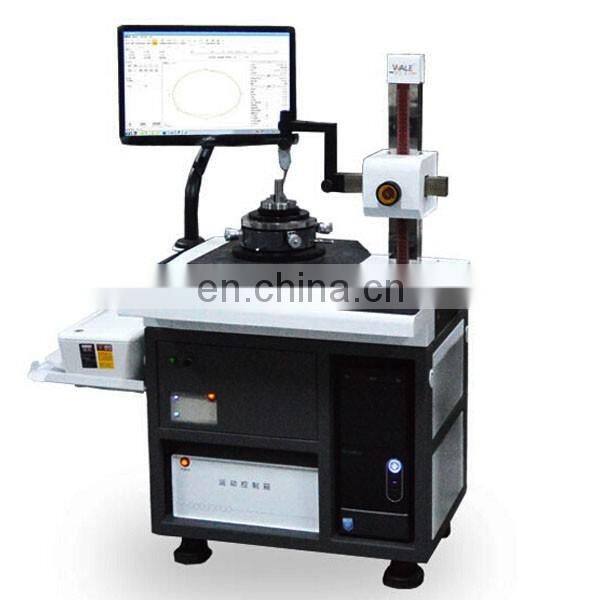

RA16 roundness tester

Introduction:

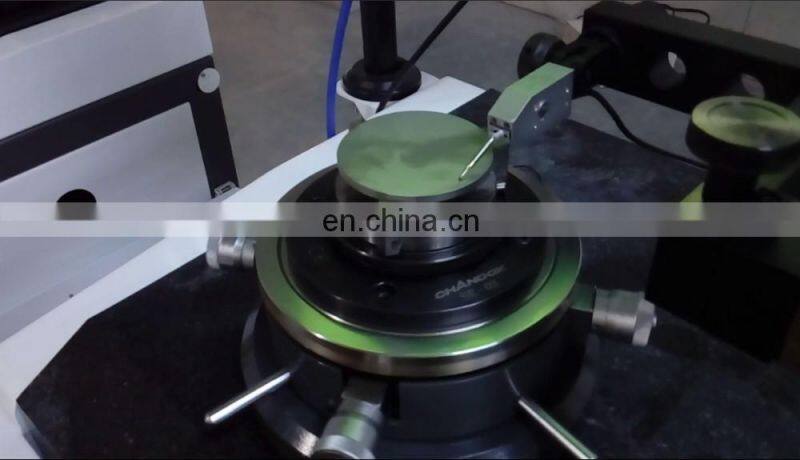

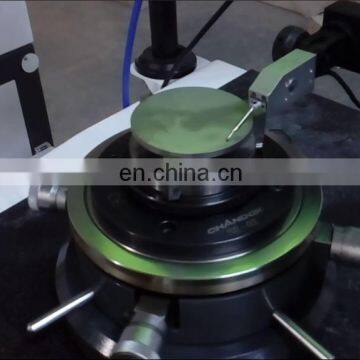

The RA16 roundness measuring instrument adopt high rigidity precision air bearings as measurement datum, which is high precision and long service life. The electrical control system adopt modular, high-precision data acquisition and processing system, high accuracy, low failure rate and easy maintenance.

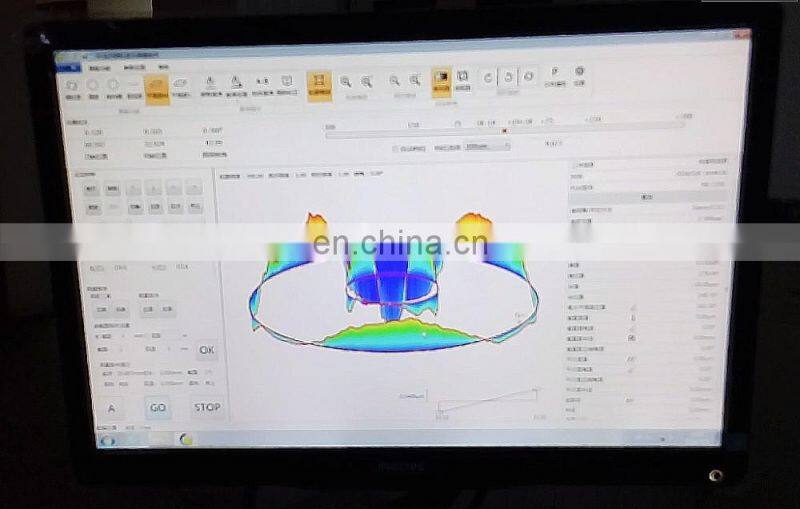

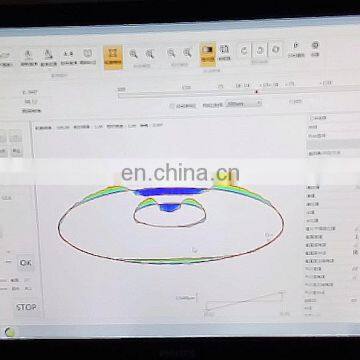

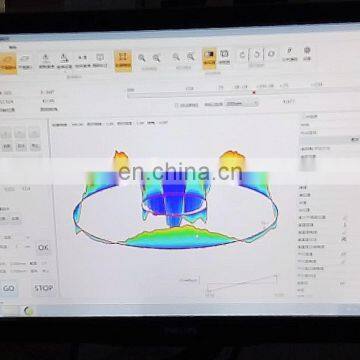

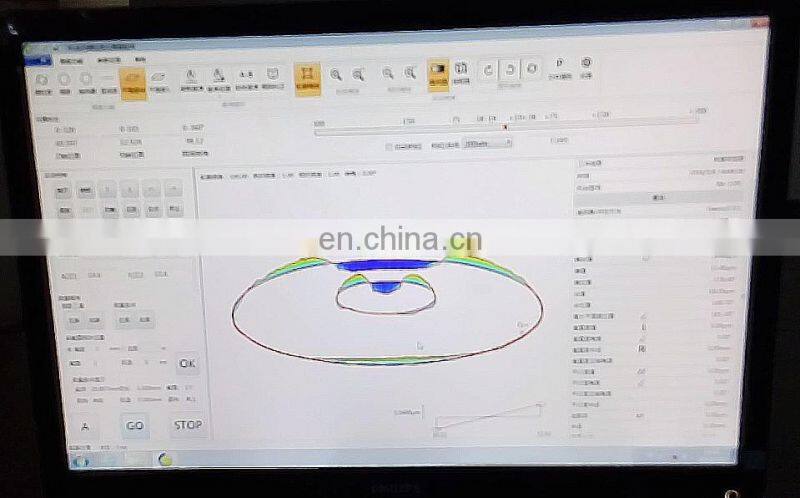

Analytical ability:

Spectrum analysis, gap/burr automatically removed, waveform analysis
Roundness evaluation (4 methods): Minimum zone method, least square, minimum circum circle and maximum inscribed circle
Roundness filtering gear: 1-15upr,1-50upr,1-150upr,1-250upr,1-500upr,15-100upr,15-500upr,2-15upr
Filtering expression: Gaussian (ISO standard)

Technical feature:

*High precision desktop roundness, integrated design, saves space;
*Adopt gas spindle: Maintain long-term accuracy, good stability;
*Self-developed software, module design decrease which decrease the users maintenance cost;
* PC configuration is flexible, it can be configured according to user requirements;
* Software aided self-aligning leveling, improve efficiency and save time.
* Standard report is equipped with a variety of evaluation method, the parameters in column test report can be add or delete according to the users requirement;
* Measurement results can choose ISO statistics or ISO standard reports;
* Commutator module for optional;
* Software support XP、win7、win8 system, Chinese and English language.

Product Introduction:

Our precision measurements widely used in machinery industry, automobile industry, bearing industry, electrical industry, colleges and universities. The consultant team was composed technical elite in application of industry.can customized non-standard measurement equipment according to customer's specific needs. To provide the most professional, personalized, optimal ratio performance measurement scheme.

Operational environment:

Vibration source：Without vibration source
Power：AC 220V±10% 50Hz Separate ground
Temperature：in site temperature：12℃—26℃ ideal temperature 20±2℃
Relate humidity：＜85%
Air supply：Air compressor air pressure：0.5-0.8Mpa
Air compressor air flow：≧0.2m³/min
Air pressure dew point at instrument inlet ≤10℃
Oil mist detector ≤0.5mg/m³,SOLID ≤3um
Content of solid particles ≤5mg/m³
