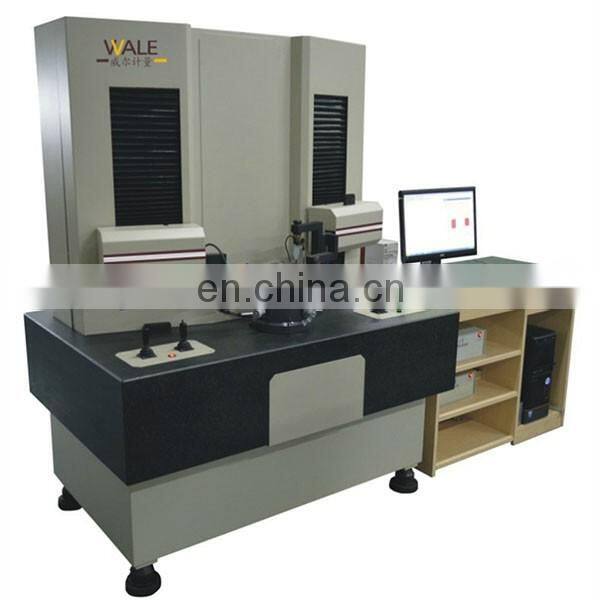

RP-300A Piston Comprehensive Measuring Instrument

Measurement functions

The great circle: cross section lines, longitudinal section lines, coaxial degree

Pin hole of piston pin hole diameter, unilateralism roundness, cylindricity, and eccentricity

Measure the ring grooves, the Angle of the ring groove, the bottom diameter, ring groove bottom of transition fillet radius

The piston compression height

Measurements from the valve hole and pin hole center distance

Configure line of piston type and elliptical cross-section measurement special measurement software packages, measure the piston section lift curve and ovality, contour line

For waviness profile analysis, gap analysis, spectrum analysis, /, waveform analysis, harmonic analysis of eliminating burr at the same time

Measurement of workpiece roundness and cylindricity, alignment, concentricity, beating, parallelism, flatness, perpendicularity

Technical parameters

Spindle precision: plus or minus 0.025 microns or less

System error: 0.05 microns or less

The sensor resolution: 0.01 microns or less

Radius range: 500 microns or less

Measure the piston diameter: 150 mm

Measure the piston height: 200 mm

The minimum inner diameter:  1 mm

43 kg load:
