MAG20 Portable Thermal Imager
- 50 Unit / Units per Month
- shenzhen
- T/T Credit Card
Product Details
Brand Name: | shanghaijuge-S | Place of Origin: | Shaanxi, China | Model Number: | MAG20 |
Product Description

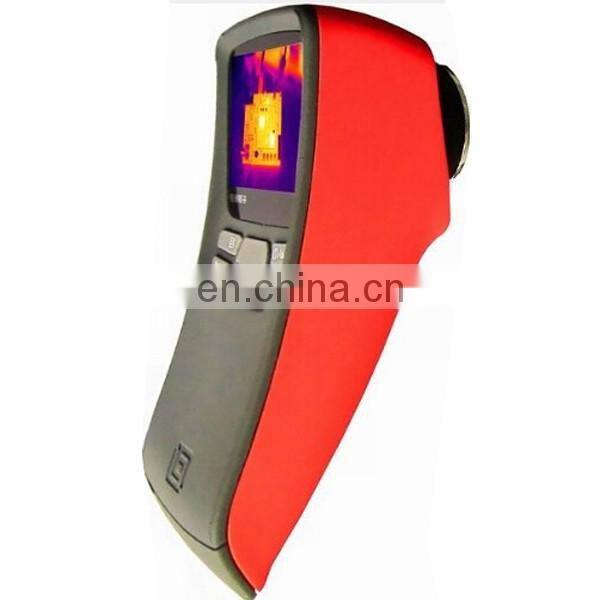

MAG20 Portable Thermal Imager
Introduction
MAG20 is a low cost handheld thermal imager using our proprietary micobolomter technology.
Traditional microbolometer, the key component in thermal imagers, is very expensive due to the
high fabrication cost of ROIC, MEMS and vacuum packaging. Magnity's patented opical readout
technology uses off-the-shelf CMOS as the signal readout device, thus eliminating ROIC and
greatly simplifies the fabrication of MEMS and vacuum package. MAG20 features 80x60 pixel
resolution, a 300K pixel visible camera, and 1W LED illumination. It comes with the full features
of image processing software that is used in our high end products. Its pocket size and ergonomic
design enables easy single hand operation. MAG20 is an ideal tool that offers thermography
functions at a price that was unseen in traditional thermal imagers.
Features:
Thermal image quality: 80*60, using our proprietary micobolomter technology
Radiance, and background temperature correction, ensuring the accuracy of temperature measurement
Built-in visible light camera, multiple display mode: infrared/visible/pic-in-pic/thermal fusion
Technical parameters :
Detector | |
Detector type | Focal plane array, uncooled microbolometer using optical readout technology |
Resolution | 80×60 |
Spectral band | 8~14μm |
Imaging Performance | |
Field of view | 24°×18°(f=15mm) |
Spatial resolution | 5mrad |
Thermal sensitivity(NETD) | <200mK@30℃ |
Focus | Manual(Mininum focus distance: 0.3m) |
Max frame rate | 15Hz |
Imaging Display | |
LCD | 2.4 inch LCD |
Measurement | |
Temperature measurement range | -20℃~+150℃ |
Accuracy | ±3℃or ±3% |
Temperature Measurement Mode | Max temperature point tracking, center point temperature measurement |
Radiance correction | 0.1-1.0 |
Background temperature correction | Auto correction by user background temperature input |
Automatic alarming | User defined alarming threshold |
Palette | 10 Palettes: including grayscale, grayscale inverted, ironbow, hot metal, etc. |
Display enhancement | Automatic/manually image stretching, contrast adjustment |
Visual camera | 300k pixels |
Image and data storage | |
Storage medium | Micro SD Memory Card |
File format | Temperature data: self defined .mgt format. Video: 264 format |
Environmental | |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -20℃~+60℃ |
Humidity | <85%(Un-condensing) |
Enclosure rating | IP54 |
Physical characteristics | |
Power supply | Ion rechargeable battery, 7+ hours continuous use |
Auxiliary illumination | 1w LED illumination |
Dimension | 160mm×66mm×78mm (infrared lens included) |
Weight | 0.32kg (infrared lens included) |
Signal interface | USB2.0 |
Accessory | Infrared lens, AC adapter, Software disk, User manual |
Dear customer,
We ,Xi’an Yima Opto-electrical Technology Com.,Ltd. is an integrated economic entity of R&D,manufacturing and trading with over 20 years of history .
Our business scope covers various fields such as biochemical analysis,environmental protection,industrial testing, bioscience,medical apparatus and instruments,internet technology and some frontier science.
Through a long-time development,we own a national resources system of various professional talents , abundant supply for various components &parts and special materials, full producing &processing equipments , strong Technological standardization and a complete quality assurance system.
If you need OEM or ODM in manufacturing ,scientific research , market development and or you want to build your own brand in your country, it’s our honor to cooperate with you.In this way ,we have developed many products for our customers from the USA, Europe and South Africa and got good feedback on Alibaba
We firmly believe that science and technology is no boundaries
Our mission is to make every effort to contribute to all humanity.
