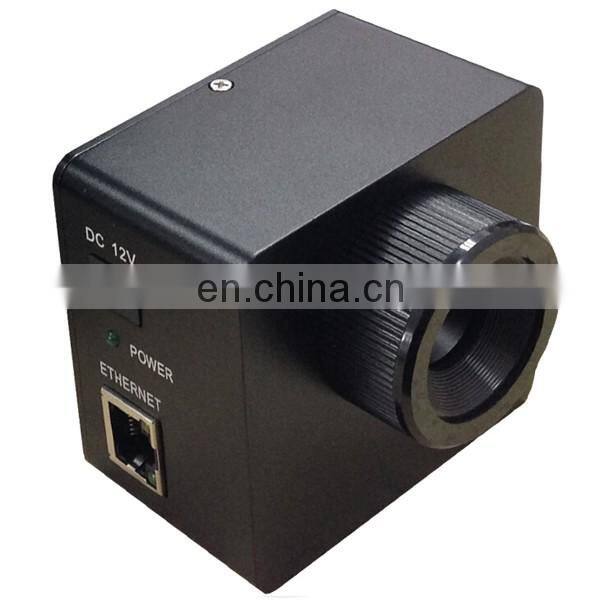

MAG11 On-line Thermal Imager
- 300 Unit / Units per Month
- shenzhen
- T/T Credit Card
Product Details
Brand Name: | shanghaijuge-S | Place of Origin: | Shaanxi, China | Model Number: | MAG11 |
Product Description
MAG11 On-line Thermal Imager
Features:
Uncooled 80*60 microbolometer using patented optical readout technology
Real-time temperature data acquisition
Automatically find the hottest point in the image and alarming
Data transmission and control through Ethernet
SDK provided for customized development
Technical parameters
MAG11 | |
Detector | |
Detector type | Focal Plane Array, Uncooled Microbolometer |
Resolution | 80×60 |
Spectral Band | 8~14μm |
Imaging Performance | |
Field of View | 24°×18° |
Spatial Resolution | 5mrad |
Thermal Sensitivity | <200mK@30℃ |
Focusing | Manual Focus (0.3m~∞) |
Maximum Frame Rate | 15Hz |
Measurment | |
Temperature Ranges | -20℃~+150℃ |
Accuracy | ±3℃ or ±3% |
Radiance Correction | 0.01-1.0 |
Background Temperature | User Input Enviromental Temperature Correction |
Atmosphere | User Input Distance and Humidity Correction |
Temperature | Real Time Temperature Display,User Defined Points of Interest |
Automatic Alarming | User Defined Alarming Threshold,User Defined Points of Interest |
Imaging Processing | |
Palettes | 10 Palettes:including Grayscale,Grayscale inverted,Ironbow,Hot metal,etc. |
Image Enhancement | Manual/Automatic Histogram Balancing |
Data Storage | Image, Video, Temperature Data |
Environmental | |
Operating Temperature | -10℃~+50℃ |
Storage Temperature | -20℃~+50℃ |
Humidity | <85%(Non-Condensing) |
Enclosure rating | IP54 |
Physical Characteristics | |
Power Supply | 12V DC |
Size | 64mm×64mm×66mm ( Infrared Lens Excluded ) |
Weight | 0.3kg ( Infrared Lens Excluded ) |
Signal Interface | 100M Ethernet |
Video Output | PAL/NTSC |
I/O Interface | 1 Input, 1 Output |
Software | Included |
Accessories | Infrared Lens,Power Supply,Installation CD,User Manual |
