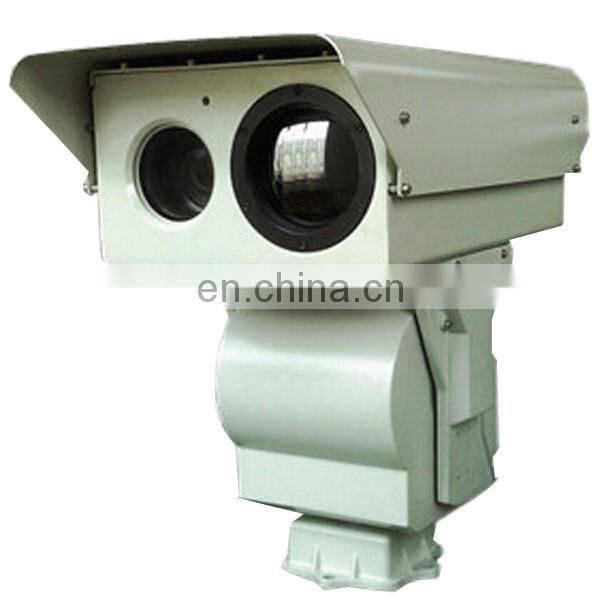

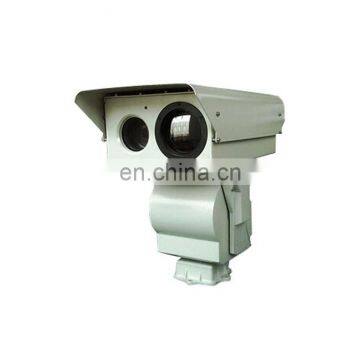

TVC4515 Professional Dual Channel Thermal Camera Imager

Model

TVC4307-1930-IP-S

TVC4510-2132-IP-S

TVC4510-2030-IP-S

TVC4515-2055-IP-S

Detection

Vehicle: 6500m

Vehicle: 8600m

Vehicle: 8600m

Vehicle: 13000m

Human: 2500m

Human: 3400m

Human: 3400m

Human:4800m

Identification

Vehicle: 1800m

Vehicle: 2400m

Vehicle: 2400m

Vehicle: 3400m

Human: 700m

Human: 900m

Human: 900m

Human: 1300m

Thermal sensor

VOx uncooled detector, 324*256(640*512 optional) / 7.5um-14um spectral response, 50mk NETD

Thermal lens

25mm~75mm

21mm~105mm

21mm~105mm

31mm~155mm

1. Electric zoom and focus (option auto focus)

2. AS+DOE Advanced optical design,High infrared transmittance

3. Using 3CAM High Precision design and process technology. Zoom without virtual focus

Fov(H)

13°~4.3°

18°~3.4°

18°~3.4°

11.2°~2.2°

Image process

2X digital zoom; Image processing; AGC; 10 pseudo color; SDE image enhancement;

Visible sensor

1/2.8'' CMOS

1/1.8'' CMOS

0.01lux color to B/W CCD

0.0002lux super high sensitive color to B/W CCD

2.1MP ,1920X1080

2 megapixels,1920X1080

Automatic ICR switch

Automatic ICR switch

H.264/MPEG4/MIPEG

H.264/MPEG4/MIPEG

32Kbps~16Mbps,
60Hz30 FPS

32Kbps~16Mbps,60Hz30 FPS

Support SD card storage, region invasion, alarm
ABF auto adjust BFD function

Visible lens

4.3mm~129mm

8~320mm

12~320mm

18~550mm

F1.6~F5.0

infrared correction

105mm super aperture

Fov(H)65°~2.3°

motorized zoom

motorized zoom

2MP HD

DC8-12V

DC8-12V

Electric zoom and focus

auto aperture

auto aperture

1s fast autofocus

zoom data feedback

zoom data feedback

Fog filter

No

AFR color fog fliter technology

Housing

1.       Material:High strength aluminum alloy shell,waterproof seal,To avoid the growth of mold and moisture generated

2.  Structure:Integrated single-window design

3.  Surface coating:PTA three-resistance coating, Seawater corrosion resistance(Optional: Stainless steel housing)

4.  Built-in thermostat, design of thermal equilibrium

5.  Interface:Aviation waterproof plug

PTZ

Load:30kg

Load:50kg

Range:Pan: 0~360°, Tilt: +40°~-45°

Range:Pan: 0~360°
Tilt: +40°~-45°

Speed:Pan: 0.01~30°/S, Tilt: 0.01~15°/S

Pan: 0.01~30°/S
Tilt: 0.01~15°/S

Preset: 80, with Petrol/scan function
Azimuth real-time display, Zero correction function

Interface

Intelligent IP box,one 110M/100M adaptive Ethernet port (include thermal+HD visible+RS485),1* AC24V/DC24V adapter

Video format

H.264, Dual video output

Protocol

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP ect. Other protocol

Support ONVIF2.0

Pelco-P,Pelco-D,Baudrate 2400,4800,9600,19200 optional

Power supply

AC24V/DC24V±10%,50Hz,150W,Standard AC220V->AC24V power supply (Optional DC12V)

Environment

1.       Operating temperature:-25℃~+55℃(-40℃ optional)

2.       Storage temperature:-35℃~+75℃

3.       Humidity:<90%

4.       Anti-lighting:built-in auto Fuse-protected device, Power 4000V,Signal 2000V

5.       Ingress protection:IP66

Weight

≤25kg

≤30kg

≤30kg

≤50kg
