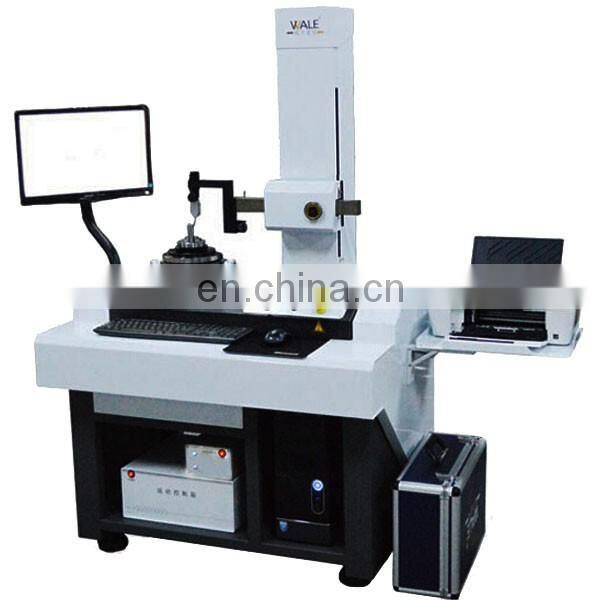

RA160 Roundness Tester Roundness Measuring Machine

RA160 roundness tester

Introduction:

RA series roundness instrument using the polar coordinate measuring method, the workpiece rotary, with round rotation measurement datum of precision shafting, circumferential direction with precision open aureole shan count, radius direction using inductance sensor measuring the radial variation. After the acquisition, control system transformation movement by PC control, data acquisition, data analysis, graphics, tables, display measurement result.

Features:

1. High precision roundness measuring instrument, unibody design, save a space, more beautiful.
2. Gas floating shaft movement.
3. Key-module the use of special alloy material to stress and special to deal with the stress process, precision to keep for a long time.
4. No special requirements on the environment to use, can be used in the workshop environment.
5. Powerful eccentric elimination, convenient user fast measurement, the similar workpiece measurement to do is put is no need for adjustment.
6. The industry's leading high precision acquisition control system, control system all circuit according to the military standard design, production and acceptance.
7. Independent research and development of software, modular design allows the user maintenance costs to a minimum.
8. In view of the motor industry, motor rotor measurement module is developed.

Technical parameters

Rotation accuracy: (0.05 + 6 h / 10000) microns

Rotating speed: 6 RPM

The workbench effective diameter: 180 mm

The largest workpiece diameter: 460 mm

Maximum measuring diameter: 280 mm

Mesa biggest bearing: 15 kg

Vertical movement: 320 mm

Maximum detection height: 320 mm

Maximum detection depth: 100 mm

Pillar scale: no

Level mobile: 165 mm

Outstanding amount: 25 mm

Horizontal move way: manually

Contact: manually

Measuring range: + 300 microns

Load: 70-100 mn

The standard needle: ruby, Φ 2 mm

Measuring direction: to both sides

The needle Angle adjustment: plus or minus 45 °

Acquisition device: circular grating

Circular sampling points: 8192 points
