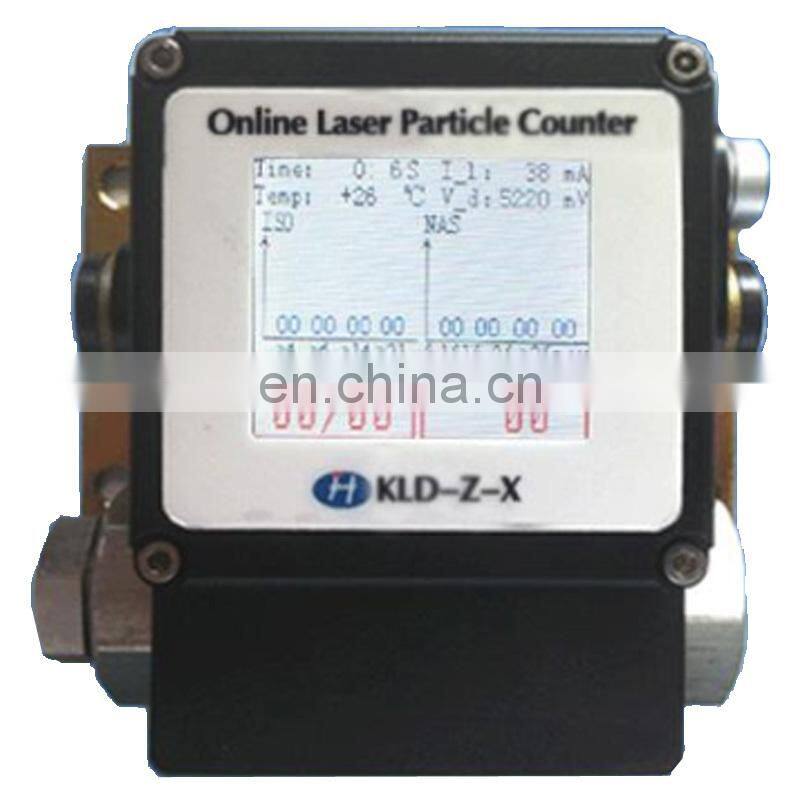

KLD-Z-X Laser On-line Oil Particle Counter

Introduction

KLD-Z-O is an on-line oil particle counter integrated with moisture sensor. it can indicate the oil contamination as well as water content in oil

Feature

KLD-Z Series Laser On-line Oil Particle Counter is a smart, lightweight analysis instrument. It analyzes oil pollution situation by digit and graph format with color LED screen. It reminds people to maintain equipment in early stage, in order to avoid oil system damages caused by pollutants. As a result, it reduces maintenance charge to the lowest, shortens machinery shutdown time, prolongs machinery service life.

Application

KLD-Z Series is used for testing mineral or organic phosphate synthetic oil, such as ydraulic oil, lubricant oil, transformer oil, turbine oil, gear oil, engine oil. It is widely used in fields like aerospace, electric power, petroleum, chemical industry, transportation, ports, metallurgy, machinery, motor manufacture, and so on.

Technical Parameters

Weight: 538 g

Dimension: 63mm×88mm×45 mm

Environment Temperature: -20℃~60℃

Oil Temperature: -20℃~80℃

Storage Temperature: -40℃~85℃

Humidity: 20%~85% for working, 98% for storage, non-condensing

Oil Particle Size: 2µm,5µm,15µm,25 µm

4µm(c),6µm(c),14µm(c),21 µm(c)

Interface Screw Thread Norm: M10×1mm

Test Standard: ISO 4406, NAS 1638

On-line Working Flow Rate:

Automatic Flow Velocity Mode: 50mL/min ~300 ml/min

Fix Flow Velocity Mode (Factory Defaults): 70±10 ml/min Best

Work Power: DC 12V ~ 24V (Power Ripple<30mVp-p)

Repeatability Accuracy: ±0.5 ISO Level

Calibration Period: 1 Year
