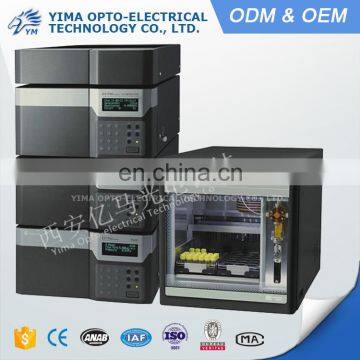

EX1700 Ultra High Performance Liquid Chromatography
- shenzhen
- T/T Credit Card
You May Like
-
EU-2800RS Split Beam UV VIS Spectrophotometer uv Vis Spectrometer
-
EU2600-DT Double Beam UV VIS Spectrophotometer Touch Screen Android System
-
CS350/CS1006 Combination High Voltage Potentiostat//galvanostat /electrochemical Workstation
-
CS310 Electrochemical Workstation Analyzer Potentiostat Battery Impedance Tester
-
CS1120 High-power Potentiostat / Galvanostat Electrochemical Workstation
-
CS350A Potentiostat /Galvanostat /FRA EIS Impedacne for Electrochemical Tests
Product Details
| Brand Name | YIMA | Place of Origin | Shaanxi, China | |
| Model Number | EX1700 |
Product Description
EX1700 Ultra high performance liquid chromatography
Main parameters
EX1700 Transfusion unit
liquid delivery system | Two parallel plunger reciprocating infusion, automatic pulse suppression system |
Flow rate range | 0.001~5.000mL/min |
Max output pressure | 60MPa(0.001~2.5 mL/min) |
flow accuracy | <±1%(0.5~2.5mL/min) |
The velocity precision | RSD<0.07%(1 mL/min) |
Size /weight | 300(w)×450(D)×150(H),about 18kg |
EX1700 gradient system
mixing principle | With different velocity gradient ratio of double pump control |
The number of mobile phase | 2~4(Equipped with solvent switching valve) |
Accuracy of hybrid | +2% |
EX1700 UV-detector
| EX1700UV | EX1700UV-VIS |
optical system
| Double beam system | |
light source
| deuterium lamp
| The deuterium lamp + tungsten lamp |
Wavelength range
| 190~700nm | 190~900nm |
wavelength accuracy | <±1nm | |
spectral bandwidth
| 6nm | |
Noise | 0.6×10-5AU(254nm) | |
drifting | 1×10-4AU(254nm) | |
flow cell | 3.5ul(6mmoptical path) | |
response time | 0.1,0.2,0.5 ,1,2 Five grade adjustable | |
Wavelength time application | Any wavelength changes in time | |
GLP function
| Lamp use time,Deuterium lamp, tungsten lamp energy record | |
Size /weight | 300(w)×450(D)×150(H), about 15kg | |
EX1700 column oven
| EX1700COI | EX1700COⅡ | |
Temperature control principle | Air circulation heating | ||
Set temperature range | 10℃~85℃ | 4℃~85℃ | |
Temp Range | Above room temperature 10℃~85℃ | Below room temperature 10℃~85℃ | |
Precision of temperature control | +0.1℃ | ||
Install the chromatographic column | 2pieces | ||
Size /weight | 300(w)×450(D)×150(H), about 12kg | 140(w)×450(D)×450(H), about 17kg | |
