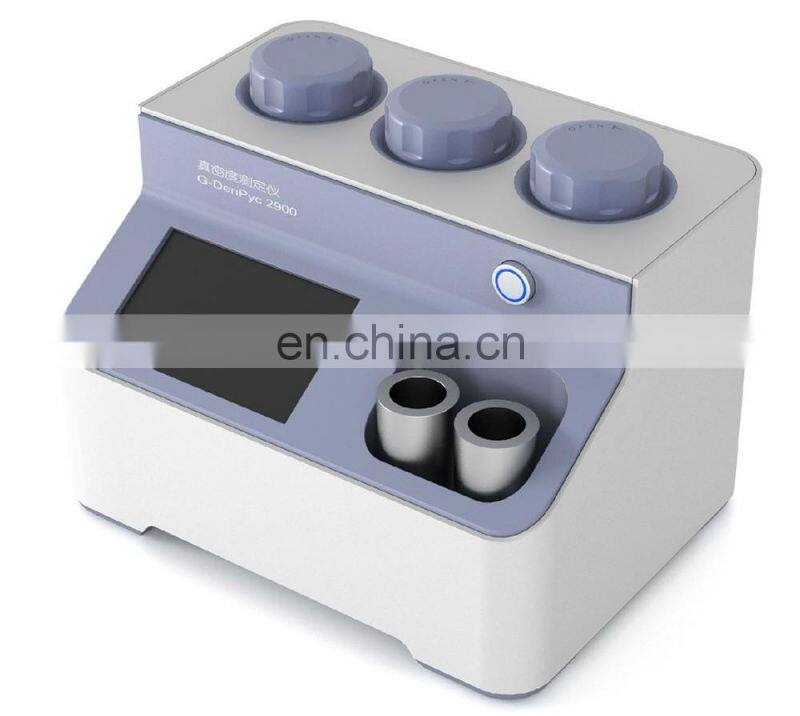

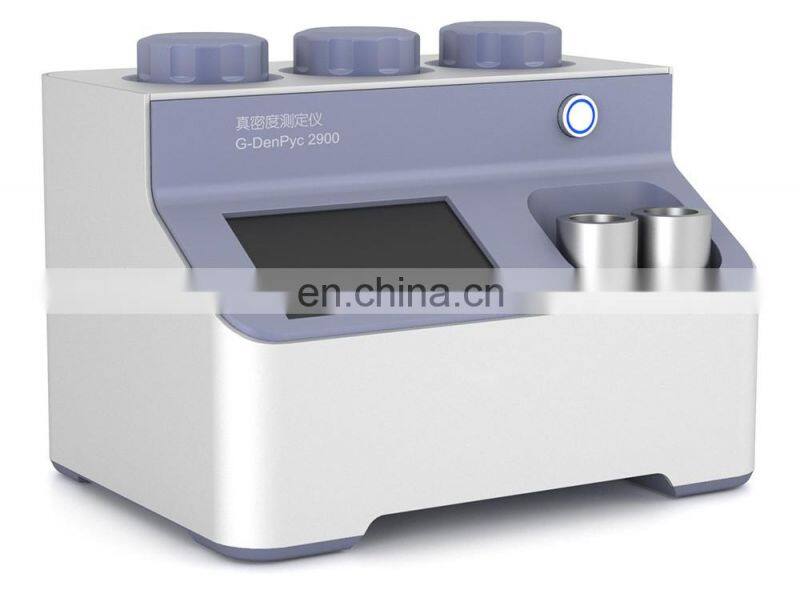

G- 2900B Fully automatic true density analyzer
- 10 Unit / Units per Month
- shenzhen
- T/T Credit Card
- HK - 2000 ICP inductively coupled plasma emission spectrometer
- HK - 8100 ICP inductively coupled plasma emission spectrometer
- QY-2000A integrating sphere fluorescence spectrometer
- CIT-3000X Portable gamma spectrometer
- EU-2600 UV-VIS Spectrophotometer spectrometer prices uv visible spectrophotometer
- PORT-X200 energy dispersive x-ray fluorescent spectrometer
Product Details
Brand Name: | APP | Place of Origin: | Shaanxi, China | Model Number: | G-2900B |
Product Description
Technical parameters
Analysis Method: | Volume displacement method, gas expansion method. |
Versatility: | True density analysis, rigid foam materials’ percentage of open/close area analysis. |
Experimental Pressure: | External vacuum pump is available, can adopt negative pressure (0-1Bar) or positive pressure (1-2Bar) two modes to analysis. |
Accuracy: | Accuracy ±0.02%, repeatability ±0.01%, resolution can reach 0.0001g/cc. |
Sample Ports: | Three samples analysis simultaneously. |
Pressure Accuracy: | Imported high-precision pressure transducer, accuracy can reach 0.04% F.S., stability 0.025% F.S. |
Adsorbate Gas: | High purity He or N2 (99.999%). |
Advantages
Data Reduction: high-precision PρT gas density calculation model eliminates measurement
errors caused by non-ideality gas state, can increase analysis accuracy
Thermostatic System: analysis modules designed with thermostatic system can control
temperature up and down easily, also hold modules stay at the best temperature(25°C) which can restrain transducer reading’s temperature drift and keep system temperature
uniformity; System can maintain temperature at a fixed value for some fixed-temperature-required samples
Control System: programmable logic controller (PLC) system obtains high integration and strong anti-interference, software operated fully automated analysis enables freely choose of multi experiment
modes
Analysis Management: programmable built-in system, touch screen, USB type external keyboard and mouse, operated by connecting to
computer is available
Manifolds System: patented V-Sorb assembling-installed manifolds system can improve sealing performance and reduce dead space largely, enhance
system temperature’s uniformity and anti-interference ability, all lead to a high accuracy and repeatability data
Splash-proof Measures: installed with adetachable filter in sample cell’s bottom, can prevent samples be
suctioned into manifolds; inputting gas from cavity bottom can avoid samples splash and software
controlled H-Sorb two-stage-stepping mode further ends splash happening
Sample Container: 50mm (diameter) and 180ml (500ml is available) big cylinder sample cell is
convenient for samples filling; Exclusive G-DenPyc filling technology supports to choose different volumetric aluminum blocks to fill cell instead
change other sizes cells according to samples’ volume, this innovative method realizes minimal free
space in cells and improve experiment accuracy
Application
Apply to research and quality control for below materials: ceramic, catalysts, filter medium, nuclear fuel,
oil & chemical industry, soil, fertilizer, carbon black, hard coke, fiber, minerals, pharmacy, cosmetics,
cement, powdered foodstuff, desiccant (drying agent), powdered metal, ion exchange resin, silicon gel,
alumina, titanium dioxide, solid foam etc.
