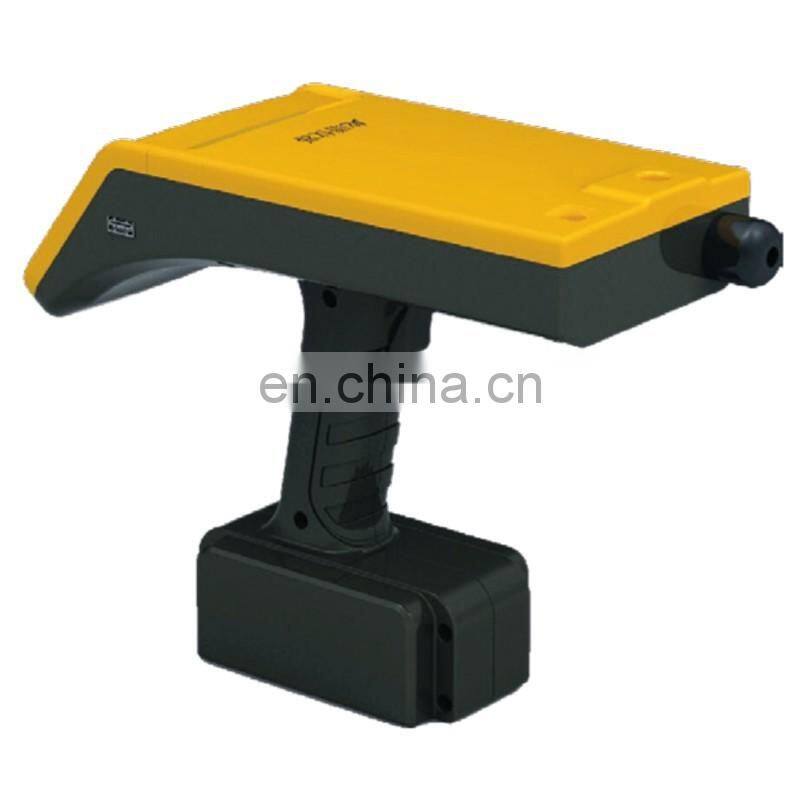

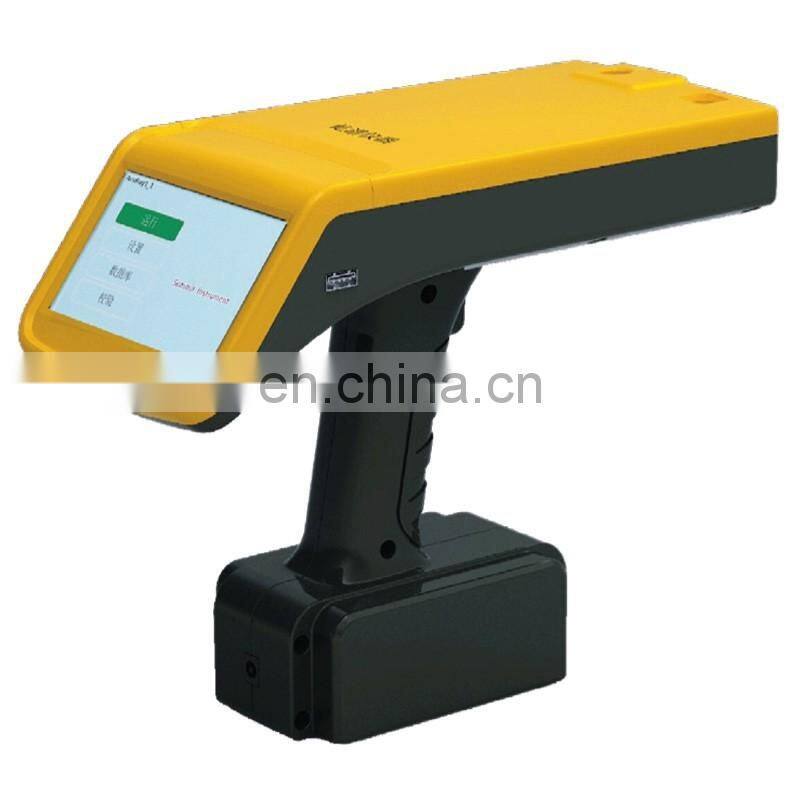

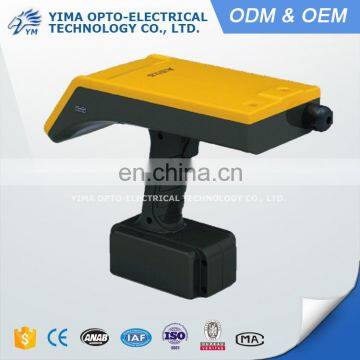

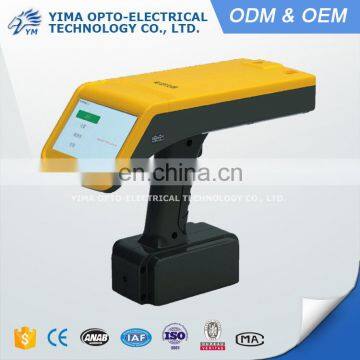

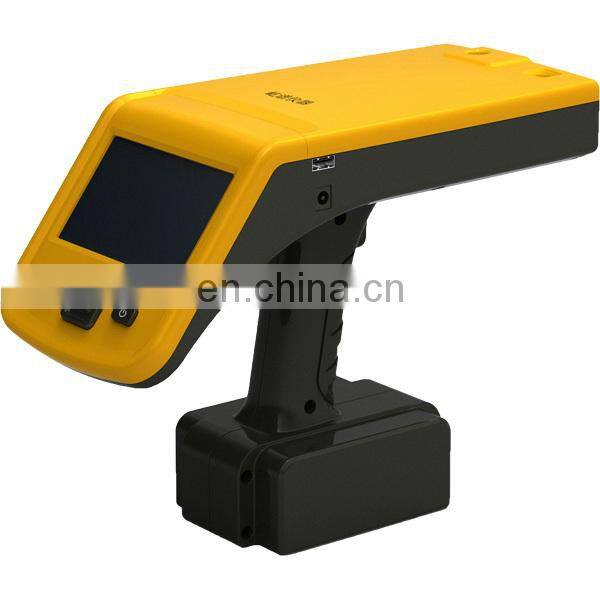

RAM-785 Handheld Raman Spectrograph

Product Introduction
RAM-785 is a state-of-the-art handheld Raman instrument for nondestructive identification and verification of materials, excipients, intermediates, & finished products. Compact and agile, RAM-785 can be used by non-technical users to rapidly identify samples in the lab, warehouse, loading dock or field, helping to eliminate quarantine areas and expedite materials through the manufacturing lifecycle. Utilizing Raman technology, non-contact analysis can be performed through transparent containers, all while maintaining the volume and integrity of the sample.

Features

1. Less than 1.7 kilograms of weight, in accordance with ergonomic handheld design, can be left or right hand operated, very simple and convenient, can be used in any place, time detection;

2. Needn’t sample preparation or other special processing or use any other material, laser can penetrate the commonly used containers (glass, plastic) and packaging, greatly reducing the time and cost of conventional sampling and laboratory analysis.

3. Simply press a button, the shortest in the 100ms will be reliable identification results;

4. 500:1 high signal to noise ratio of CCD detector;

5. Plug and play with high-speed USB 2.0 interface, can be connected to the USB flash disk and PC software;

6. Built in rechargeable lithium battery, can last more than 5 hours field test.

Technical parameters

Optical system: 1200 strip /mm holographic grating; numerical aperture = 0.33; 18 mm working distance

Laser wavelength: 785nm

Spectral measurement range: 250-2500cm-1

Spectral resolution: 7-10.5cm-1 (pulse half peak width)

Laser output power: 30-490mW automatic regulation

Detector: CCD 2048 x 64 array, TEC two stage refrigeration

Displayer:  4.3 inch color touch screen

Integral time: Auto mode (at least 100ms)

Measuring accessory: Small bottle adapter, tablet adapters

Data output format: EXCEL, JPG, CSV, BMP

Data output:  high speed USB 2

Operating mode: non-contact scanning, small bottle sampling

Language: Chinese and English

Working temperature: -10 ~ +50℃

Weight: < 1.7Kg

Battery: 7.4V rechargeable lithium battery which can last >5hrs, 25℃

External power: 100-240VAC 50/60Hz
