SJFM 1100-2000B high speed Non woven coating lamination machine
Brief introduction:
Sjfm series environmental protectional extrusion lamination machine, set unwinding and rewinding, drying, surface treatment,extrusion, compounding, trimming, suction side as a whole;it features with web guiding, corona treatment, line speed, meter counting; automatic tension control, temperature control and other advanced technology. Running speed 100-150m/min.
Application: paper pe coating, woven PP sack lamination, non woven lamination and so on.
It is widely used in disposable paper cup,oil and water proof paper bag, fast food boxes, pp woven bag, non woven vertical bag, baby diaper packing bag, cement bag, ground film, roof radiant barrier product and so on.
Features:

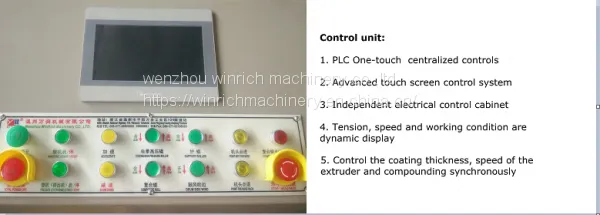

1.PLC man-machine interface centralized control, machine, electricity, gas, integrated design.
2 high efficient corona device
3. Easy and quick filter screen exchange

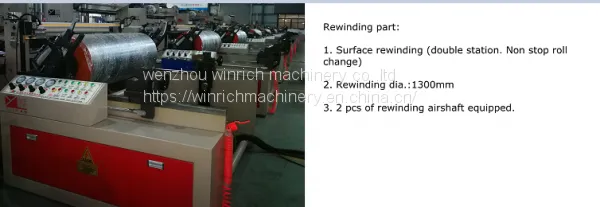

4.Double station unwinding and rewinding, automatic non stop roll exchange
Form of production:
Single-layer lamination / three layer compounding/ multilayer compounding (one-time seven layers available, increase the extrusion unit)
Technical parameters:
| Model | SJFM-800 | SJFM-1100 | SJFM-1300 | SJFM-1600 | SJFM-1800 |
| lenght of die lip | 900mm | 1200mm | 1400mm | 1800mm | 2000mm |
| width of finished product | 400-700mm | 500-1000mm | 600-1250mm | 800-1500mm | 900-1700mm |
| max,compounding speed | 100-150m/min | 100-150m/min | 100-150m/min | 100-150m/min | 100-150m/min |
| thickness of shower film | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm |
| L/D ratio for screw | Φ80mm×30 | Φ95mm×30 | Φ105mm×30 | Φ120mm×32 | Φ140mm×32 |
| diameter for roll unwinding and rewinding | Φ1300mm | Φ1300mm | Φ1300mm | Φ1300mm | Φ1300mm |
| overall size | 9600×8000×3200mm | 9600×8300×3200mm | 9600×8600×3200mm | 9600×9000×3200mm | 9600×9300×3200mm |
| power | 60kw | 70kw | 80kw | 100kw | 130kw |
| compounding/glossy cool roll | Φ510mm | Φ510mm | Φ510mm | Φ510mm | Φ610mm |
| applicable for base material | PAPER/Aluminum foil/non woven fabric/BOPP/BOPET/BOPA/CPP/CPE) | ||||
Details:
