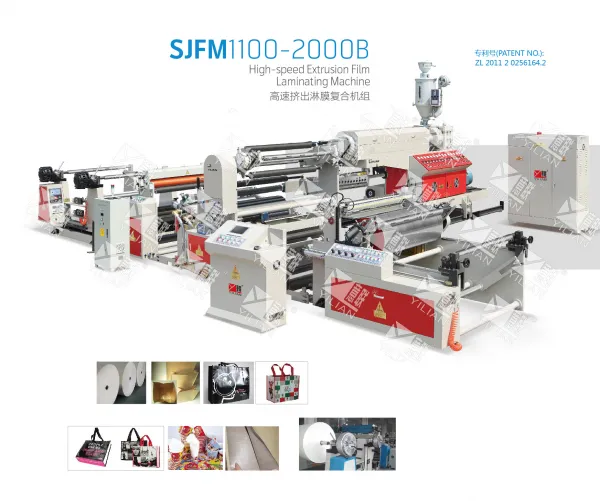

Help CenterYilian Brand SJFM1300B Paper PE/Bopet/Cpp/Bopp/Alu Film Extrusion Lamination Machine
Related Products
-
Yilian Brand SJFM1100-2000B Film Extrusion Coating Lamination MachineUS$ 70000 - 100000MOQ: 1 Set -
Yilian Brand SJFM1100-2000B Non Woven Fabric Gold/Aluminium Foil Extrusion Lamination MachineUS$ 76000 - 100000MOQ: 1 Set
-
Yilian Brand SJFM1100-2000B Metalised Film Extrusion Lamination MachineUS$ 76000 - 100000MOQ: 1 Set
-
Yilian Brand SJFM1100-2000 Kraft Paper PE Extrusion Coating MachineUS$ 76000 - 100000MOQ: 1 Set
-
Yilian Brand Automatic High Speed WSFM1100-2000 Paper pe Film Extrusion Coating Machine Auto SplicerUS$ 180000 - 300000MOQ: 1 Set
Brief introduction:
This series of equipment in paper, plastic film, textile cloth or aluminum foil as the substrate, by casting, a compound into two layers, three layers, the jumbo Jumbo + paper sandwich composite)
Application range:

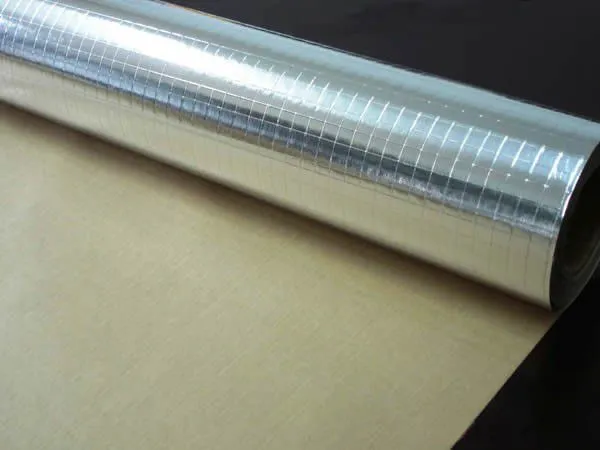

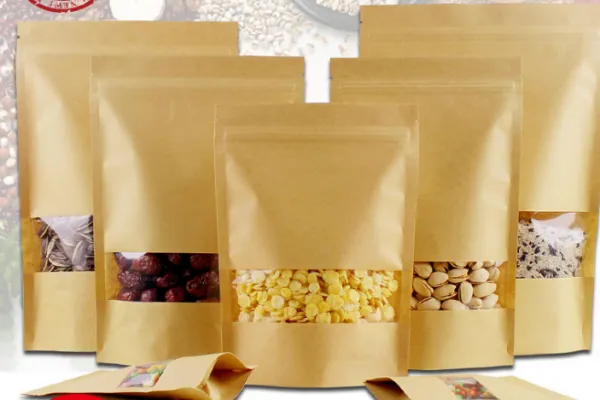

Paper plastic composite plastic composite aluminum-plastic composite non-woven aluminum paper plastic composite adhesive series
Featrues:
1.Double work-station bearing feeding frame， non-stop feeding system.
2.Automatic Tension controller
3.PLC One-touch centralized controls，advanced touch screen control system.the extruder can cooperate compounding body speed automatically, to reach setted the film thickness.
4. high efficient corona device, hydraulic for the network, are the first domestic, can effectively enhance the product peel strength.
5. Three roller compounding mechanism, back pressing roller makes compounding roller to force evenly and compounding firmly.
6. Peeling off silicone roller: compounding products peels off from cooling roller easily.
7. Compounding and filling regulating roller can overcome defects such as uneven of film thickness.
8. Disc slitting knife edge-cutter: sharp knife edge
9. High pressure blower sucks scrap edge quickly.
10. Car type extrusion machine
11.T- type die head
12.Automatic hydraulic filter screen exchange ( Our Factory patent)
13.Surface rewinding (Double work-station ,Non-stopping)
14.Embossing function is avaliable
Technical parameters:
| Model | SJFM-800 | SJFM-1100 | SJFM-1300 | SJFM-1600 | SJFM-1800 |
| lenght of die lip | 900mm | 1200mm | 1400mm | 1800mm | 2000mm |
| width of finished product | 400-700mm | 500-1000mm | 600-1250mm | 800-1500mm | 900-1700mm |
| max,compounding speed | 100-150m/min | 100-150m/min | 100-150m/min | 100-150m/min | 100-150m/min |
| thickness of shower film | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm | 0.01-0.1mm |
| L/D ratio for screw | Φ80mm×30 | Φ95mm×30 | Φ105mm×30 | Φ120mm×32 | Φ140mm×32 |
| diameter for roll unwinding and rewinding | Φ1300mm | Φ1300mm | Φ1300mm | Φ1300mm | Φ1300mm |
| overall size | 9600×8000×3200mm | 9600×8300×3200mm | 9600×8600×3200mm | 9600×9000×3200mm | 9600×9300×3200mm |
| power | 60kw | 70kw | 80kw | 100kw | 130kw |
| compounding/glossy cool roll | Φ510mm | Φ510mm | Φ510mm | Φ510mm | Φ610mm |
| applicable for base material | BOPP/BOPET/BOPA/CPP/CPE)/PAPER/Aluminum foil/non woven fabric | ||||
