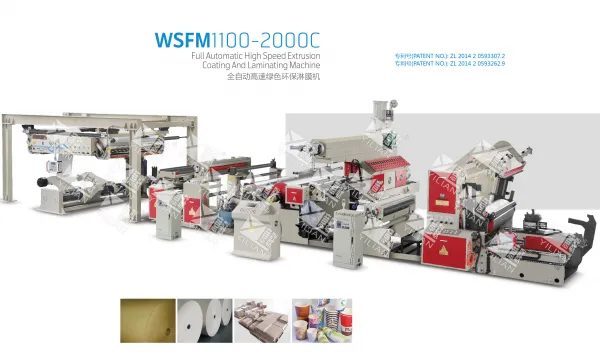

China Yilian Brand Auto Splicer High Speed PLA Extrusion Coating Machine
US$ 180000 - 300000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
YILIAN
Place of Origin:
China
Model Number:
WSFM1100-2000
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
90 days
Related Products
-
China Supply SJFM-1300A High Speed Extrusion Paper pe Coating MachineUS$ 70000 - 100000MOQ: 1 Set -
China Supply SJFM 1300B High Speed Nonwoven Fabric Extrusion Laminating MachineUS$ 70000 - 100000MOQ: 1 Set
-
China Supply WSFM C Type Automatic Environmental Protection Paper PE Coating MachineUS$ 180000 - 300000MOQ: 1 Set
-
Yilian Brand SJFM1100-2000A PE Film Extrusion Coating MachineUS$ 76000 - 100000MOQ: 1 Set
-
China Supply Automatic Nonwoven Fabric PP Film Extrusion Lamination MachineUS$ 70000 - 100000MOQ: 1 Set
Brand Name
YILIAN
Place of Origin
China
Model Number
WSFM1100-2000
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Weight
29T
Dimension(L*W*H)
13100*9600*3600MM
Voltage
380V
Power
about 180Kw
Application
Other, Beverage, Food, Medical, PACKAGE
Condition
New
Automatic Grade
Automatic
Driven Type
Electric
Packaging Type
Other, EXPORT PACKING
Application:
For producing Single Side PLA / PE Coated Paper Cup Paper,Paper Bowl Paper,Instant Noddle Bowl Paper etc.
Main features:
1.PLC man-machine interface control, the design of mechanical electrical integration.
2.High precision and imported die head
3.High speed and efficient mixing equipment (Italy technology).
4.Automatic hydraulic filter screen exchange
5.Equipped with dry type composite system, with the function of dry composite machine
6.And can be matched with a single extruder, Twin Extruder, extruder, multilayer coextrusion
The main technical parameters:
| machinery specification | 1100/90mm,1300/100mm ,1500/105mm, 1800/110mm |
| speed of coating film | 150m/min,180m/min,200m/min |
| suitable coating resin film | LDPE,PP, EVA ,EAA,PLA |
| suitable base material | BOPP,BOPET,BOPA,CPP,CPE,PAPER,AL |
| width of coating film | 1100mm,1300mm,1500mm,1800mm |
| thickness of coating film | 0.012~0.1mm |
| inaccuracy thickness of coating film | ≦±5% |
| complex cooling roller | Φ500mm,Φ600mm,Φ700mm |
| screw specification | （L/D）Φ90：33,Φ100：33,Φ105:33；Φ110:33 |
| main unwinding diameter | Φ800-1500mm |
| diameter of auxiliary unwinding | Φ500mm |
| diameter of rewinding | Φ800-1700mm |
