Help CenterChina Supply SJFM-1300A High Speed Extrusion Paper pe Coating Machine
Related Products
-
China Supply SJFM 1300B High Speed Nonwoven Fabric Extrusion Laminating MachineUS$ 70000 - 100000MOQ: 1 Set -
China Supply WSFM C Type Automatic Environmental Protection Paper PE Coating MachineUS$ 180000 - 300000MOQ: 1 Set
-
Yilian Brand SJFM1100-2000A PE Film Extrusion Coating MachineUS$ 76000 - 100000MOQ: 1 Set
-
China Supply Automatic Nonwoven Fabric PP Film Extrusion Lamination MachineUS$ 70000 - 100000MOQ: 1 Set
-
Yilian Brand SJFM1100-2000B Non Woven Fabric Extrusion Coating MachineUS$ 76000 - 100000MOQ: 1 Set
Main features:

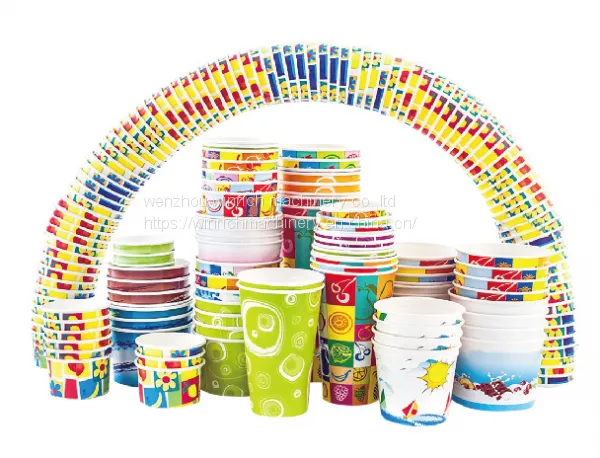

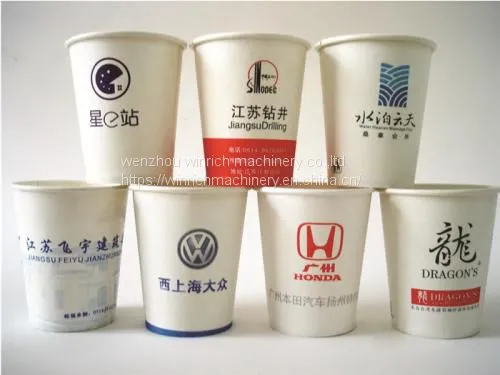

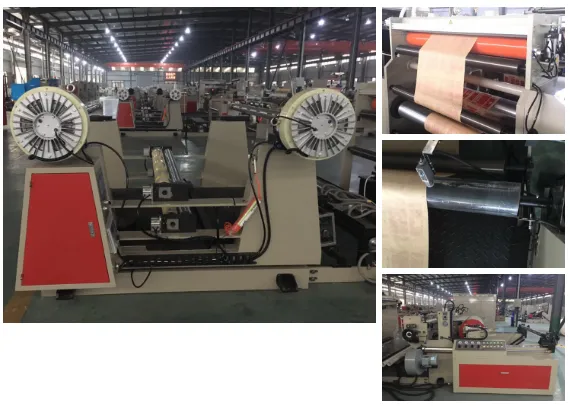

This series green laminator, paper plastic composite units (no adhesive composition unit), is integrated with off-loading, drying, surface treatment, composite, cutting edge, discharge and rewinding as a whole; adapts photoelectric web guiding, corona treatment, line speed, feed length digital display; automatic constant tensile force, temperature self-control and advanced technology. widely used in paper packing field,such as paper cup,paper bowel, snack plate, paper bag, release paper and so on

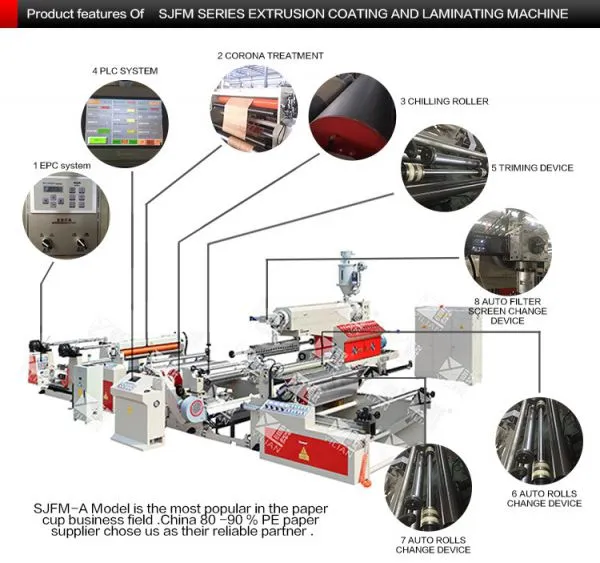

Features:
1.PLC man-machine interface centralized control, machine, electricity, gas, integrated design.
2.Car type extrusion machine
3. T- type die head
4. Automatic hydraulic changes filter ( Our Factory patent)
5.Tension controller: you can input diameter and thickness parameter of base material based on replaced material, along with the rotated-loops changing, tension is decreased proportionally to achieve automatic tension control.
6.Speed of compounding roller and rewinding roller synchronize tension automatically.
7.Compounding roller is droved by one vector frequency electric motor, can adjust the speed quickly ,to making different thickness of the film which we need, Ensure the thickness uniformity the same.
Main technical parameters:
1.Applicable coating film resin: Coating grade like LDPE 、PP 、EVA、EAA etc .
2.Based material: paper (35~425g/m2 )
3.Max working speed: 100~150m/min
4.Max width of coating film: 1200mm
5.Thickness of coating film: 0.01–0.11mm
6.Inaccuracy thickness of coating film: ±6%
7.Setting range of Auto-tension : 10-200kg/entire width (constant tension)
8.Max extrusion: 200kg/h
9.Compound cooling roller: Φ500×1300mm (can choose)
10. Total power：about 80kw
11.Max rewinding diameter: Φ1300mm
12. Inside diameter of base material: Φ76
13.Machine total weight: about 15000kg
14.Overall dimension:9600mm×8000×3250mm（L×W×H）
15.Machine color: can choose
