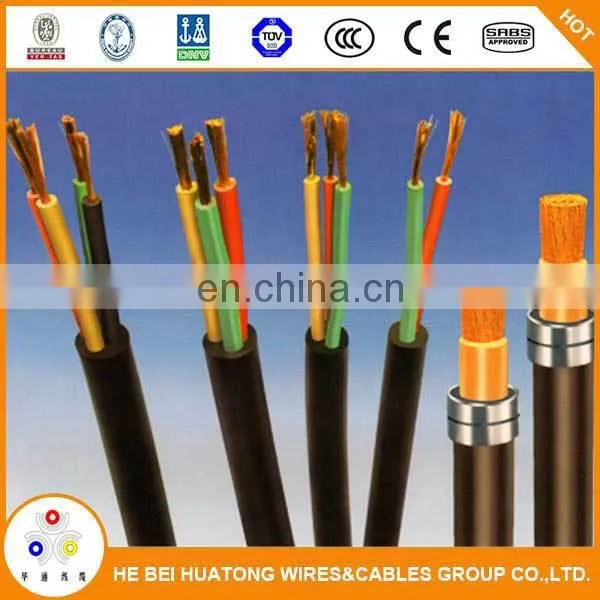

Rubber sheathed flexible cable wire:
Working temperature
H07RN-F model rated voltage U0/U IS 450/750V
H05RN-F model rated voltage U0/U IS 300/500V
H05RR-F model rated voltage U0/U IS 300/500V
Long time allow working temperature of wire core cant be higher than 60
Rubber copper wire Working Conditions
1.Rated voltage :300/500(h05rn-f type),450/750V(h07rn-f type)
2.The long-term working temperature of conductor should be no longer than 65°C
3.W type cables have weather-proof character and certain grease-proof character and are suitable for outdoor usage and the occasion with greasy dirt.
4. ZR type cables have fire-retardant character.
Characteristics
1. Rated power-frequency voltage U0/U: 450/750V, 300/500V and 200/200V.
2. Maximum permitted operating temperature of conductor is 60°C.
3. Permitted lowest working temperature is -35°C.
4. Cables can be used at places contaminated by mineral oil and fuel oil.
Specification
HAR Code |
IEC |
Description |
Voltage Design |
Cores |
H05RR-F |
60245IEC 53(YZ)/YZ |
Ordinary rubber sheathed cord |
300/500V |
2~6 |
H05RN-F |
60245 IEC 57(YZW)/YZW |
Ordinary polychloroprene or other equivalent synthetic elastomer sheathed cord |
300/500V |
2~6 |
H07RN-F |
60245 IEC 66(YCW)/YC |
Heavy polychloroprene or other equivalent synthetic elastomer sheathed flexible cable |
450/750V |
1~5, 3+1/3+2/4+1 |
H01N2-D |
60245 IEC 81(YH) |
Rubber sheathed arc-welding electrode cable |
100/100V |
10-120 |
|
60245 IEC 82(YHF) |
polychloroprene or other equivalent synthetic elastomer sheathed arc-welding electrode cable |
100/100V |
10-120 |
HeBei huatong wires&cables Group Co.,ltd.It was established in 1993, we are JV with Furukawa(Japanese
company) for rubber serious cables and JV with Riken(Japanese company) for elevator cables. Besides these,our submersible oil pump cable and shipboard cable are very influential in domestic, and, the traditional cables are also produced such as PVC powercables, XLPE power cables, ABC cables, wires, control cables, screened cables,communication cables, conductors.We areOEM for many USA, Europen, Australia cable company,70% of our products are exported, most customers are from developed countries. We got ISO,UL,TUV,KEMA,CE and many other certifications.
We are one of China top rank cable&wire manufacturer.Our products meet standards of GB, IEC,DIN ASTM, JIS, NF, AS/NZS CSA GOST and so on. At thte same time, we have obtained ISO9001,ISO14001,OHSAS18001, UL,CE,KEMA, TUV, Bureau Veritas, Lloyd,IEC,GL,SA,NK,KR certificates.
(1)When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freightcharge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files, the samples will be ready for delivery in 3-7days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account or prepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.

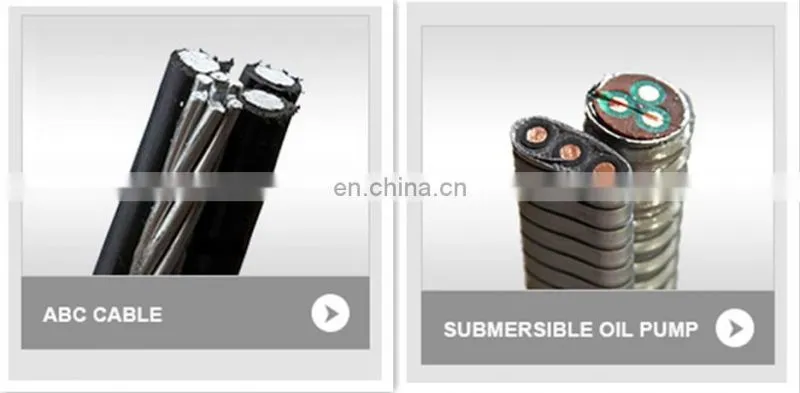

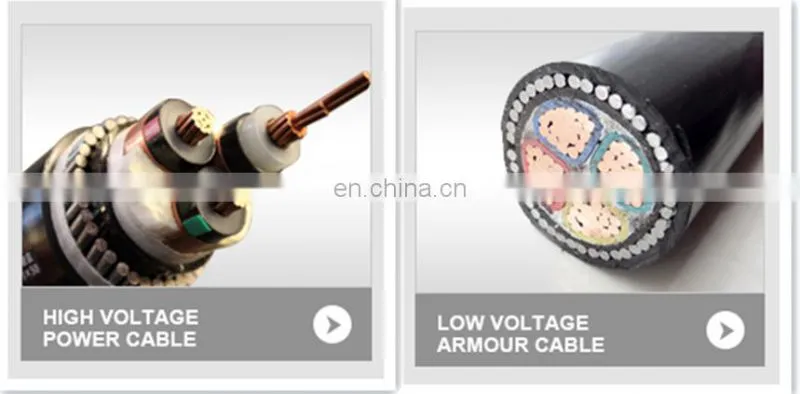

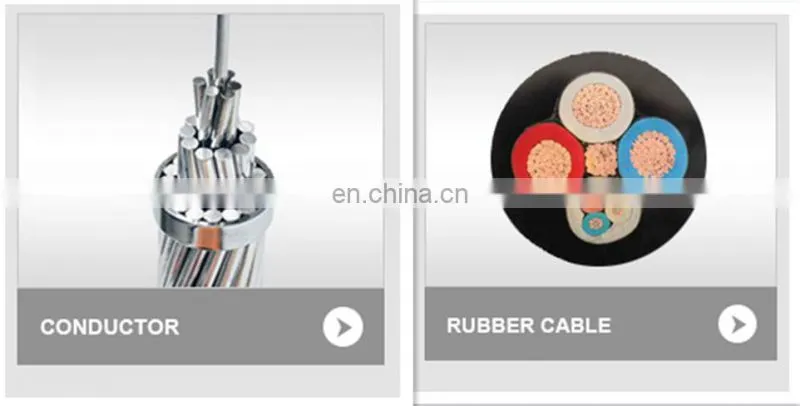

(5)What cables does Hua Tong manufature?XLPE insulating power cables with voltage up to 35kV, PVC insulated power cables, mining cable, general rubber sheathed flexible cable, Submersible oil pump cable, locomotive vehicle cables, elevator cable,shipboard cable, nuclear station cables, prefabricated branch cables, ABC cables, control cables, special cables, the motor winding connecting conductors, aluminum stranded conductor (AAC) and aluminum stranded steel-core reinforced conductor (ACSR) so on.
(6). Which payment terms do you accept?
A: The payment term varies with different price level and total value of every contract.
The following are most common terms:
a.100% TT advance for small amount orders.
b.30% T/T down payment, balance payment negotiable accordingly.
