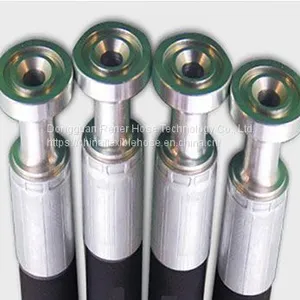

Help Center5000 Super Artery Wire Braid Hydraulic Rubber Hose
Related Products
-
6000 3C Super Artery Braid And Spiral Artery Wire Spiral Hydraulic Rubber HoseUS$ 1 - 2MOQ: 10 Meters -
Mining Heavy-Calibre Wire Spiral Hydraulic Rubber HoseUS$ 1 - 2MOQ: 10 Meters
-
Super High Temperature Heat Oil Resisting Wire Braided Rubber HoseUS$ 1 - 2MOQ: 10 Meters
-
SAE 100R6 HYDRAULIC RUBBER HOSEUS$ 1 - 2MOQ: 10 Meters
-
4000 SUPER ARTERY WIRE BRAID HYDRAULIC RUBBER HOSEUS$ 1 - 2MOQ: 10 Meters
TUBE:inner tube of oil 、weather and abrasion resistant synthetic
REINFORCEMENT:four or six plies of steel wire Wrapped in alternating directions
COVER:an oil、abrasion and weather resistant synthetic rubber
WORKING PRESSURE:49Mpa(Max)
TEMPERATURE RANGE:-40℃~+255℃（-40°F~+125°F）
IMPLEMENTATION STANDARDS:LT5000 18752 2BC
Good flexibility; specially compounded for handling,biodegradable hydraulic oil;two layers of woven tubes no less than 600 thousand times pulses; Weather resistant for more than 5 years.
Products are mainly used in Mine hydraulic support 、oil exploitation、mining machinery、 engineering machinery、hoisting and conveying machinery、vessel、metallurgical engineering、Agricultural machinery、injection machine、and all kinds of mechanization and automation hydraulic system。transport the base of petroleum (such as mineral oil、solubility oil、fuel oil、hydraulic fluid、lubrication oil) and water fluid(such as oil water emulsion). The product has high pulse performance , the number of pulses is not less than one million times.
Parameter:
5000 Super Artery Wire Braid Hydraulic Rubber Hose Parameter
Specifications:
| SIZE | SIZE | internal diameter I .D | Working pressure Max .W.P | Burst pressure Min. B.P | Temperature Range | Bending radius Min. B.R |
| DASH | IN | mm | Mpa | Mpa | ℃ | mm |
| SA-2BC | 1/4 | 6.4 | 45 | 180 | -40℃~+125℃ | 45 |
| SA-2BC | 5/16 | 7.9 | 42 | 168 | -40℃~+125℃ | 60 |
| SA-2BC | 3/8 | 9.5 | 39 | 156 | -40℃~+125℃ | 70 |
| SA-2BC | 1/2 | 12.7 | 35 | 140 | -40℃~+125℃ | 90 |
| SA-2BC | 5/8 | 15.9 | 29 | 116 | -40℃~+125℃ | 130 |
| SA-2BC | 3/4 | 19.0 | 28 | 112 | -40℃~+125℃ | 160 |
| SA-2BC | 1 | 25.4 | 21 | 80 | -40℃~+125℃ | 210 |
| SA-2BC | 1/4 | 6.4 | 45 | 180 | -40℃~+125℃ | 45 |
| SA-2BC | 5/16 | 7.9 | 42 | 168 | -40℃~+125℃ | 60 |
More information:
